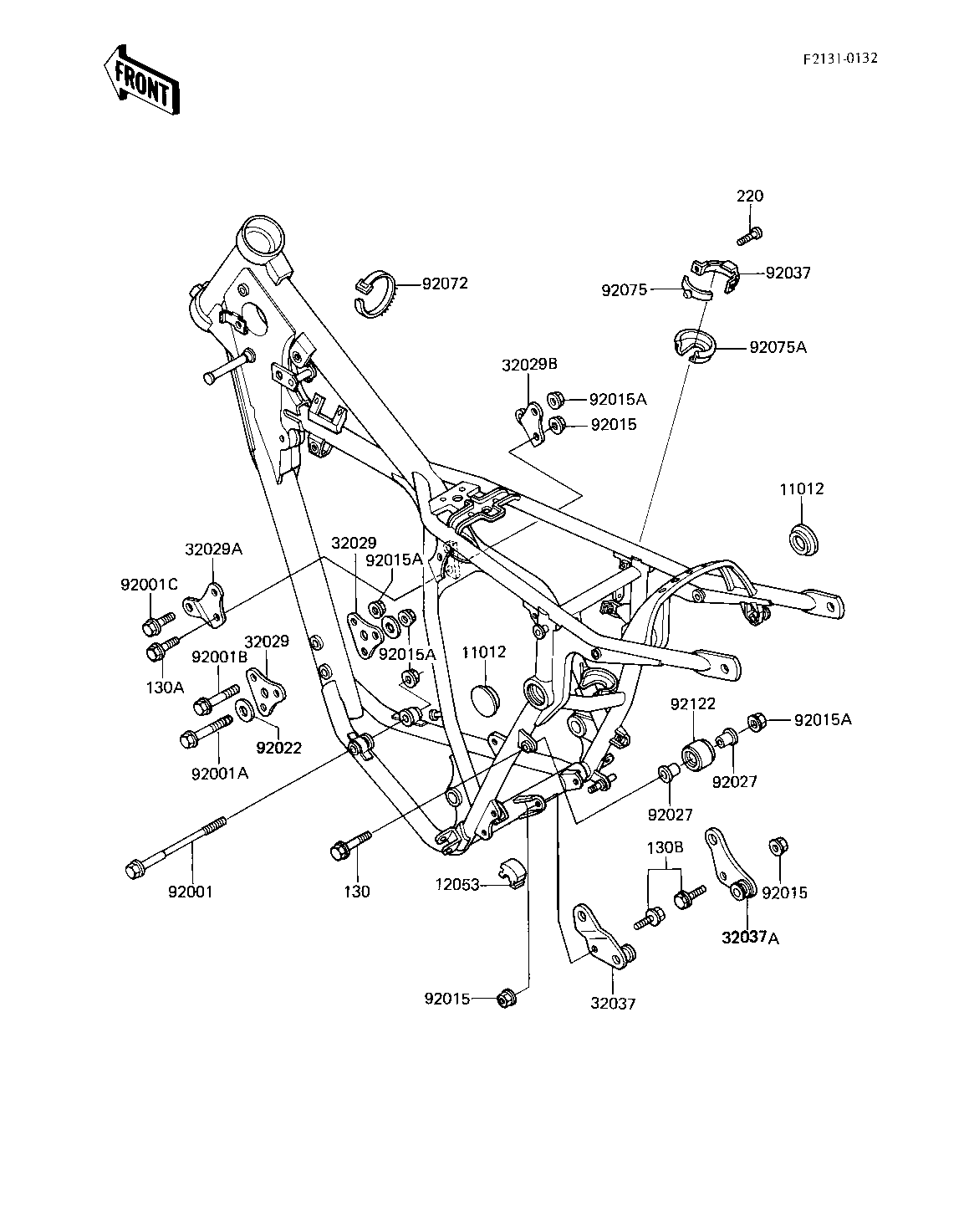

1983 KX250 - FRAME FITTINGS ('83 KX250-C1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,UNI TRAK | 11012 | 11012-1211 | 2 | ||
| GUIDE-CHAIN,FR,LWR | 12053 | 12053-1088 | 1 | ||
| BRACKET-ENGINE,FR | 32029 | 32029-1228 | 2 | ||
| BRACKET-ENGINE,UPP,LH | 32029A | 32029-1229 | 1 | ||
| BRACKET-ENGINE,UPP,RH | 32029B | 32029-1230 | 1 | ||
| BRACKET-SHOCKABSORBER | 32037 | 32037-1230 | 1 | ||
| BRACKET-SHOCKABSORBER | 32037A | 32037-1231 | 1 | ||
| BOLT,8X140 | 92001 | 92002-1059 | 1 | ||
| BOLT,FLANGED,8X80,BLA | 92001A | 92001-1640 | 1 | ||
| BOLT,FLANGED,8X75,BLA | 92001B | 92001-1642 | 2 | ||
| BOLT,FLANGED,10X50 | 92001 | 92001-1692 | 1 | ||
| NUT,10MM | 92015 | 92015-1415 | 3 | ||
| NUT-8MM | 92015A | 92015-1143 | 7 | ||
| WASHER,8.5X20X1.6 | 92022 | 92022-1561 | 2 | ||
| COLLAR,CHAIN GUIDE | 92027 | 92027-1383 | 2 | ||
| CLAMP,RESERVE TANK,UP | 92037 | 92037-1375 | 1 | ||
| BAND,SHORT | 92072 | 92072-030 | 3 | ||
| DAMPER,RESERVE TANK,U | 92075 | 92075-1431 | 1 | ||
| DAMPER,RESERVE TANK,L | 92075A | 92075-1432 | 1 | ||
| ROLLER,CHAIN GUIDE | 92122 | 92122-1021 | 1 | ||
| BOLT,FLANGED,8X50 | 130 | 130G0850 | 1 | ||
| BOLT-FLANGED,8X30 | 130A | 130P0830 | 2 | ||
| BOLT-FLANGED,10X20 | 130B | 130P1020 | 2 | ||
| SCREW PAN HEAD 6X12 | 220 | 220B0612 | 1 |
| CAP,UNI TRAK | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,FR,LWR | |
| REF # | 12053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE,FR | |
| REF # | 32029 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE,UPP,LH | |
| REF # | 32029A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE,UPP,RH | |
| REF # | 32029B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-SHOCKABSORBER | |
| REF # | 32037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-SHOCKABSORBER | |
| REF # | 32037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X140 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X80,BLA | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X75,BLA | |
| REF # | 92001B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X50 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| NUT-8MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.5X20X1.6 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,CHAIN GUIDE | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,RESERVE TANK,UP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,SHORT | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER,RESERVE TANK,U | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,RESERVE TANK,L | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROLLER,CHAIN GUIDE | |
| REF # | 92122 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X50 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X30 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X20 | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X12 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
