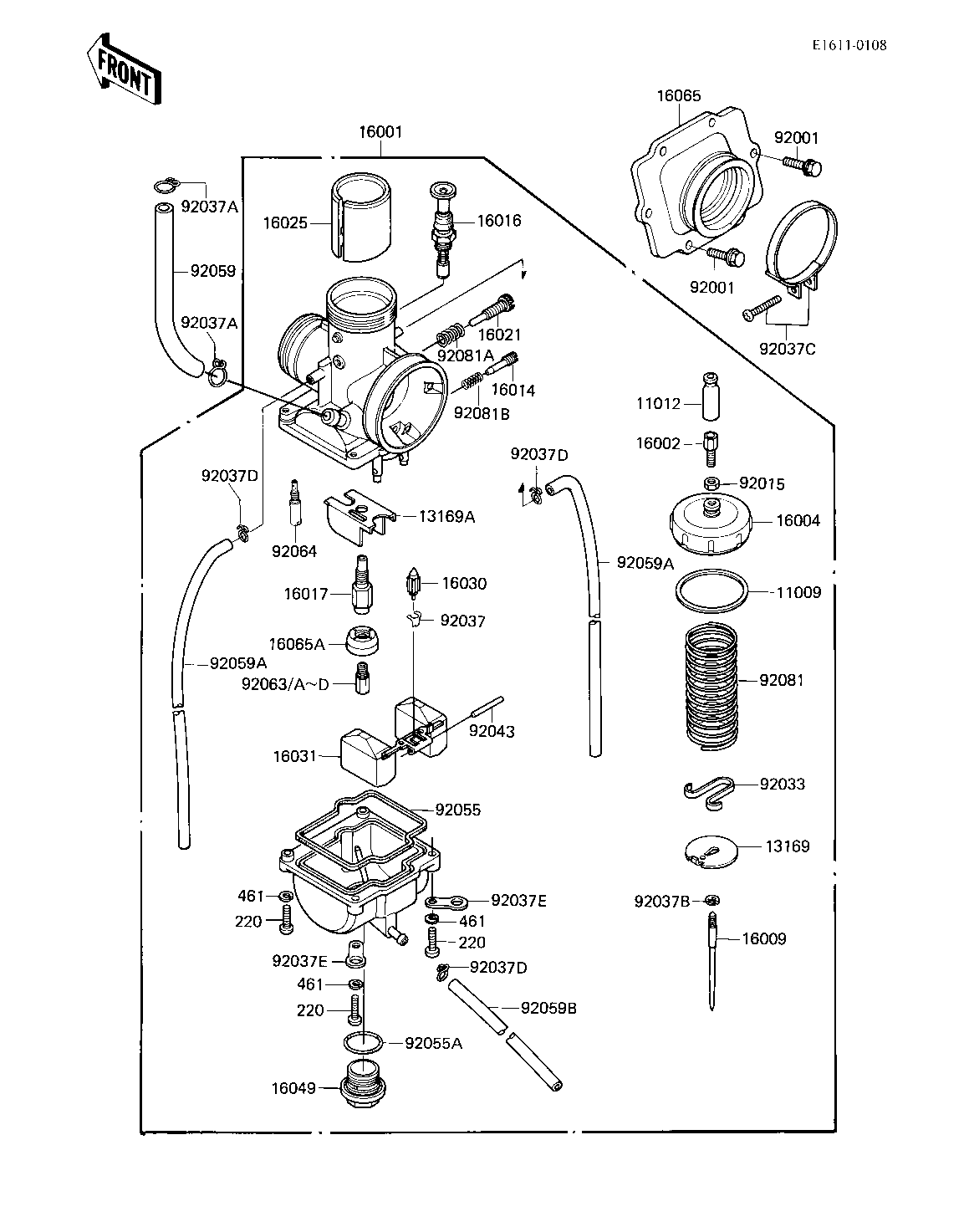

1983 KX250 - CARBURETOR ('83 KX250-C1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CHAMBER CAP 11009 11009-1337 1
CAP,CABLE ADJUSTER 11012 11012-1293 1
PLATE,THROTTLE VALVE 13169 13169-1609 1
PLATE,FLOAT CHAMBER 13169A 13169-1610 1
CARBURETOR 16001 16001-1678 1
ADJUSTER-CABLE 16002 16002-1015 1
CAP-CHAMBER,MIXING 16004 16004-1017 1
NEEDLE-JET,N13A 16009 16009-1139 1
SCREW-PILOT AIR 16014 16014-1033 1
PLUNGER,STARTER 16016 16016-1028 1
JET-NEEDLE 16017 16017-1126 1
SCREW-THROTTLE STOP 16021 16021-1045 1
VALVE-THROTTLE,CA3.5 16025 16025-1079 1
VALVE-FLOAT,3.6 16030 16030-1028 1
FLOAT 16031 16031-1022 1
COVER-MAIN JET 16049 16049-1007 1
HOLDER-CARBURETOR 16065 16065-1048 1
HOLDER-CARBURETOR,JET 16065A 16065-1074 1
BOLT-FLANGED-SMALL 92001 132G0620 6
NUT,CABLE ADJUST LOCK 92015 92015-1252 1
RING-SNAP,THROTTLE VA 92033 92033-1096 1
CLIP,FLOAT VALVE 92037 16044-007 1
CLAMP,CARB CONECT HOS 92037A 92037-056 2
CIRCLIP,JET NEEDLE 92037B 92037-1039 1
CLAMP,CARBURETOR HOLD 92037C 92037-1313 1
CLAMP,TUBE 92037D 92037-1396 3
CLAMP,HOSE 92037E 92037-1969 2
PIN,FLOAT 92043 92043-1148 1
RING-O,FLOAT CHAMBER 92055 92055-1166 1
RING-O,MAIN JET COVER 92055A 92055-1167 1
TUBE,FUEL,6.5X11.5 92059 92059-1252 1
TUBE,4X7X400 92059A 92059-1284 2
TUBE,3.5X6.5X270 92059B 92059-1285 1
JET-MAIN,#155 92063 92063-1256 1 (OPTION)
JET-MAIN,#158 92063A 92063-1257 1 (OPTION)
JET-MAIN,#160 92063B 92063-1258 1
JET-MAIN,#162 92063C 92063-1259 1 (OPTION)
JET-MAIN,#165 92063D 92063-1260 1 (OPTION)
JET-PILOT,#60 92064 92064-1063 1
SPRING,THROTTLE VALVE 92081 92081-1553 1
SPRING,STOP SCREW 92081A 92081-1554 1
SPRING,ADJUST SCREW 92081B 92081-1555 1
SCREW PAN HEAD 4X16 220 220B0416 4
WASHER SPRING 4MM 461 461F0400 4
