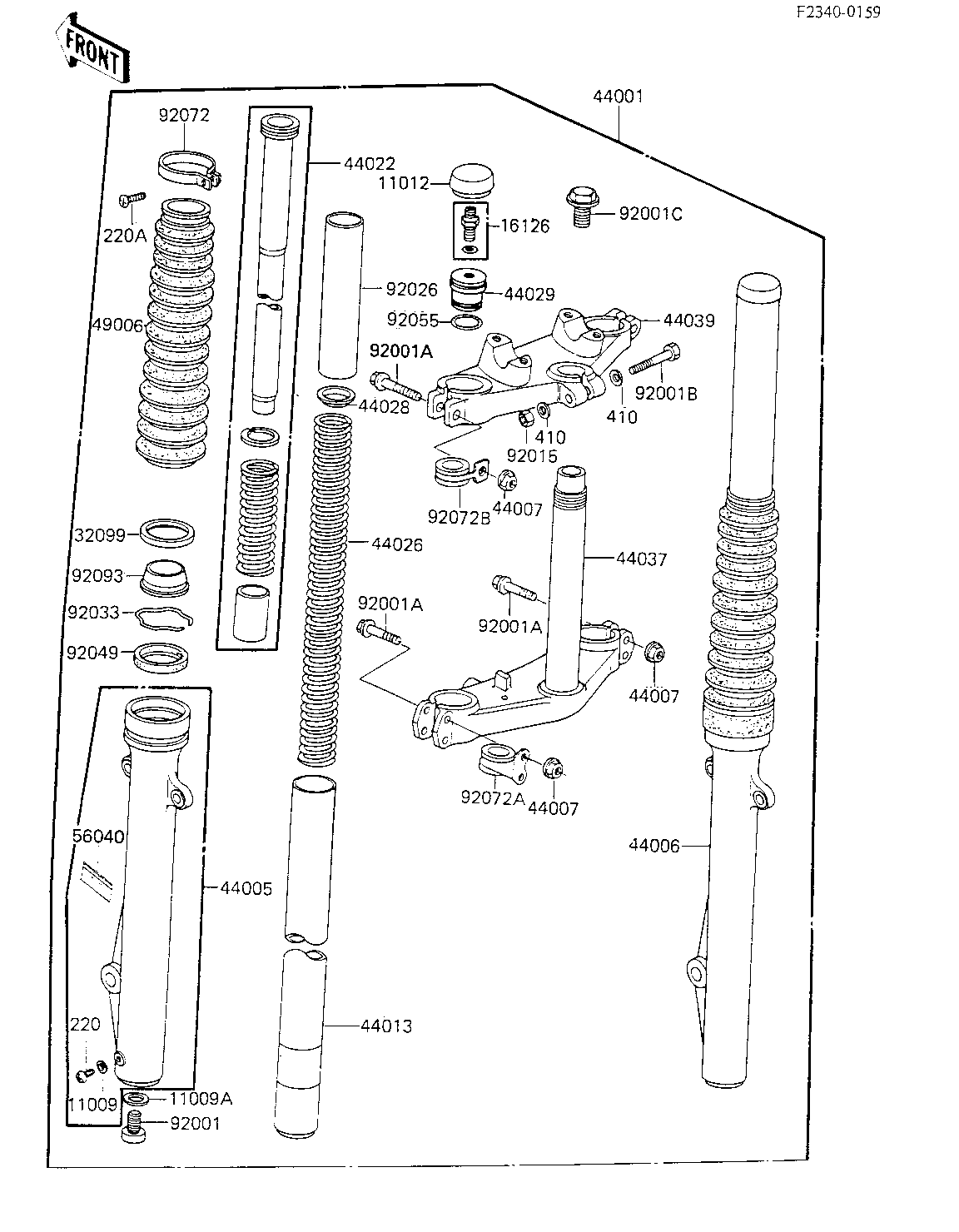

1984 KLR250 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET FORK DRAIN PLG 11009 44045-002 2
GASKET,FORK CYLINDER 11009A 44045-057 2
CAP,FORK TOP 11012 11012-1239 2
VALVE AIR 16126 16126-1052 2
CASE,DUST SHIELD 32099 32099-1012 2
FORK-FRONT 44001 44001-1434 1
TUBE,LH,FORK OUTER 44005 44005-1026 1
TUBE,RH,FORK OUTER 44006 44006-1026 1
NUT,8M/M 44007 44007-1002 6
PIPE-FORK INNER 44013 44013-1117 2
CYLINDER-FORK 44022 44022-1022 2
SPRING-FRONT FORK 44026 44026-1195 2
GUIDE,FORK SPRING 44028 44028-033 2
SEAT-FORK SPRING 44029 44029-1037 2
STEM,STEERING 44037 44037-1023 1
HEAD,STEERING STEM 44039 44039-1019 1
BOOTS,FORK 49006 49006-1009 2
LABEL-WARNING 56040 56040-1002 1
BOLT-FORK CYLINDER 92001 44041-040 2
BOLT,FLANGED,8X45 92001A 92001-1205 6
BOLT,8X50 92001B 92002-1168 1
BOLT,FLANGED,14X20 92001C 92001-1316 1
NUT,LOCK,8MM 92015 92015-1124 1
SPACER,FORK SPRING 92026 92026-1012 2
RING-SNAP,FORK OIL 92033 92033-1100 2
OIL,SEAL,FORK OUTER 92049 92049-1009 2
"O" RING,FORK TOP 92055 92055-1012 2
BAND,BOOTS 92072 92072-1008 2
CLAMP,CABLE 92072A 92072-1027 1
CLAMP,CABLE 92072B 92072-1045 1
DUST SHIELD,FORK OUT 92093 92093-1036 2
SCREW PAN HEAD 4X8 220 220B0408 2
SCREW-PAN-CROS 220A 220B0420 2
WASHER PLAIN 8MM 410 410B0800 2
