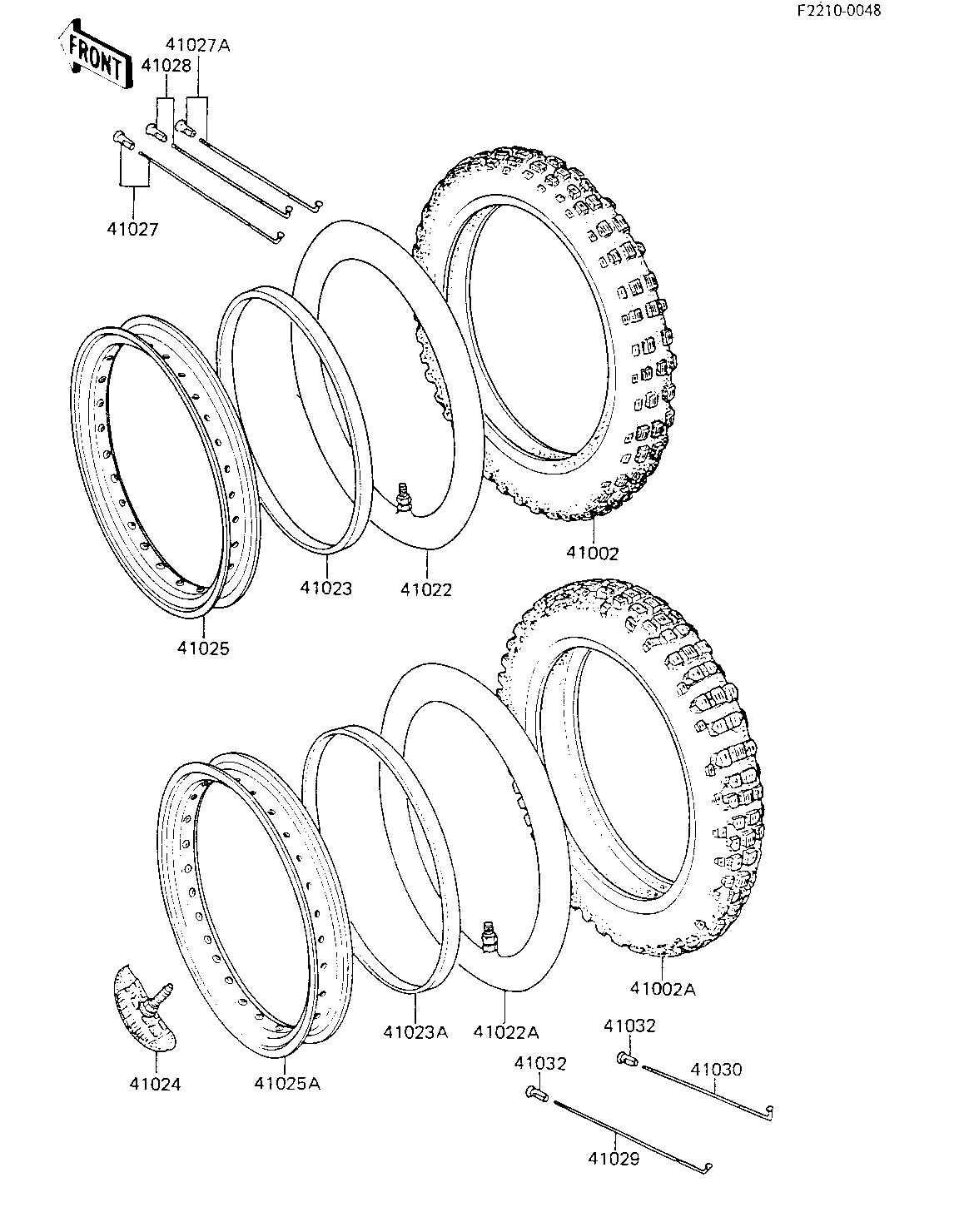

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE 300-21 K150 F | 41002 | 41002-1106 | 1 | ||
| TIRE 460-17 K150 R | 41002A | 41002-1107 | 1 | ||
| TUBE,2.75/3.70-21 | 41022 | 41022-1021 | 1 | ||
| TUBE 425/460-17 | 41022A | 41022-1029 | 1 | ||
| BAND,RIM,3.00-21 | 41023 | 41023-1001 | 1 | ||
| BAND-RIM | 41023A | 41023-1059 | 1 | ||
| PROTECTOR-BEAD,2.15B | 41024 | 41024-008 | 1 | ||
| RIM,FRONT,1.60X21 | 41025 | 41025-1012 | 1 | ||
| RIM,REAR,2.15-17 | 41025A | 41025-1016 | 1 | ||
| SPOKE-ASY,FR INNER R | 41027 | 41027-5021 | 18 | ||
| SPOKE-ASY,FR INNER L | 41027A | 41027-5022 | 9 | ||
| SPOKE-ASY,FR OUTER L | 41028 | 41028-5019 | 9 | ||
| SPOKE,REAR INNER | 41029 | 41029-1033 | 18 | ||
| SPOKE,REAR.OUTER | 41030 | 41030-1028 | 18 | ||
| NIPPLE-SPOKE | 41032 | 41032-1057 | 36 |
| TIRE 300-21 K150 F | |
| REF # | 41002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TIRE 460-17 K150 R | |
| REF # | 41002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,2.75/3.70-21 | |
| REF # | 41022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE 425/460-17 | |
| REF # | 41022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,RIM,3.00-21 | |
| REF # | 41023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND-RIM | |
| REF # | 41023A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PROTECTOR-BEAD,2.15B | |
| REF # | 41024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,FRONT,1.60X21 | |
| REF # | 41025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,REAR,2.15-17 | |
| REF # | 41025A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPOKE-ASY,FR INNER R | |
| REF # | 41027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| SPOKE-ASY,FR INNER L | |
| REF # | 41027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| SPOKE-ASY,FR OUTER L | |
| REF # | 41028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| SPOKE,REAR INNER | |
| REF # | 41029 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| SPOKE,REAR.OUTER | |
| REF # | 41030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| NIPPLE-SPOKE | |
| REF # | 41032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 36 |
| DESTINATION | |
| REMARKS | |
