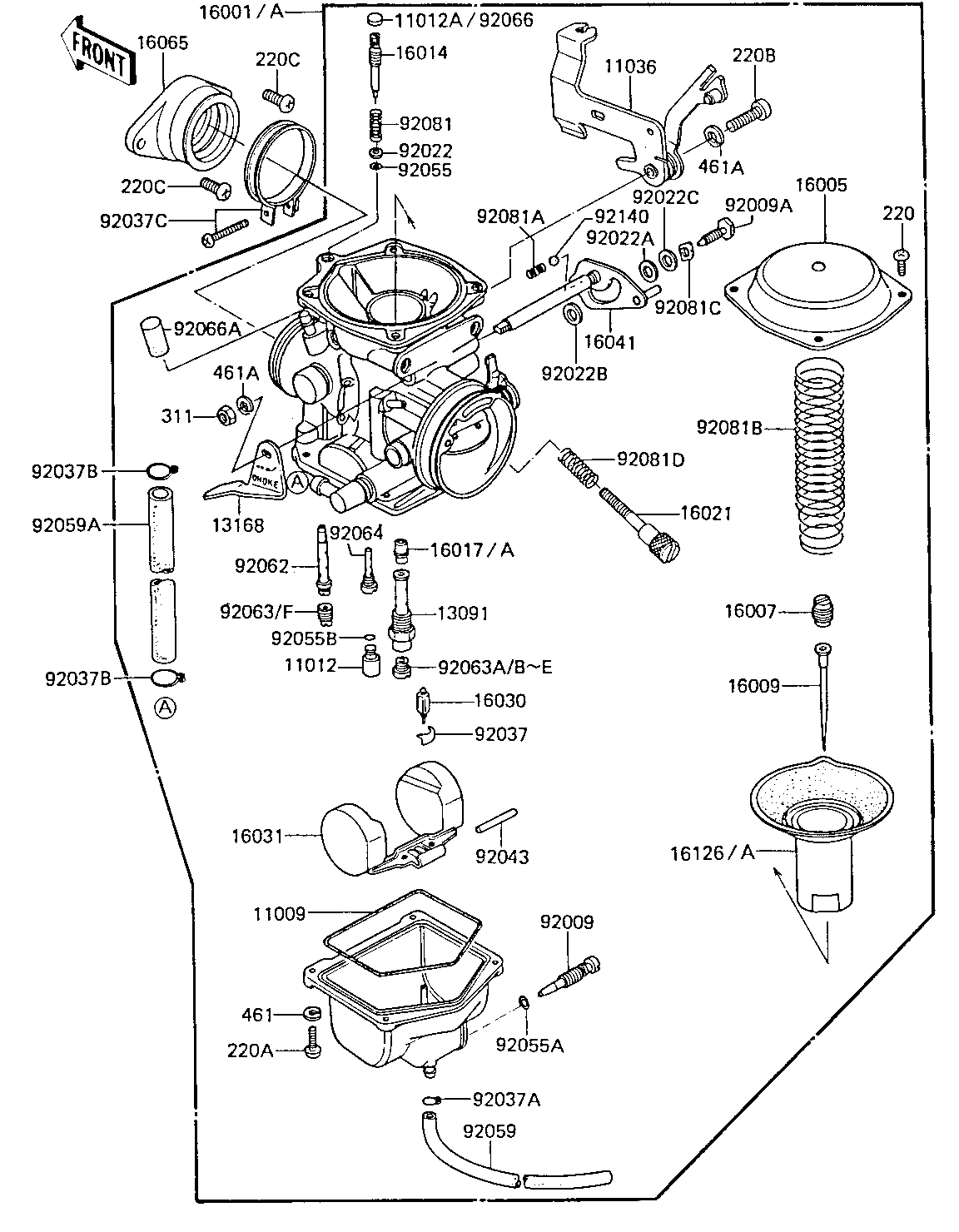

1984 KLR250 - CARBURETOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
"O" RING,FLOAT BALL 11009 16019-024 1
CAP,POLYESTER 11012 11012-1128 1
CAP,PILOT AIR SCREW (Canada) 11012A 11012-1289 1 CN
BRACKET-A,THROTTLE CA 11036 11036-1933 1
HOLDER,NEEDLE JET 13091 13091-1050 1
LEVER,CHOKE 13168 13168-1065 1
CARBURETOR (Canada) 16001 16001-1779 1 CN
TOP,MIXING CHAMBER 16005 16005-1012 1
SCREW,NEEDLE SET 16007 16007-1022 1
NEEDLE-JET,NO1B 16009 16009-1138 1
SCREW,PILOT ADJUST 16014 16014-1011 1
UNAVAILABLE IN PRICE BOOK 16017A 16017-1061 1 CN
SCREW,THROTTLE STOP 16021 16021-1031 1
FLOAT VALVE 16030 16030-1007 1
FLOAT 16031 16031-1001 1
SHAFT-CARBURETOR,CHOK 16041 16041-1030 1
HOLDER-CARBURETOR 16065 16065-1063 1
VALVE 16126A 16126-1057 1 CN
SCREW,DRAIN 92009 92009-1095 1
SCREW,LINK SHAFT 92009A 92009-1183 1
WASHER,PLAIN 92022 92022-1003 1
WASHER,6.1X11X0.8,POL 92022A 92022-1199 1
WASHER,6.4X9.4X0.8,PL 92022B 92022-1200 1
WASHER,6.5X11X1.2,STL 92022C 92022-1207 1
CLIP,FLOAT VALVE 92037 16044-007 1
CLAMP,TUBE,OVERFLOW 92037A 92037-1142 1
CLAMP,TUBE 92037B 92037-1682 2
CLAMP,53M/M 92037C 92037-201 1
FLOAT PIN 92043 92043-1002 1
O RING,PILOT ADJ 92055 92055-1002 1
"O" RING,DRAIN SCREW 92055A 92055-1053 2
"O" RING 92055B 92055-1088 1
HOSE,FUEL OVERFLOW 92059 92059-1046 1
TUBE,5.3X10.5X140 92059A 92059-1267 1
NOZZLE,MAIN 92062 92062-1001 1
JET-MAIN,#118 92063A 92063-1071 1 (RACING USE ONLY)
JET-MAIN #110 92063B 92063-1114 1 (RACING USE ONLY)
JET-MAIN #108 92063C 92063-1116 1 (RACING USE ONLY)
JET-MAIN #112 92063D 92063-1117 1
JET-MAIN #115 92063E 92063-1118 1 (RACING USE ONLY)
JET-MAIN,PRI,#72 92063F 92063-1193 1 CN
PILOT JET,#35 92064 92064-1001 1
RUBBER PLUG 92066A 92068-006 1
SPRING,PIROT ADJ SCRW 92081 92081-1002 1
SPRING 92081A 92081-1249 1
SPRING 92081B 92081-1257 1
SPRING,WAVED WASHER 92081C 92081-1262 1
SPRING,STOP SCREW 92081D 92081-1545 1
BALL,STEEL,3/16" 92140 92140-1004 1
SCREW PAN HEAD 4X8 220 220B0408 4
SCREW-PAN-CRSOSS,4X12 220A 220B0412 4
SCREW PAN HEAD 5X20 220B 220B0520 1
SCREW PAN HEAD 6X14 220C 220B0614 2
NUT,5MM 311 311B0500 1
WASHER SPRING 4MM 461 461F0400 4
WASHER SPRING 5MM 164A 461F0500 2
