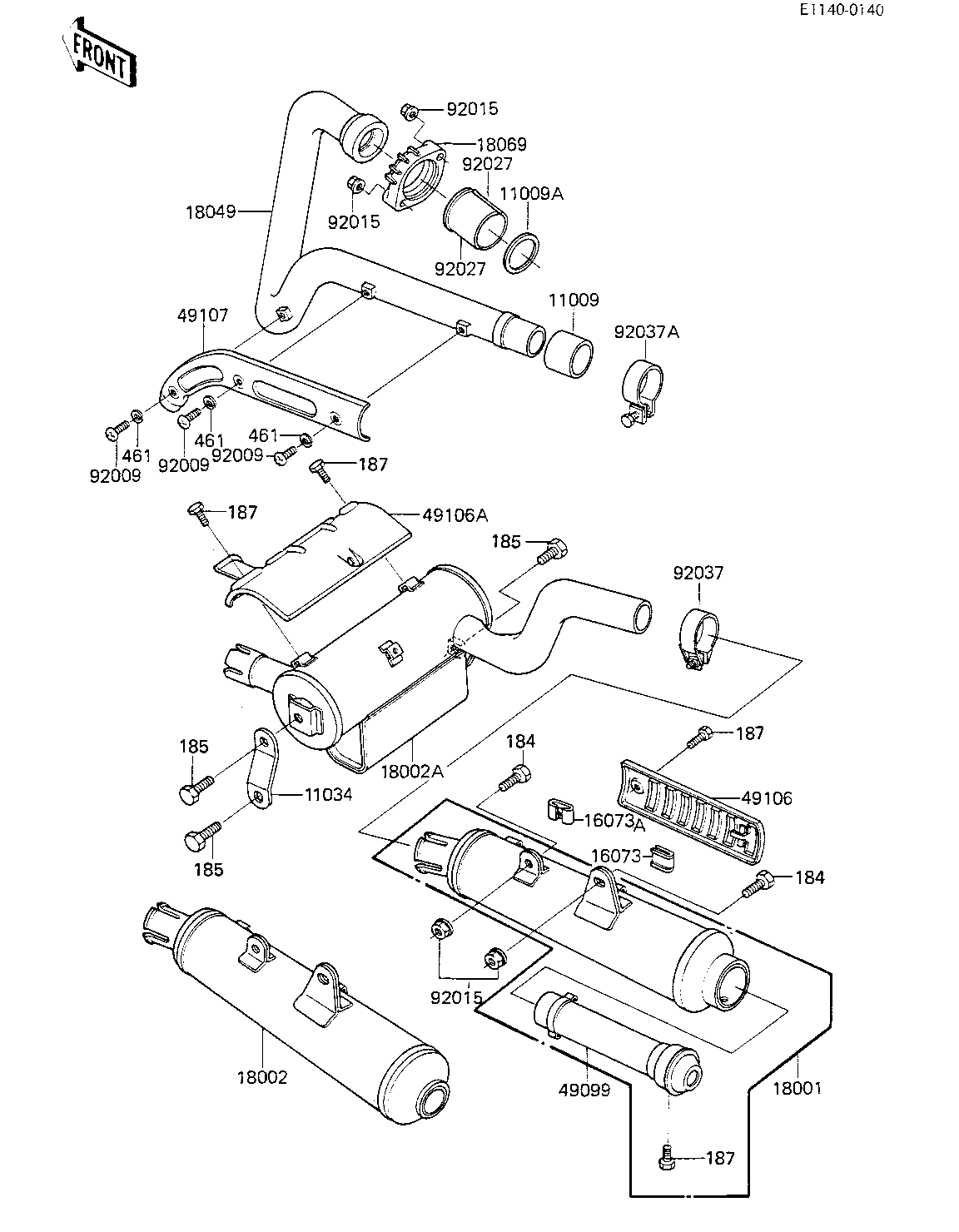

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,MUFFLER CONNEC | 11009 | 11060-1051 | 1 | ||
| GASKET,EXHAUST PIPE H | 11009A | 11009-1866 | 1 | ||
| BRACKET, | 11034 | 11034-1734 | 1 | ||
| INSULATOR | 16073 | 18065-007 | 1 | ||
| INSULATOR,HEAT | 16073A | 18065-010 | 1 | ||
| BODY-COMP-MUFFLER (Canada) | 18002 | 18002-1240 | 1 | CN | |
| BODY-COMP-MUFFLER | 18002A | 18002-1276 | 1 | ||
| PIPE-EXHAUST | 18049 | 18049-1184 | 1 | ||
| HOLDER EXHAUST PIPE | 18069 | 18069-1014 | 1 | ||
| COVER-MUFFLER | 49106 | 49106-1005 | 1 | ||
| COVER-MUFFLER (Canada) | 49106A | 49106-1006 | 1 | ||
| COVER-EXHAUST PIPE | 49107 | 49107-1005 | 1 | ||
| SCREW | 92009 | 92009-1054 | 3 | ||
| NUT-8MM | 92015 | 92015-1143 | 4 | ||
| COLLAR,EXHAUST PIPE | 92027 | 92027-264 | 2 | ||
| CLAMP,PIPE,35MM | 92037 | 92037-1223 | 1 | ||
| CLAMP,MUFFLER,37MM | 92037A | 92037-1243 | 1 | ||
| BOLT-UPSET-WP-SMALL | 184 | 184G0820 | 2 | ||
| BOLT-UPSET-WSP-SMALL (Canada) | 185 | 185G0816 | 3 | ||
| BOLT 6X12 | 187 | 187B0612 | 5 | CN | |
| WASHER SPRING 6MM | 461 | 461F0600 | 3 |
| GASKET,MUFFLER CONNEC | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST PIPE H | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET, | |
| REF # | 11034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR | |
| REF # | 16073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,HEAT | |
| REF # | 16073A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY-COMP-MUFFLER (Canada) | |
| REF # | 18002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| BODY-COMP-MUFFLER | |
| REF # | 18002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-EXHAUST | |
| REF # | 18049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER EXHAUST PIPE | |
| REF # | 18069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-MUFFLER | |
| REF # | 49106 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-MUFFLER (Canada) | |
| REF # | 49106A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE | |
| REF # | 49107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| NUT-8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,EXHAUST PIPE | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,PIPE,35MM | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,MUFFLER,37MM | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WP-SMALL | |
| REF # | 184 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WSP-SMALL (Canada) | |
| REF # | 185 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT 6X12 | |
| REF # | 187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | CN |
| WASHER SPRING 6MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
