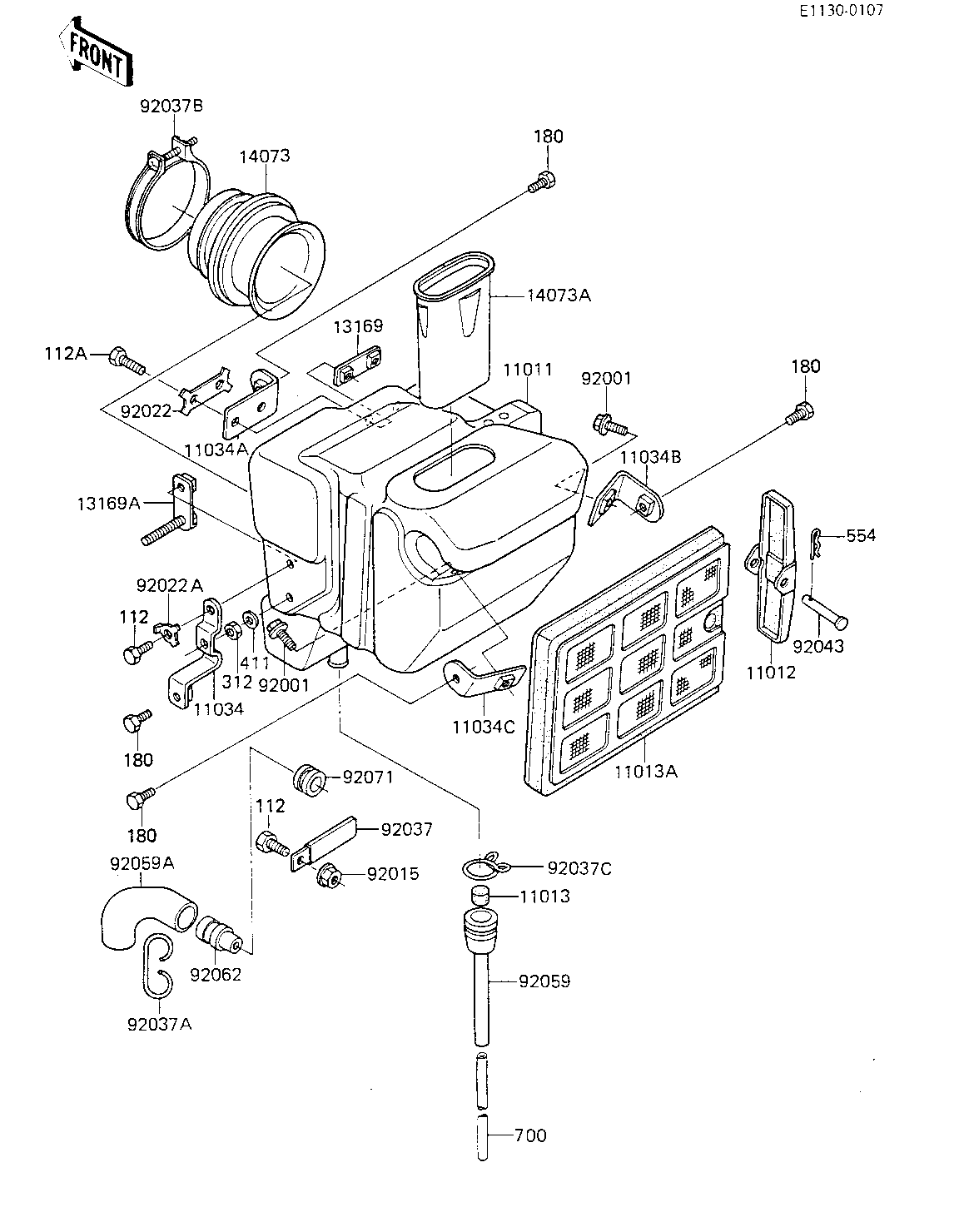

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE,AIR FILTER | 11011 | 11011-1109 | 1 | ||
| CAP,AIR FILTER | 11012 | 11012-1236 | 1 | ||
| ELEMENT,AIR CLNR | 11013 | 11013-060 | 1 | ||
| ELEMENT,AIR CLNR | 11013A | 11013-1018 | 1 | ||
| BRACKET,AIR FILTER | 11034 | 11034-1704 | 1 | ||
| BRACKET,AIR FILTER | 11034A | 11034-1705 | 1 | ||
| BRACKET,AIR FILTER | 11034B | 11034-1728 | 1 | ||
| BRACKET,AIR FILTER | 11034C | 11034-1728 | 1 | ||
| PLATE,AIR FILTER | 13169 | 13169-1234 | 1 | ||
| PLATE,AIR FILTER | 13169A | 13169-1606 | 1 | ||
| DUCT,AIR FILTER | 14073 | 14073-1025 | 1 | ||
| DUCT,AIR FILTER CASE | 14073A | 14073-1041 | 1 | ||
| BOLT,6X20 | 92001 | 92001-1460 | 2 | ||
| WASHER,LOCK | 92022 | 92022-1400 | 1 | ||
| WASHER,LOCK | 92022A | 92022-1403 | 1 | ||
| CLAMP,WIRING HARNESS | 92037 | 92037-1069 | 1 | ||
| CLAMP,MAGNETO LEAD | 92037A | 92037-1209 | 1 | ||
| CLAMP | 92037B | 92037-171 | 1 | ||
| CLAMP,BREATHER TUBE | 92037C | 92037-213 | 1 | ||
| PIN | 92043 | 92043-1113 | 1 | ||
| TUBE,AIR CLNR DRAIN | 92059 | 92059-1020 | 1 | ||
| HOSE,BREATHER | 92059A | 92059-1158 | 1 | ||
| NOZZLE,BREATHER TUBE | 92062 | 92062-1010 | 1 | ||
| GROMMET | 92071 | 92071-1010 | 1 | ||
| BOLT-UPSET,6X12 | 112 | 112G0612 | 2 | ||
| BOLT | 112A | 112B0618 | 2 | ||
| BOLT 6X12 | 180 | 180B0612 | 4 | ||
| NUT 6MM | 312 | 312B0600 | 1 | ||
| WASHER PLAIN 6MM | 411 | 411B0600 | 1 | ||
| PIN,SNAP | 554 | 554A0600 | 1 | ||
| TUBE,5X7X170 | 700 | 700S05170 | 1 |
