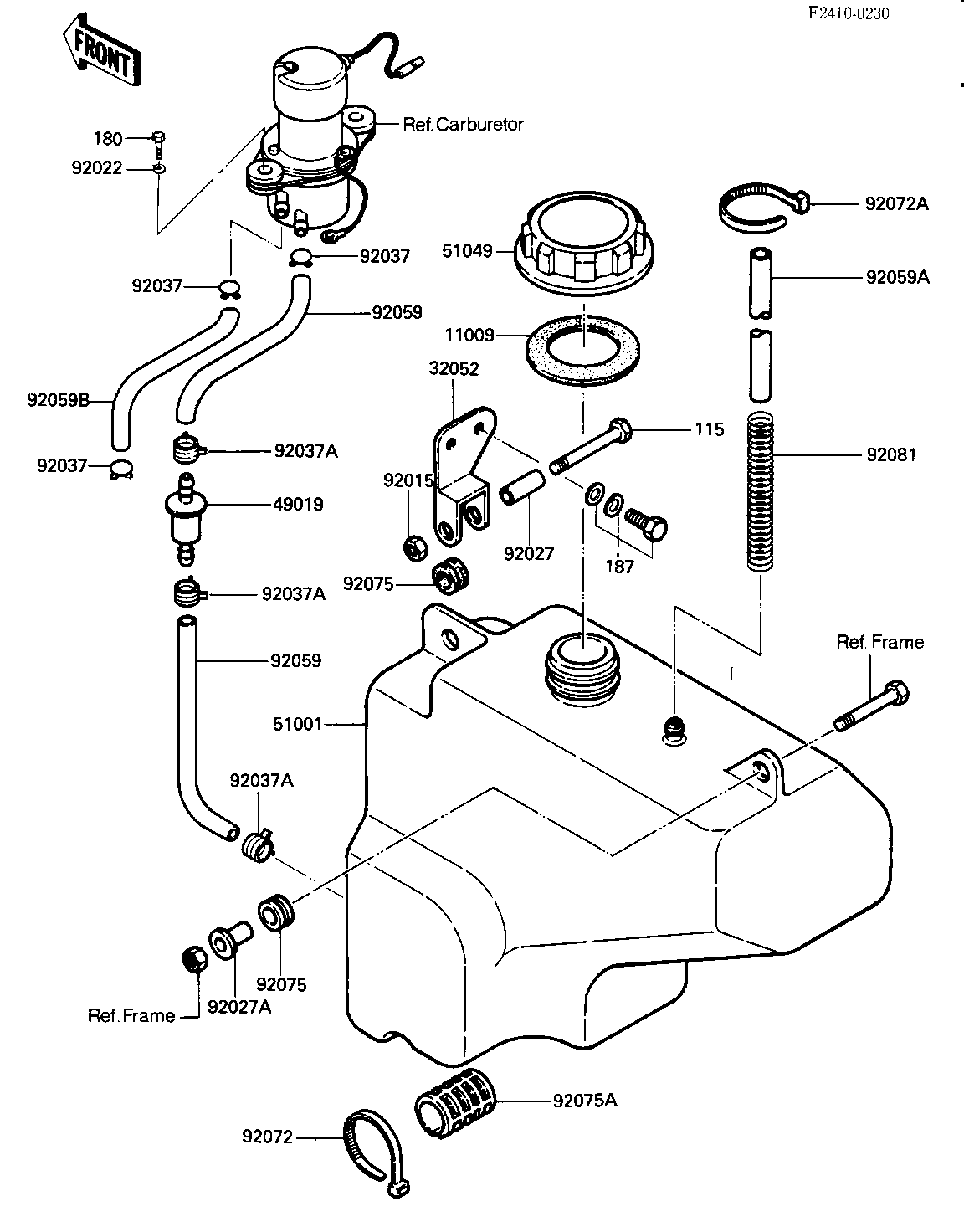

1984 KLT200 - FUEL TANK ('84 KLT200-C2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,FUEL TANK CAP | 11009 | 11009-3020 | 1 | ||
| BRACKET-TANK | 32052 | 32052-4010 | 1 | ||
| FILTER-FUEL | 49019 | 49019-4001 | 1 | ||
| TANK-FUEL,GRAY | 51001 | 51001-4003-8L | 1 | ||
| CAP,FUEL TANK | 51049 | 51049-3001 | 1 | ||
| NUT,LOCK,8MM | 92015 | 92015-1124 | 1 | ||
| WASHER,6.5X16X2 | 92022 | 92022-1565 | 2 | ||
| SPACER FUEL TANK MONT | 92027 | 92027-012 | 1 | ||
| COLLAR,FUEL TANK FITT | 92027A | 92027-1134 | 1 | ||
| CLAMP,TUBE | 92037 | 92037-1682 | 3 | ||
| CLAMP | 92037A | 92037-4009 | 3 | ||
| TUBE,5.3X10.5X85 | 92059 | 92059-4029 | 2 | ||
| TUBE | 92059A | 92059-4033 | 1 | ||
| TUBE,5.3X10.5X450 | 92059B | 92059-4030 | 1 | ||
| BAND | 92072 | 92072-3505 | 2 | ||
| BAND | 92072A | 92072-4004 | 3 | ||
| DAMPER RUBB TANK FRNT | 92075 | 92075-013 | 2 | ||
| DAMPER RUBBER | 92075A | 92075-084 | 2 | ||
| SPRING | 92081 | 92081-4011 | 1 | ||
| BOLT-SMALL-UPSET,8X30 | 115 | 115G0830 | 1 | ||
| BOLT-UPSET-WS,6X35 | 180 | 180B0635 | 2 | ||
| BOLT 6X12 | 187 | 187B0612 | 2 |
