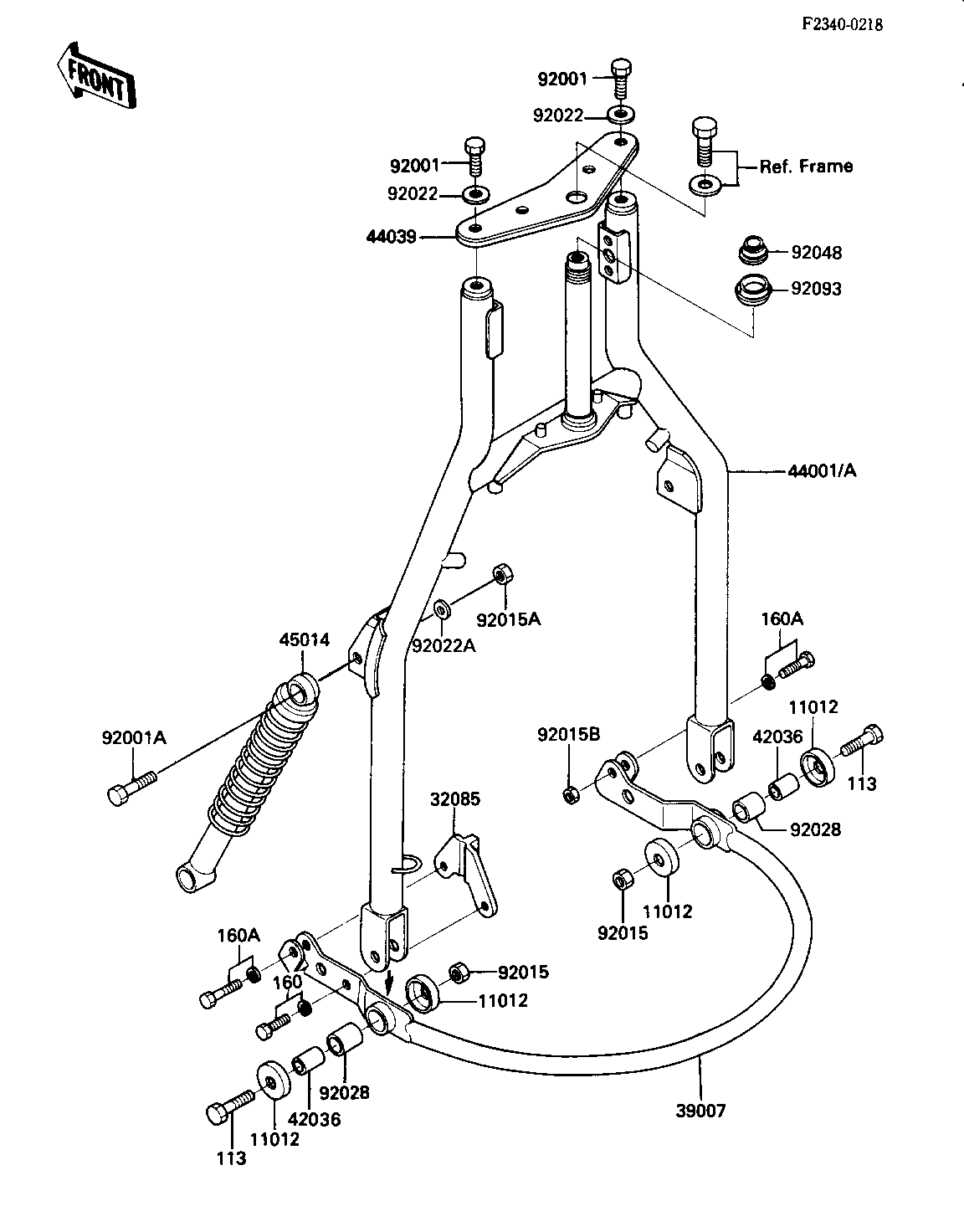

1984 KLT200 - FRONT FORK ('84 KLT200-C2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-4004 | 4 | ||
| STOPPER | 32085 | 32085-4006 | 1 | ||
| ARM-SUSP | 39007 | 39007-4003 | 1 | ||
| SLEEVE,14X20X25.3 | 42036 | 42036-4003 | 2 | ||
| FORK FRONT,EBONY | 44001 | 44001-4010-8G | 1 | ||
| FRONT FORK,RED | 44001A | 44001-4010-8R | 1 | ||
| HOLDER-FORK UPPER | 44039 | 44039-4003 | 1 | ||
| SHOCKABSORBER,BLACK | 45014 | 45014-4011-8G | 2 | ||
| BOLT | 92001 | 92001-1742 | 2 | ||
| BOLT,12X45 | 92001A | 92001-4018 | 2 | ||
| NUT-LOCK,14MM | 92015 | 92019-011 | 2 | ||
| NUT-LOCK,12MM | 92015A | 92019-009 | 2 | ||
| NUT,LOCK,10MM | 92015B | 92019-021 | 1 | ||
| WASHER | 92022 | 92022-1381 | 2 | ||
| WASHER,PLAIN,12 X 22 | 92022A | 92022-1057 | 2 | ||
| BUSHING,SWING ARM | 92028 | 92028-4001 | 2 | ||
| CONE STERNG BERG LOW | 92048 | 92047-010 | 1 | ||
| SEAL,STEERING STEM | 92093 | 44010-027 | 1 | ||
| BOLT HEX HEAD 14X55 | 113 | 113B1455 | 2 | ||
| BOLT-FINE-WS | 160 | 160B1020 | 1 | ||
| BOLT-FINE-WS | 160A | 160B1040 | 2 |
| CAP | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| STOPPER | |
| REF # | 32085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARM-SUSP | |
| REF # | 39007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,14X20X25.3 | |
| REF # | 42036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FORK FRONT,EBONY | |
| REF # | 44001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRONT FORK,RED | |
| REF # | 44001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-FORK UPPER | |
| REF # | 44039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHOCKABSORBER,BLACK | |
| REF # | 45014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,12X45 | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT-LOCK,14MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT-LOCK,12MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,10MM | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN,12 X 22 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUSHING,SWING ARM | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CONE STERNG BERG LOW | |
| REF # | 92048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL,STEERING STEM | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT HEX HEAD 14X55 | |
| REF # | 113 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FINE-WS | |
| REF # | 160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FINE-WS | |
| REF # | 160A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
