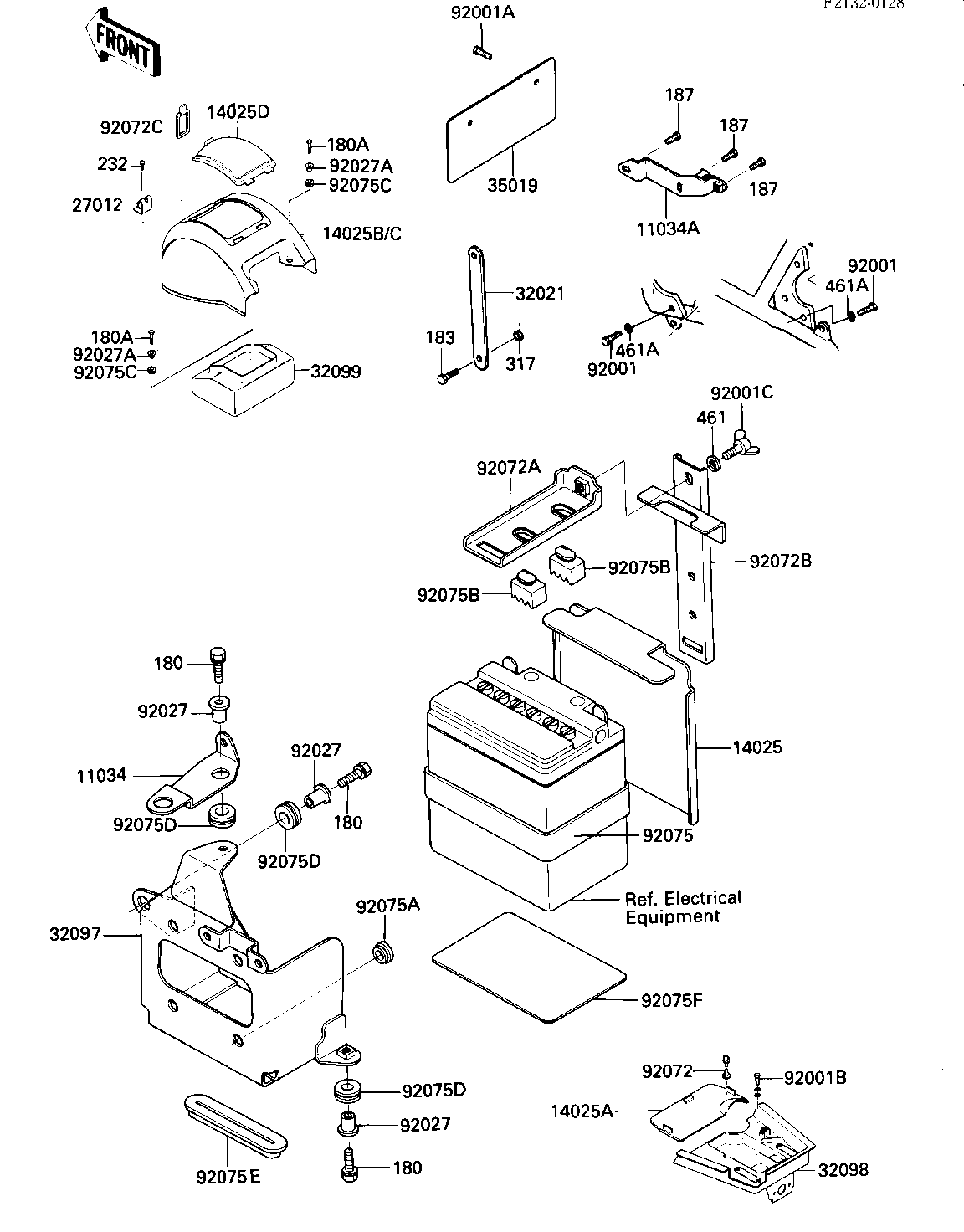

1984 KLT200 - BATTERY CASE/TOOL CASE ('84 KLT200-C2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,BLACK 11034 11034-4202 1
BRACKET,BLACK 11034A 11034-4203 1
COVER 14025 14025-4007 1
COVER-TOOL CASE 14025A 14025-4022 1
COVER,FR,BLACK 14025B 14025-4024-6D 1
COVER,FR,RED 14025C 14025-4024-8S 1
COVER,STORAGE 14025D 14025-4025 1
HOOK,BAND BLACK 27012 27012-4011 1
BRACKET,FRAME 32021 32021-4030 1
CASE-BATTERY 32097 32097-1104 1
CASE,TOOL 32098 32098-4002 1
CASE,TRUNK 32099 32099-4011 1
FLAP 35019 35019-4006 1
BOLT 92001 92001-160 6
BOLT,W/SP,6X16 92001A 92001-1763 2
BOLT,6X25 92001B 92002-1137 4
BOLT,CLNR ELEMENT 92001C 92003-199 1
COLLAR 92027 92027-1045 3
COLLAR 92027A 92027-194 4
BAND,HEAD LAMP 92072 92072-077 1
BAND 92072A 92072-1159 1
BAND,BATTERY 92072B 92072-1165 1
BAND 92072C 92072-4008 1
MAT-BATTERY SIDE 92075 32103-023 1
DAMPER RUBBER 92075A 92075-078 6
DAMPER,SEAT 92075B 92075-1007 2
DAMPER RUBBER 92075C 92075-112 4
DAMPER RUBBER 92075D 92075-277 3
DAMPER RUBBER 92075E 92075-280 1
DAMPER,BATTRY CASE 92075F 92075-4019 1
BOLT-UPSET-WS 180 180B0620 3
BOLT-UPSET-WS,6X25 180A 180B0625 4
BOLT-UPSET-WS-SMALL 183 183B0818 1
BOLT 6X14 187 187B0614 3
SCREW-PAN-WS+- 232 232B0614 1
NUT,8M/M 317 317B0800 1
WASHER SPRING 6MM 461 461F0600 1
WASHER SPRING 10MM 461A 461F1000 6
