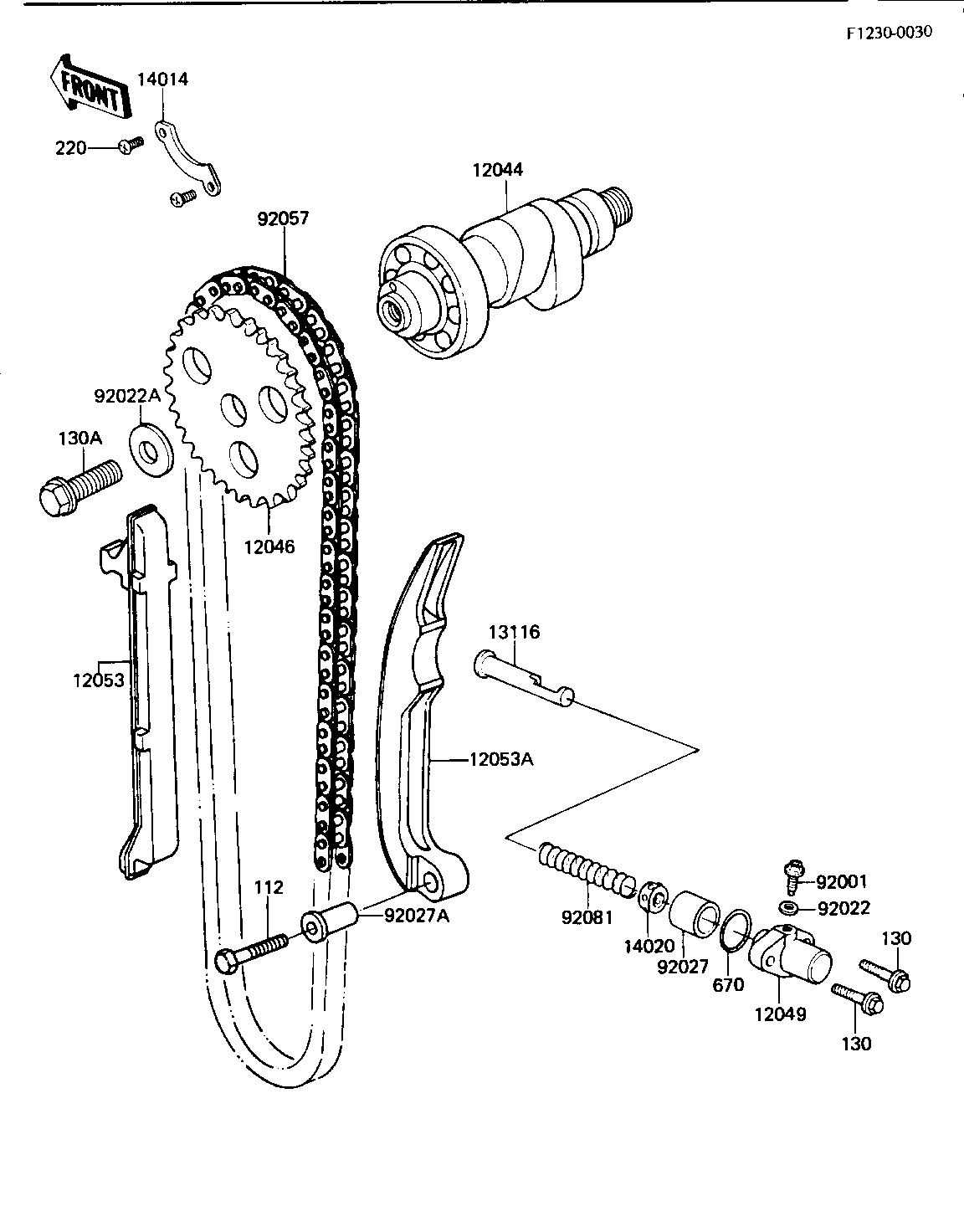

1984 KLT200 - CAMSHAFT/CHAIN/TENSIONER ('84 KLT200-C2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAMSHAFT-VALVE | 12044 | 12044-1053 | 1 | ||
| SPROCKET,CAM CHAIN,32 | 12046 | 12046-1037 | 1 | ||
| TENSIONER,CAM CHAIN | 12049 | 12049-1008 | 1 | ||
| SLIPER,CAM CHAIN | 12053 | 12053-023 | 1 | ||
| SLIPER,CAM CHAIN | 12053A | 12053-024 | 1 | ||
| ROD,PUSH,CAM CHAIN | 13116 | 13116-1019 | 1 | ||
| PLATE-POSITION | 14014 | 14014-1030 | 1 | ||
| RETAINER | 14020 | 14020-1002 | 1 | ||
| BELT,TENSIONER ADJUST | 92001 | 92001-1155 | 1 | ||
| WASHER OIL PUMP BANJO | 92022 | 92022-077 | 1 | ||
| WASHER,10X22X3 | 92022A | 92022-1365 | 1 | ||
| COLLAR,TENSIONER | 92027 | 92027-1273 | 1 | ||
| COLLAR | 92027A | 92027-155 | 1 | ||
| CHAIN,CAM | 92057 | 21070-013 | 1 | ||
| SPRING,TENSIONER | 92081 | 92081-1105 | 1 | ||
| BOLT-UPSET | 112 | 112G0630 | 1 | ||
| BOLT,FLANGED,6X25 | 130 | 130G0625 | 2 | ||
| BOLT-FLANGED,10X25 | 130A | 130G1025 | 1 | ||
| SCREW PAN HEAD 6X10 | 220 | 220B0610 | 2 | ||
| "0" RING,21MM | 670 | 670B2021 | 1 |
| CAMSHAFT-VALVE | |
| REF # | 12044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET,CAM CHAIN,32 | |
| REF # | 12046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TENSIONER,CAM CHAIN | |
| REF # | 12049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLIPER,CAM CHAIN | |
| REF # | 12053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLIPER,CAM CHAIN | |
| REF # | 12053A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,PUSH,CAM CHAIN | |
| REF # | 13116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-POSITION | |
| REF # | 14014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RETAINER | |
| REF # | 14020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BELT,TENSIONER ADJUST | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER OIL PUMP BANJO | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,10X22X3 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,TENSIONER | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAIN,CAM | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,TENSIONER | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 112 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X25 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X25 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X10 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| "0" RING,21MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
