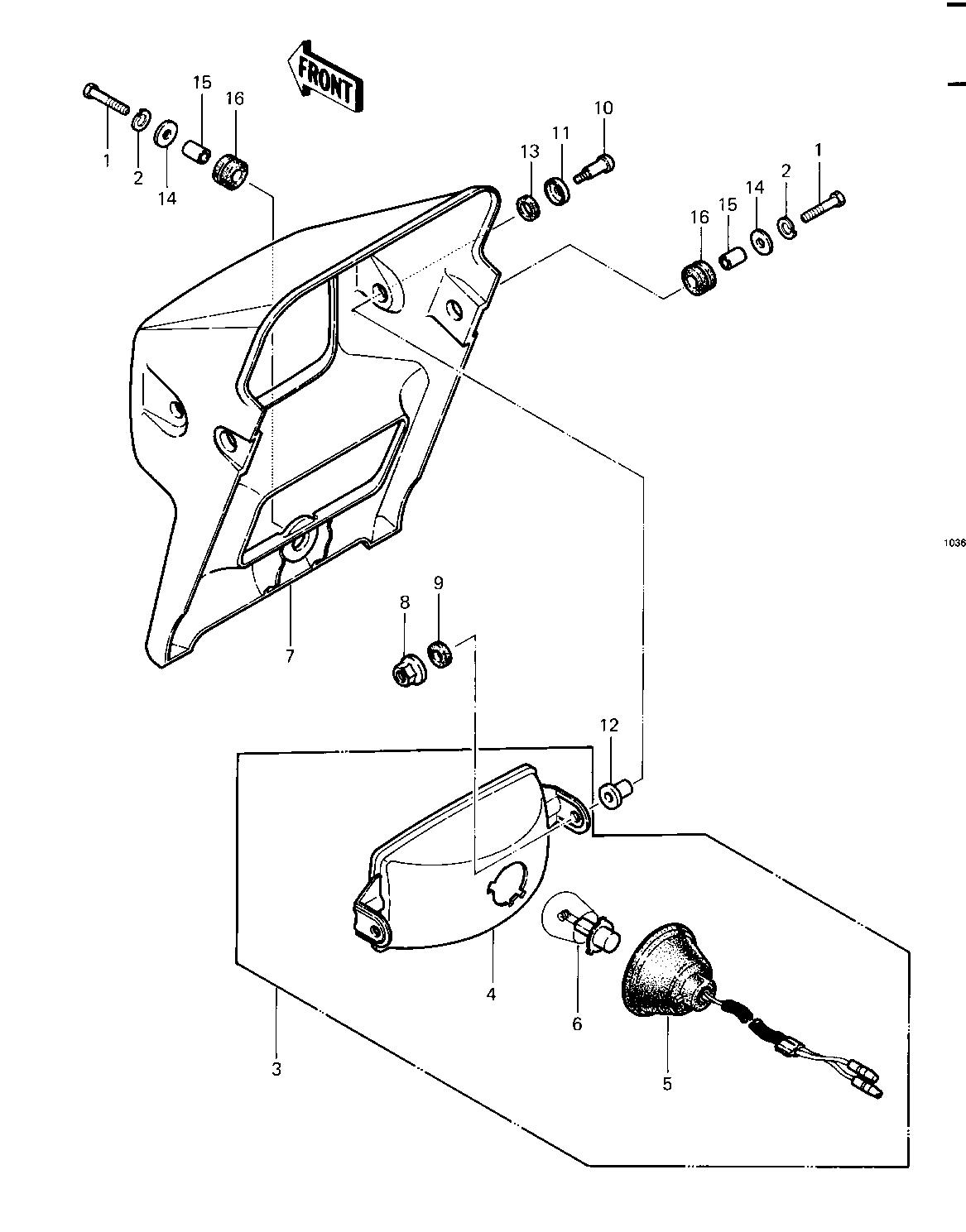

1983 KLT200 - HEADLIGHT ('83 KLT200-C1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT 6X22 | 1 | 112B0622 | 3 | ||
| WASHER SPRING 6MM | 2 | 461F0600 | 3 | ||
| LAMP-HEAD | 3 | 23004-4004 | 1 | ||
| LENS-COMP | 4 | 23007-4003 | 1 | ||
| SOCKET H.L. | 5 | 23008-4004 | 1 | ||
| BULB 12V 35/25W | 6 | 92069-037 | 1 | ||
| BODY-COMP-HEAD LAMP,B | 7 | 23005-4006-6D | 1 | ||
| BODY-COMP-HEAD LAMP,W | 7 | 23005-4006-8S | 1 | ||
| NUT,HEAD LAMP RIM FIT | 8 | 23020-023 | 2 | ||
| WASHER-PLAIN,5MM | 9 | 23021-012 | 2 | ||
| SCREW,HEAD LAMP | 10 | 92009-4003 | 2 | ||
| WASHER,HEAD LAMP | 11 | 92022-4005 | 2 | ||
| DAMPER,HEAD LAMP | 12 | 92075-4009 | 2 | ||
| DAMPER,HEAD LAMP | 13 | 92075-4010 | 2 | ||
| WASHER 6.5X20X1.6T | 14 | 92022-125 | 3 | ||
| COLLAR,6.8X10X11.5L | 15 | 92027-1210 | 3 | ||
| DAMPER | 16 | 92075-1057 | 3 |
