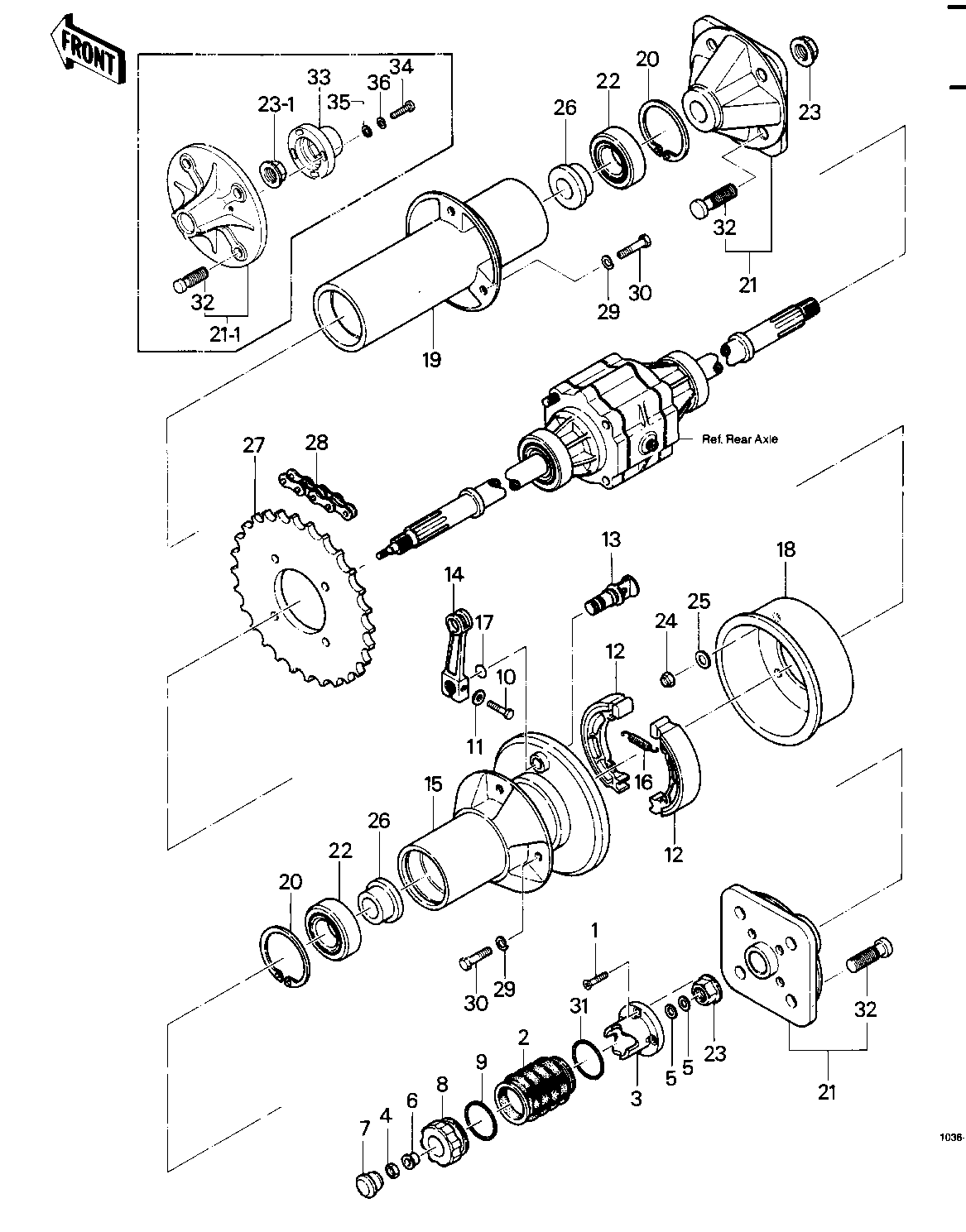

1983 KLT200 - REAR HUB/BRAKE/CHAIN ('83 KLT200-C1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW CNTSNK HD 5X16 1 221B0516A 4
BOOT 2 49006-4005 1
CAM 3 49060-4001 1
NUT-LOCK,5MM 4 92019-014 1
WASHER,PLAIN,5MM 5 92022-241 AR USE 2 OR 3 WASHER
COLLAR 6 92027-4030 1
PLUG,FRAME END 7 92066-1027 1
KNOB 8 92077-4002 1 -F/NO. 502600
KNOB 8 92077-4002 1 F/NO. 502601-
SPRING 9 92081-1177 1
BOLT-UPSET 10 112G0622 1
WASHER PLAIN 6MM 11 411B0600 1
SHOE-BRAKE 12 41048-1068 2
CAM SHAFT,BRAKE 13 41050-1002 1
LEVER BRAKE CAM 14 41053-1022 1
PANEL,RR BRAKE 15 42016-4009 1
SPRING-BRAKE SHOE 16 42020-004 2
"O" RING,15MM 17 670B2015 1
DRUM,HUB-RR 18 41038-4017 1
HOUSING,BEARING 19 41046-4009 1
CIRCRIP-TYPE-C,68MM 20 481J6800 2
KIT RR-HUB 21 99996-4002 2 -F/NO. 502600
RR-HUB,FORGED 21-1 49030-4011 2 F/NO. 502601-
BEARING 22 601A6008UU 2
NUT,FLANGED,18MM 23 92015-2186 2 -F/NO. 502600
NUT,FLANGED&LOCK,18MM 23-1 92015-4024 2 F/NO. 502601-
NUT,10MM 24 92015-1429 4
WASHER,10.5X18X2.5 25 92022-1453 4
COLLAR,AXLE 26 92027-4029 2
SPROCKET-HUB,50T 27 42041-4008 1
CHAIN,EK520SH-0,98L 28 92057-4011 1 ENDLESS
WASHER SPRING 10MM 29 461F1000 6
BOLT 30 92001-160 6
SPRING,L=141 31 92081-1570 1
BOLT,LUG 32 92001-4006 8
CAP 33 11012-4005 1 F/NO. 502601-
SCREW PAN HEAD 5X20 34 220B0520 4 F/NO. 502601-
WASHER PLAIN 5MM 35 410B0500 4 F/NO. 502601-
WASHER SPRING 5MM 36 461F0500 4 F/NO. 502601-
