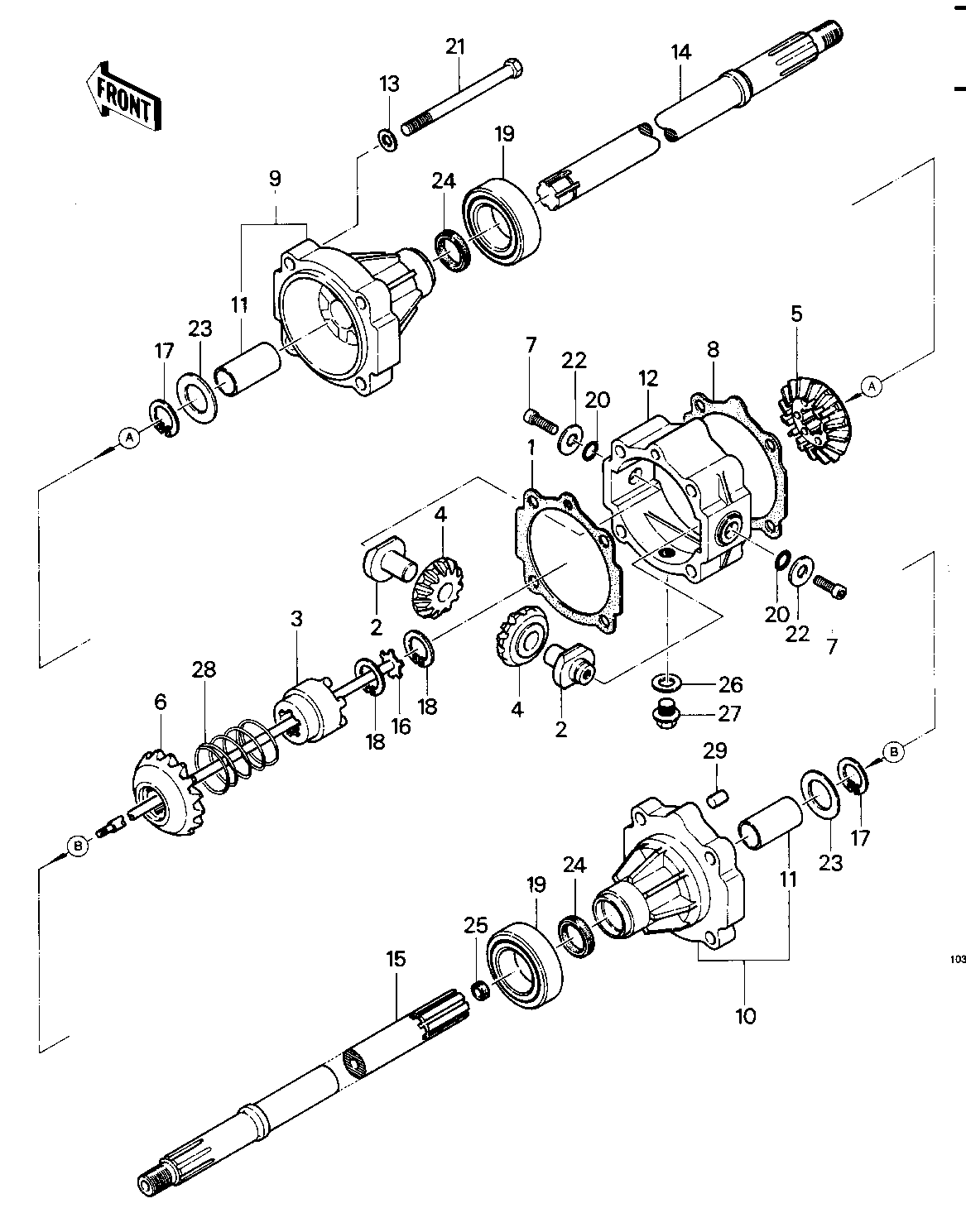

1983 KLT200 - REAR AXLE ('83 KLT200-C1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,DIFFERENTIAL C | 1 | 11009-1341 | 1 | ||
| SHAFT | 2 | 13107-1042 | 2 | ||
| SHIFTER | 3 | 13139-1004 | 1 | ||
| GEAR,BEVEL,10T | 4 | 16085-4005 | 2 | ||
| GEAR,BEVEL,16T | 5 | 16085-4006 | 1 | ||
| GEAR,BEVEL,16T | 6 | 16085-4007 | 1 | ||
| BOLT-SOCKET,8X20 | 7 | 120P0820 | 2 | ||
| GASKET,DIFFERENTIAL C | 8 | 11009-1345 | 1 | ||
| CASE,DIFFERENTIAL GEA | 9 | 32099-1060 | 1 | ||
| CASE,DIFFERENTIAL GEA | 10 | 32099-1059 | 1 | ||
| BUSHING,DIFFERENTIAL | 11 | 92028-1206 | 2 | ||
| CASE,DIFFERENTIAL GEA | 12 | 32099-1040 | 1 | ||
| WASHER,10.5X18X2.5 | 13 | 92022-1453 | 4 | ||
| AXLE,RR,RH | 14 | 41068-1151 | 1 | -F/NO. 502600 | |
| AXLE,RR,RH | 14 | 41068-1151 | 1 | F/NO. 502601- | |
| AXLE,RR,LH | 15 | 41068-1152 | 1 | -F/NO. 502600 | |
| AXLE,RR,LH | 15 | 41068-1152 | 1 | F/NO. 502601- | |
| ROD,REAR AXLE | 16 | 46102-4007 | 1 | ||
| CIRCLIP,22MM | 17 | 480J2200 | 2 | ||
| CIRCLIP,18MM | 18 | 481J1800 | 2 | ||
| BEARING | 19 | 601A6008UU | 2 | ||
| "O" RING,12MM | 20 | 670B2012 | 2 | ||
| BOLT,10X103 | 21 | 92001-1842 | 4 | ||
| WASHER,8.5X23X5.5 | 22 | 92022-1452 | 2 | ||
| WASHER,22X40X2 | 23 | 92022-4029 | 2 | ||
| OIL SEAL,SC22325 | 24 | 92049-1048 | 2 | ||
| OIL SEAL | 25 | 92050-075 | 1 | ||
| WASHER,12X18X1 | 26 | 92022-1211 | 1 | ||
| PLUG,OIL DRAIN,12X15 | 27 | 92066-1174 | 1 | ||
| SPRING,DIFFERENTIAL,L | 28 | 92081-1568 | 1 | ||
| PIN-DOWEL,10X20 | 29 | 551A1020 | 1 |
| GASKET,DIFFERENTIAL C | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SHIFTER | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,BEVEL,10T | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GEAR,BEVEL,16T | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,BEVEL,16T | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,8X20 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,DIFFERENTIAL C | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE,DIFFERENTIAL GEA | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE,DIFFERENTIAL GEA | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING,DIFFERENTIAL | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CASE,DIFFERENTIAL GEA | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.5X18X2.5 | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| AXLE,RR,RH | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | -F/NO. 502600 |
| AXLE,RR,RH | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F/NO. 502601- |
| AXLE,RR,LH | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | -F/NO. 502600 |
| AXLE,RR,LH | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F/NO. 502601- |
| ROD,REAR AXLE | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,22MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,18MM | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| "O" RING,12MM | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X103 | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.5X23X5.5 | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,22X40X2 | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,SC22325 | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,12X18X1 | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG,OIL DRAIN,12X15 | |
| REF # | 27 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,DIFFERENTIAL,L | |
| REF # | 28 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-DOWEL,10X20 | |
| REF # | 29 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
