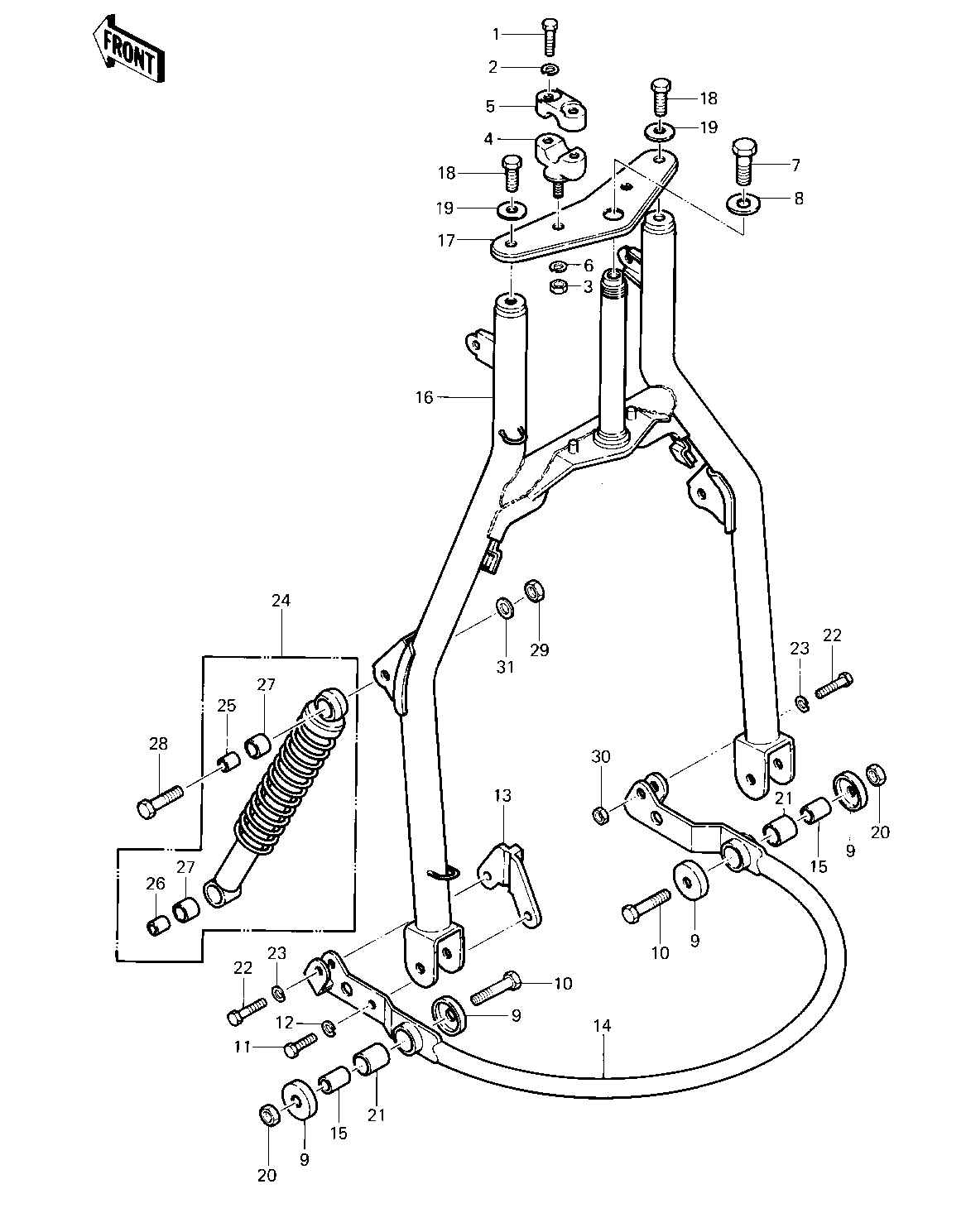

1983 KLT200 - FRONT FORK ('83 KLT200-C1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT 1 114G0836 4
WASHER SPRING 8MM 2 461F0800 4
NUT,10MM 3 314B1000 2
HOLDER,HANDLEBAR,BUFF 4 46012-002-80 2
HOLDER UPPER HANDLBAR 5 46012-004 2
WASHER SPRING 10MM 6 461F1000 2
BOLT,STEERING STEM 7 44041-072 1
WASHER,STEERING STEM 8 44043-056 1
CAP 9 11012-4004 4
BOLT HEX HEAD 14X55 10 113B1455 2
BOLT-UPSET,10X20 11 112B1020 1
WASHER SPRING 10MM 12 461F1000 1
STOPPER 13 32085-4006 1
ARM-SUSP 14 39007-4003 1
SLEEVE,14X20X25.3 15 42036-4003 2
FORK FRONT,EBONY 16 44001-4010-8G 1
FRONT FORK,RED 16 44001-4010-8R 1
HOLDER-FORK UPPER 17 44039-4003 1
BOLT 18 92001-1742 2
WASHER 19 92022-1381 2
NUT-LOCK,14MM 20 92019-011 2
BUSHING,SWING ARM 21 92028-4001 2
BOLT,HEX HEAD 10X40 22 92001-1253 2
WASHER SPRING 10MM 23 461F1000 2
SHOCKABSORBER,BLACK 24 45014-4011-8G 2
COLLAR 25 92027-4023 2
COLLAR 26 92027-4024 2
DAMPER 27 92075-4030 4
BOLT,12X45 28 92001-4018 2
NUT-LOCK,12MM 29 92019-009 2
NUT,LOCK,10MM 30 92019-021 1
WASHER,PLAIN,12 X 22 31 92022-1057 2
