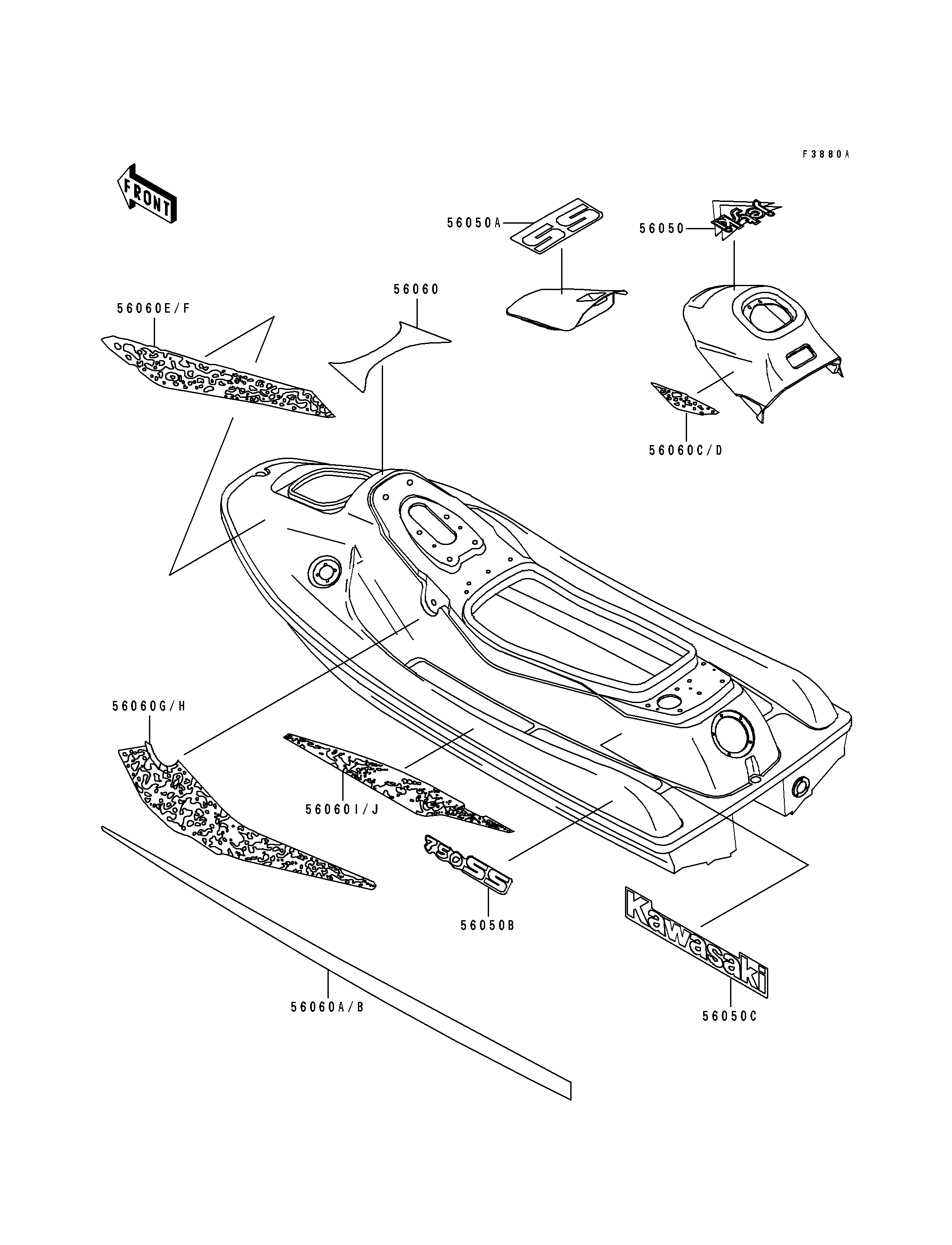

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,HANDLE COVER,JET SKI | 56050 | 56050-1791 | 1 | ||
| MARK,HATCH COVER,SS | 56050A | 56050-1792 | 1 | ||
| MARK,DECK,750 SS | 56050B | 56050-1793 | 2 | ||
| MARK,KAWASAKI | 56050C | 56050-1794 | 2 | ||
| PATTERN,DECK | 56060 | 56060-1204 | 1 | ||
| PATTERN,HULL,LH | 56060A | 56060-1205 | 1 | ||
| PATTERN,HULL,RH | 56060B | 56060-1206 | 1 | ||
| PATTERN,HANDLE COVER,LH | 56060C | 56060-1357 | 1 | ||
| PATTERN,HANDLE COVER,RH | 56060D | 56060-1358 | 1 | ||
| PATTERN,DECK,FR,LH | 56060E | 56060-1359 | 1 | ||
| PATTERN,DECK,FR,RH | 56060F | 56060-1360 | 1 | ||
| PATTERN,DECK,CNT,LH | 56060G | 56060-1361 | 1 | ||
| PATTERN,DECK,CNT,RH | 56060H | 56060-1362 | 1 | ||
| PATTERN,DECK,RR,LH | 56060I | 56060-1363 | 1 | ||
| PATTERN,DECK,RR,RH | 56060J | 56060-1364 | 1 |
| MARK,HANDLE COVER,JET SKI | |
| REF # | 56050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,HATCH COVER,SS | |
| REF # | 56050A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,DECK,750 SS | |
| REF # | 56050B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,KAWASAKI | |
| REF # | 56050C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK | |
| REF # | 56060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HULL,LH | |
| REF # | 56060A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HULL,RH | |
| REF # | 56060B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HANDLE COVER,LH | |
| REF # | 56060C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HANDLE COVER,RH | |
| REF # | 56060D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,FR,LH | |
| REF # | 56060E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,FR,RH | |
| REF # | 56060F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,CNT,LH | |
| REF # | 56060G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,CNT,RH | |
| REF # | 56060H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RR,LH | |
| REF # | 56060I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RR,RH | |
| REF # | 56060J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
