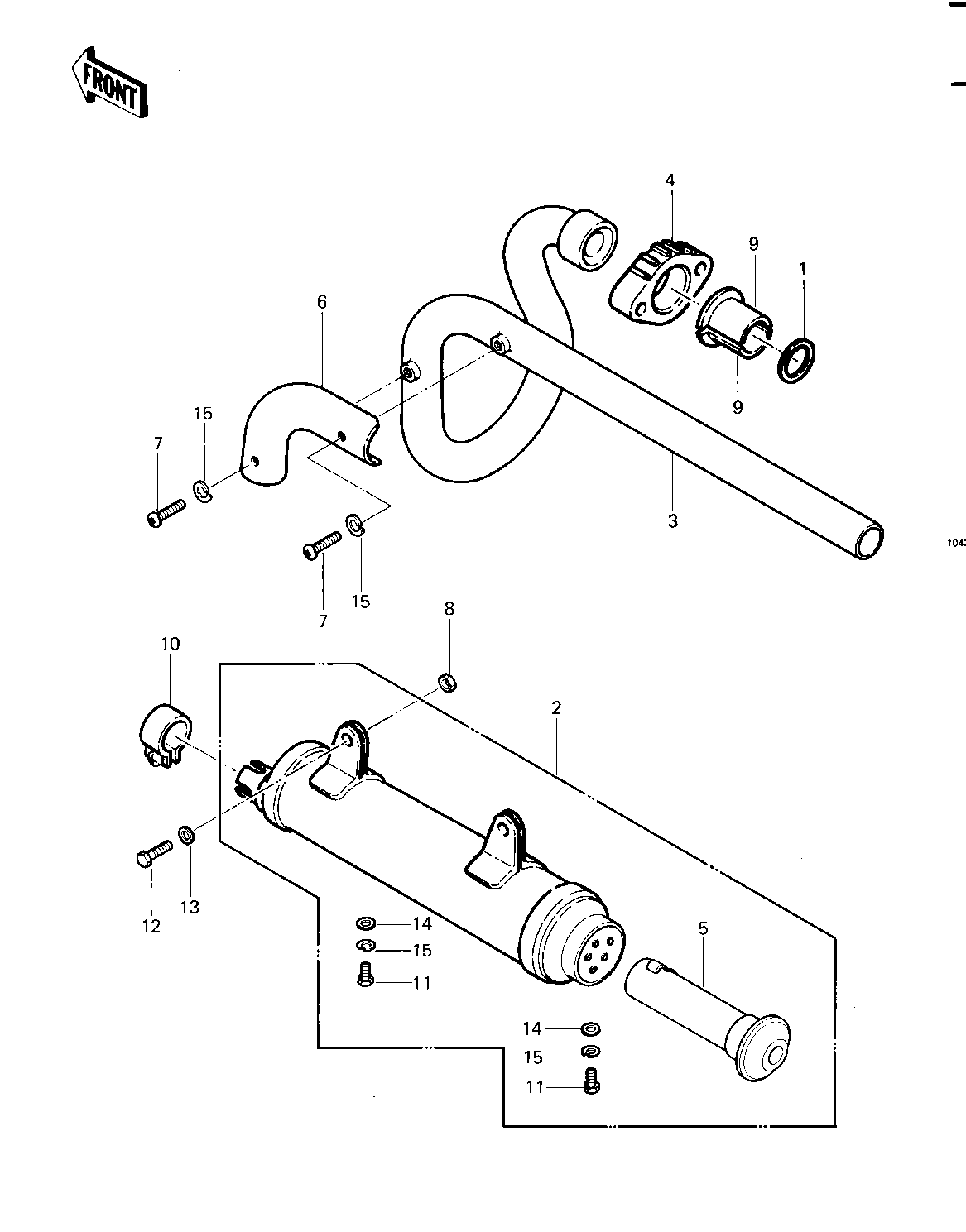

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,EXHAUST PIPE H | 1 | 11009-1866 | 1 | ||
| MUFFLER | 2 | 18001-1451 | 1 | ||
| MUFFLER | 2 | 18001-1451 | 1 | EPA REQUIRED 1/1/83 | |
| PIPE EXHAUST | 3 | 18049-1203 | 1 | ||
| HOLDER EXHAUST PIPE | 4 | 18069-1014 | 1 | ||
| BAFFLE-PIPE MUFFLER | 5 | 49099-1119 | 1 | ||
| COVER-EXHAUST PIPE | 6 | 49107-1006 | 1 | ||
| SCREW | 7 | 92009-1054 | 2 | ||
| NUT,LOCK,8MM | 8 | 92015-1124 | 1 | ||
| INSERT,EXHAUST PIPE | 9 | 92027-278 | 2 | ||
| CLAMP,MUFFLER FITTING | 10 | 92037-1035 | 1 | ||
| BOLT-UPSET,6X12 | 11 | 112G0612 | 2 | ||
| BOLT,8X20 | 12 | 115G0820 | 1 | ||
| WASHER PLAIN 8MM | 13 | 410B0800 | 1 | ||
| WASHER PLAIN 6MM | 14 | 411B0600 | 2 | ||
| WASHER SPRING 6MM | 15 | 461F0600 | 4 |
