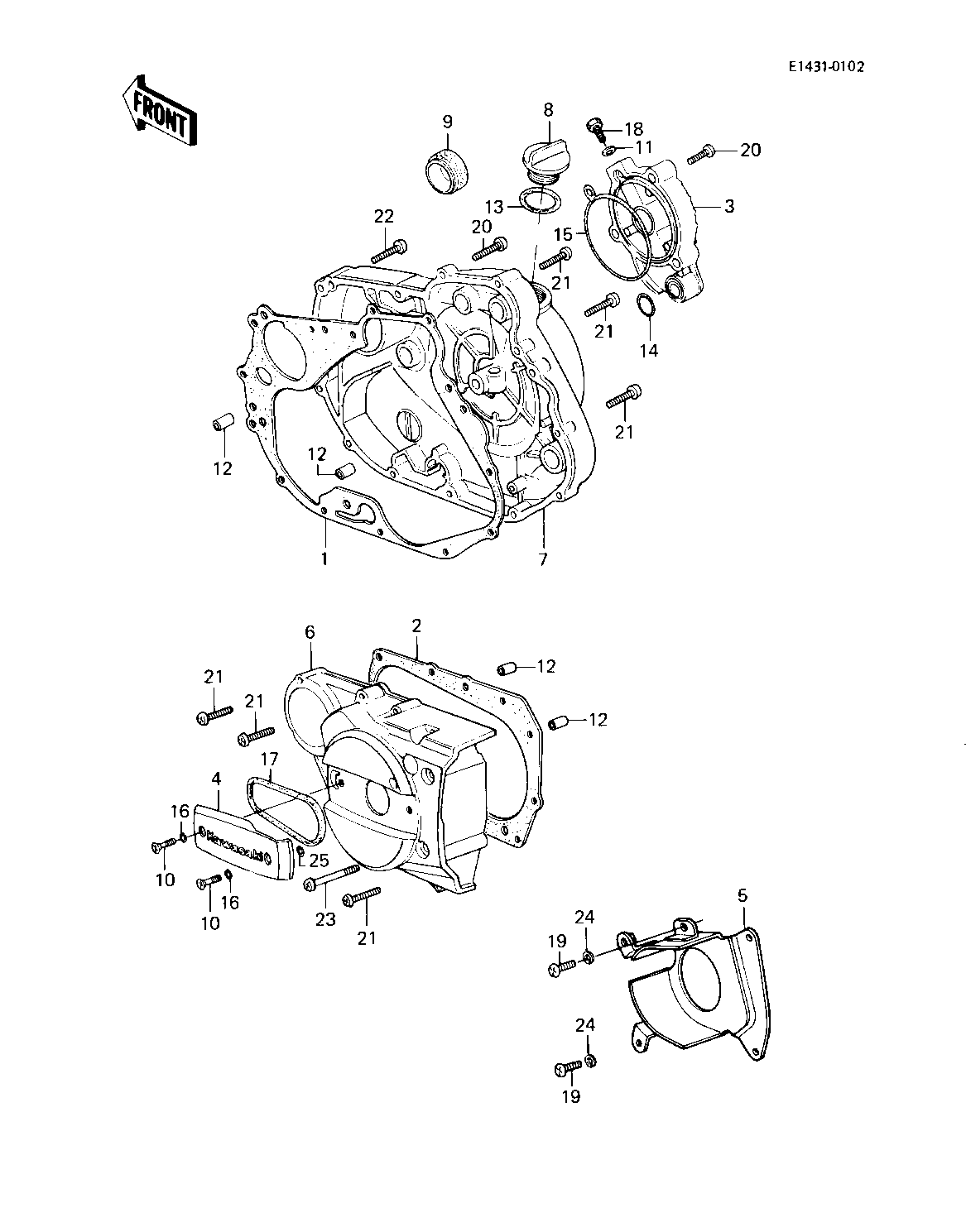

1983 KLT200 - ENGINE COVERS ('83 KLT200-C1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,CLUTCH COVER | 1 | 11009-1306 | 1 | ||
| GASKET,L.H ENGINE COV | 2 | 14045-031 | 1 | ||
| COVER,OIL FILTER | 3 | 14025-1559 | 1 | ||
| COVER,GENERATOR | 4 | 14025-1606 | 1 | ||
| COVER-CHAIN,BLACK | 5 | 14026-1052 | 1 | ||
| COVER-GENERATOR | 6 | 14031-1110 | 1 | ||
| COVER-CLUTCH | 7 | 14032-1098 | 1 | ||
| CAP-OIL FILLER | 8 | 16115-1009 | 1 | ||
| GAUGE,OIL LEVEL | 9 | 52005-1009 | 1 | ||
| SCREW | 10 | 92009-1715 | 2 | ||
| WASHER,PLAIN | 11 | 92022-304 | 1 | ||
| PIN-DOWEL | 12 | 92042-007 | 4 | ||
| "0" RING,31MM | 13 | 92055-049 | 1 | ||
| "O" RING | 14 | 92055-098 | 1 | ||
| "0" RING,FILTER COVER | 15 | 92055-1048 | 1 | ||
| "O" RING,DYNAMO COVER | 16 | 92055-109 | 2 | ||
| RING-O | 17 | 92055-1143 | 1 | ||
| BOLT HEX HEAD 6X8 | 18 | 110B0608 | 1 | ||
| SCREW PAN HEAD 6X10 | 19 | 220B0610 | 2 | ||
| SCREW PAN HEAD 6X25 | 20 | 220B0625 | 4 | ||
| SCREW PAN HEAD 6X30 | 21 | 220B0630 | 18 | ||
| SCREW PAN HEAD 6X40 | 22 | 220B0640 | 1 | ||
| SCREW PAN HEAD 6X60 | 23 | 220B0660 | 2 | ||
| WASHER SPRING 6MM | 24 | 461F0600 | 2 | ||
| "O" RING,12MM | 25 | 670B2012 | 1 |
