Parts Diagrams |

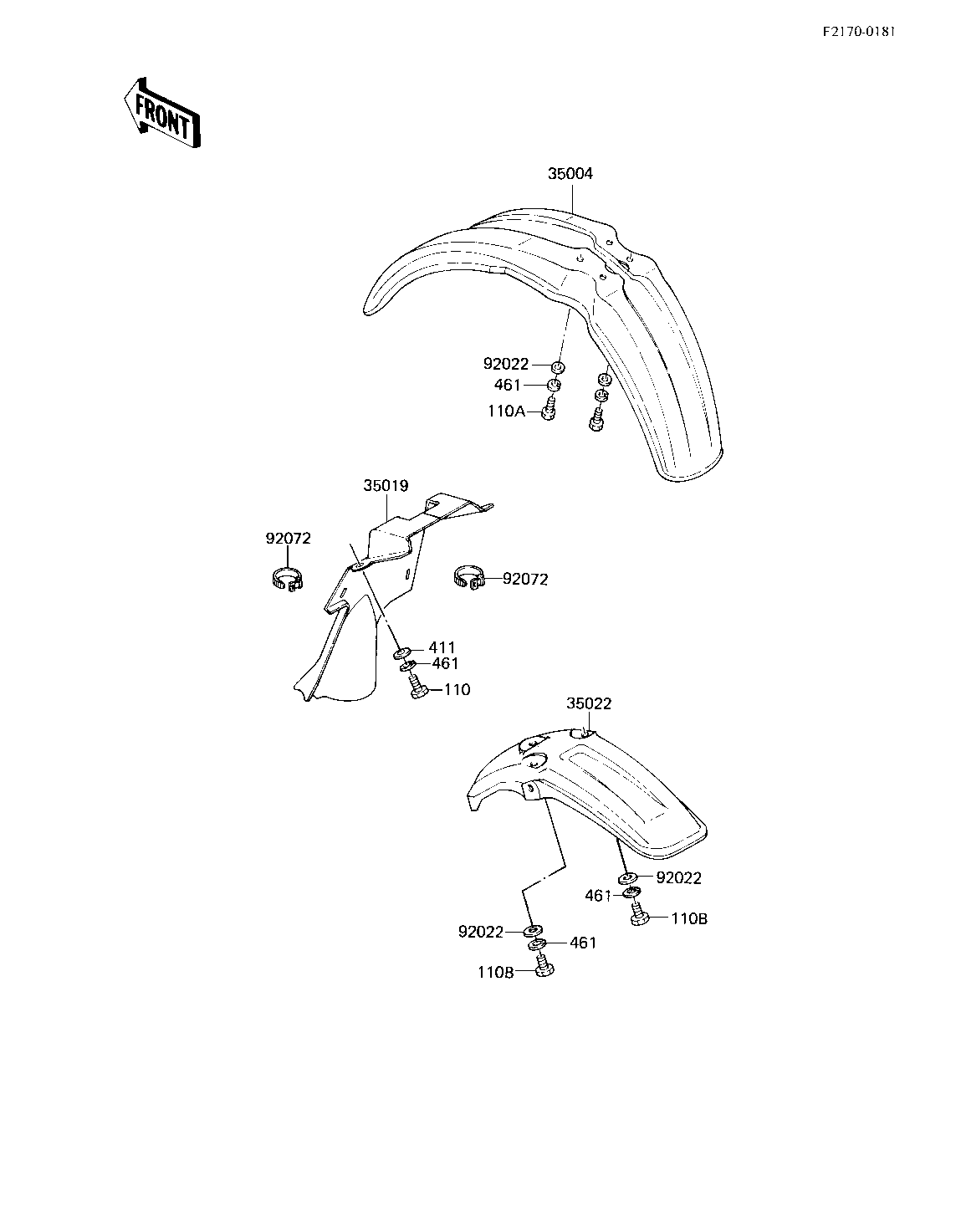

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| 35004-1250-6W (Canada) | 35004 | 35004-1092-6W | 1 | ||
| FLAP,REAR FENDER | 35019 | 35019-1055 | 1 | ||
| FENDER-COMP-REAR,L.GR | 35022 | 35022-1247-6W | 1 | ||
| WASHER 6.5X20X1.6T | 92022 | 92022-125 | 7 | ||
| BAND,SHORT | 92072 | 92072-030 | 2 | ||
| BOLT-UPSET,6X12 | 110 | 112G0612 | 2 | ||
| BOLT-UPSET,6X16 | 110A | 112G0616 | 4 | ||
| BOLT-UPSET | 110B | 112G0618 | 3 | ||
| WASHER PLAIN 6MM | 411 | 411B0600 | 2 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 9 |
| 35004-1250-6W (Canada) | |
| REF # | 35004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLAP,REAR FENDER | |
| REF # | 35019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-COMP-REAR,L.GR | |
| REF # | 35022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| BAND,SHORT | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X12 | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X16 | |
| REF # | 110A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 110B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
