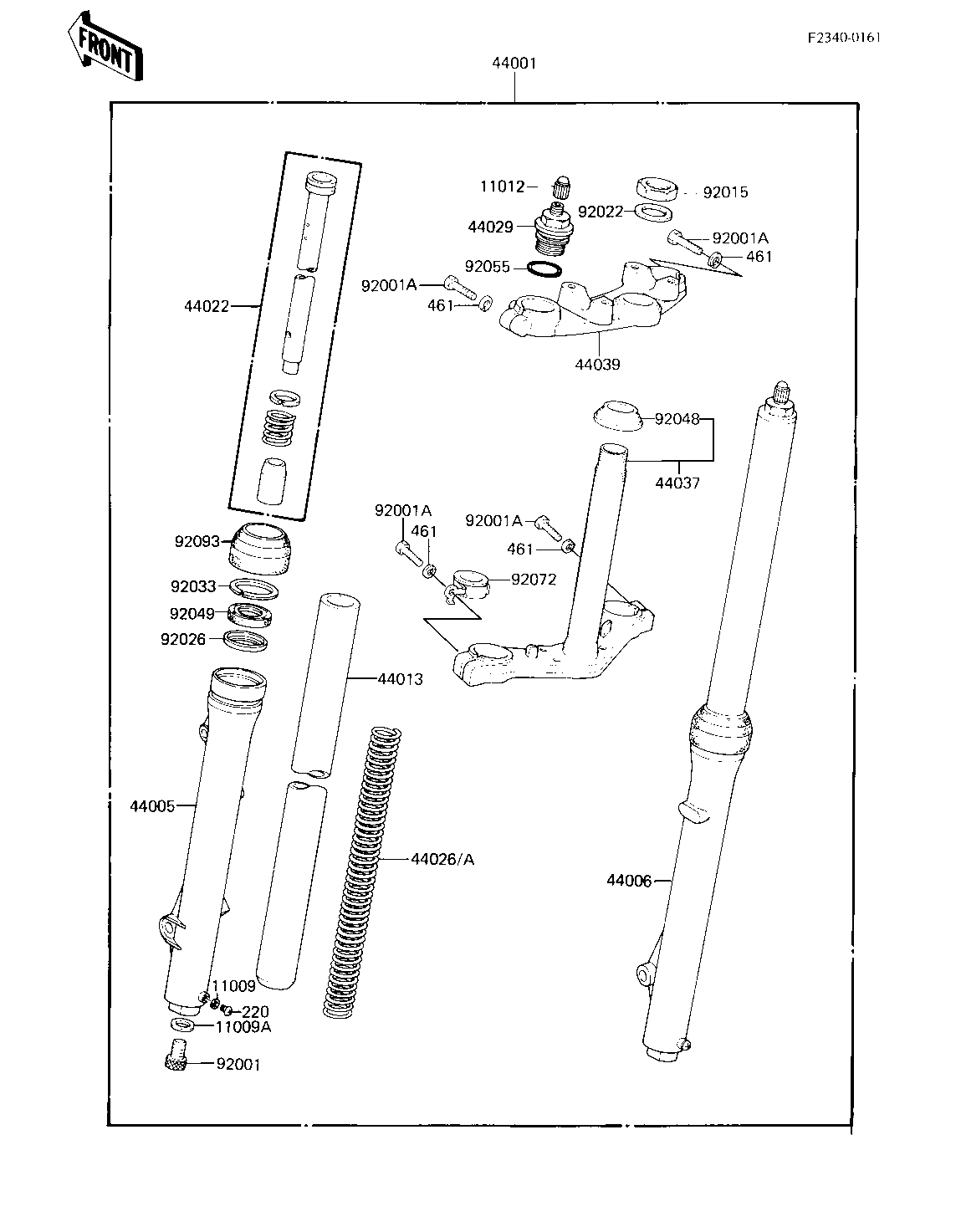

1983 KX80 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK DRAIN PLG 11009 44045-046 2
GASKET,FORK CYL BOLT 11009A 44045-051 2
CAP,FORK 11012 11012-1283 2
FORK-FRONT 44001 44001-1405 1
PIPE-LEFT FORK OUTER 44005 44005-1128 1
PIPE-RIGHT FORK OUTER 44006 44006-1128 1
PIPE-FORK INNER 44013 44013-1105 2
CYLINDER-FORK 44022 44022-1090 2
SPRING-FRONT FORK,K=0 44026 44026-1179 2
SPRING-FRONT FORK,HEA 44026A 44026-1182 2
SEAT-FORK SPRING 44029 44029-1043 2
HOLDER-FORK UNDER 44037 44037-1106 1
HOLDER-FORK UPPER 44039 44039-1071 1
BOLT,FORK CYLINDER 92001 44041-078 2
BOLT,8X35 92001A 92001-1435 6
NUT,FORK TOP 92015 92015-1224 1
WASHER,FORK TOP 92022 92022-1385 1
SPACER,FORK OUTER TUB 92026 92026-1131 2
RING-SNAP 92033 92033-1070 1
CONE STERNG BERG LOW 92048 92047-010 1
OIL SEAL,FORK 92049 92049-1077 2
"0" RING 92055 92055-1034 2
BAND,CABLE 92072 92072-1095 1
DUST SHIELD,FORK 92093 92093-1063 2
SCREW PAN HEAD 4X6 220 220B0406 2
WASHER SPRING 8MM 461 461F0800 6
