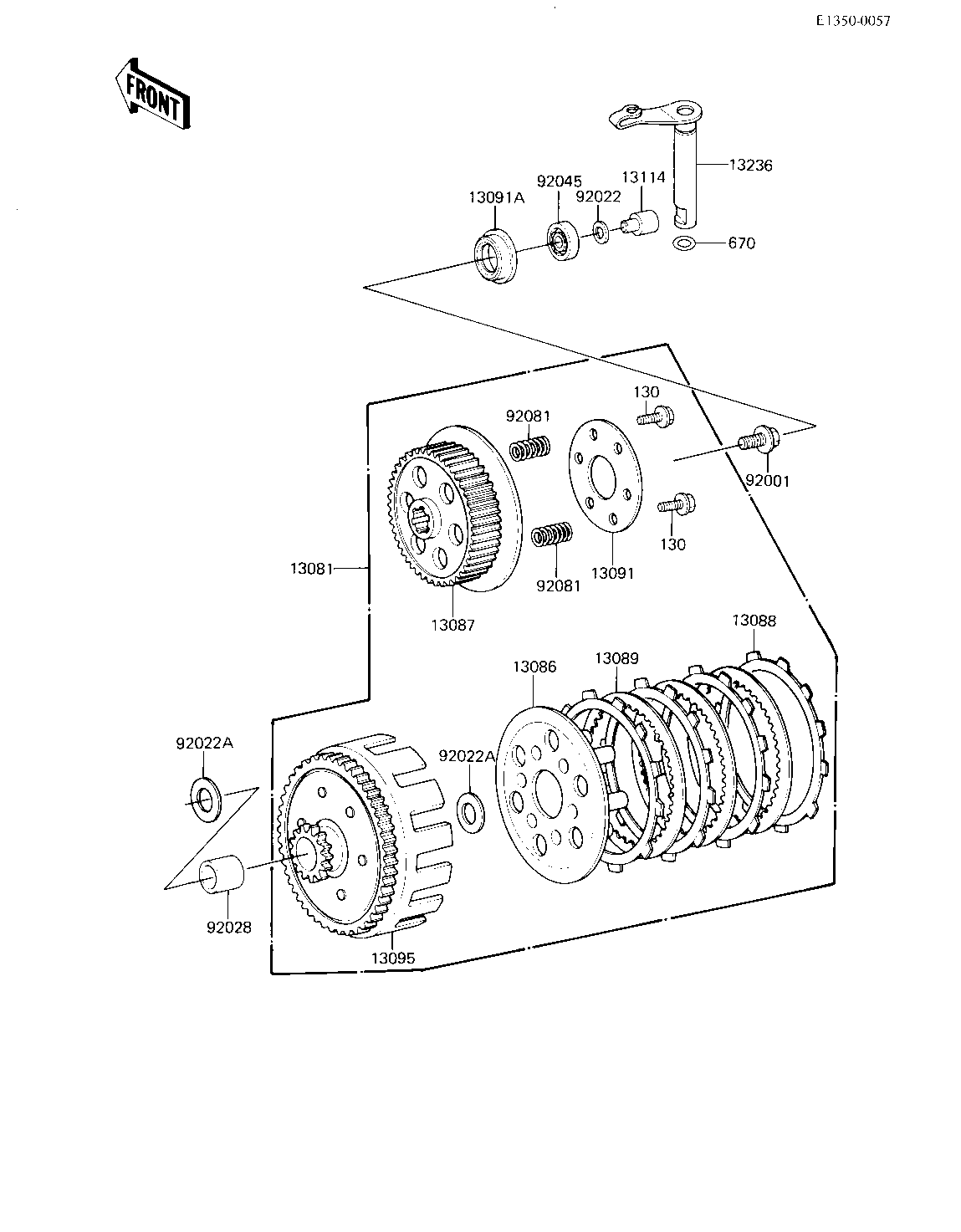

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CLUTCH-ASSY | 13081 | 13081-1093 | 1 | ||
| WHEEL,CLUTCH | 13086 | 13086-1002 | 1 | ||
| HUB-CLUTCH | 13087 | 13087-1051 | 1 | ||
| PLATE,CLUTCH FRICTION | 13088 | 13088-1010 | 5 | ||
| PLATE-CLUTCH,STEEL | 13089 | 13089-1009 | 4 | ||
| HOLDER,CLUTCH SPRING | 13091 | 13091-1115 | 1 | ||
| HOLDER,CLUTCH PUSHER | 13091A | 13091-1133 | 1 | ||
| HOUSING-COMP-CLUTCH | 13095 | 13095-1052 | 1 | ||
| PUSHER,CLUTCH | 13114 | 13114-1008 | 1 | ||
| LEVER-COMP,CLUTCH REL | 13236 | 13236-1051 | 1 | ||
| BOLT,10X14 | 92001 | 92001-1433 | 1 | ||
| WASHER,17.3X28X1.0 | 92022A | 92022-255 | 2 | ||
| BUSHING,17X22X21.1 | 92028 | 92028-1149 | 1 | ||
| BEARING,BALL #627 | 92045 | 92045-026 | 1 | ||
| SPRING,CLUTCH | 92081 | 92081-1175 | 6 | ||
| BOLT-FLANGED | 130 | 130P0520 | 6 | ||
| "O" RING,9MM | 670 | 670B1509 | 1 |
| CLUTCH-ASSY | |
| REF # | 13081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WHEEL,CLUTCH | |
| REF # | 13086 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HUB-CLUTCH | |
| REF # | 13087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,CLUTCH FRICTION | |
| REF # | 13088 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH,STEEL | |
| REF # | 13089 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CLUTCH SPRING | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CLUTCH PUSHER | |
| REF # | 13091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOUSING-COMP-CLUTCH | |
| REF # | 13095 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PUSHER,CLUTCH | |
| REF # | 13114 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-COMP,CLUTCH REL | |
| REF # | 13236 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X14 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,17.3X28X1.0 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUSHING,17X22X21.1 | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING,BALL #627 | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CLUTCH | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| "O" RING,9MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
