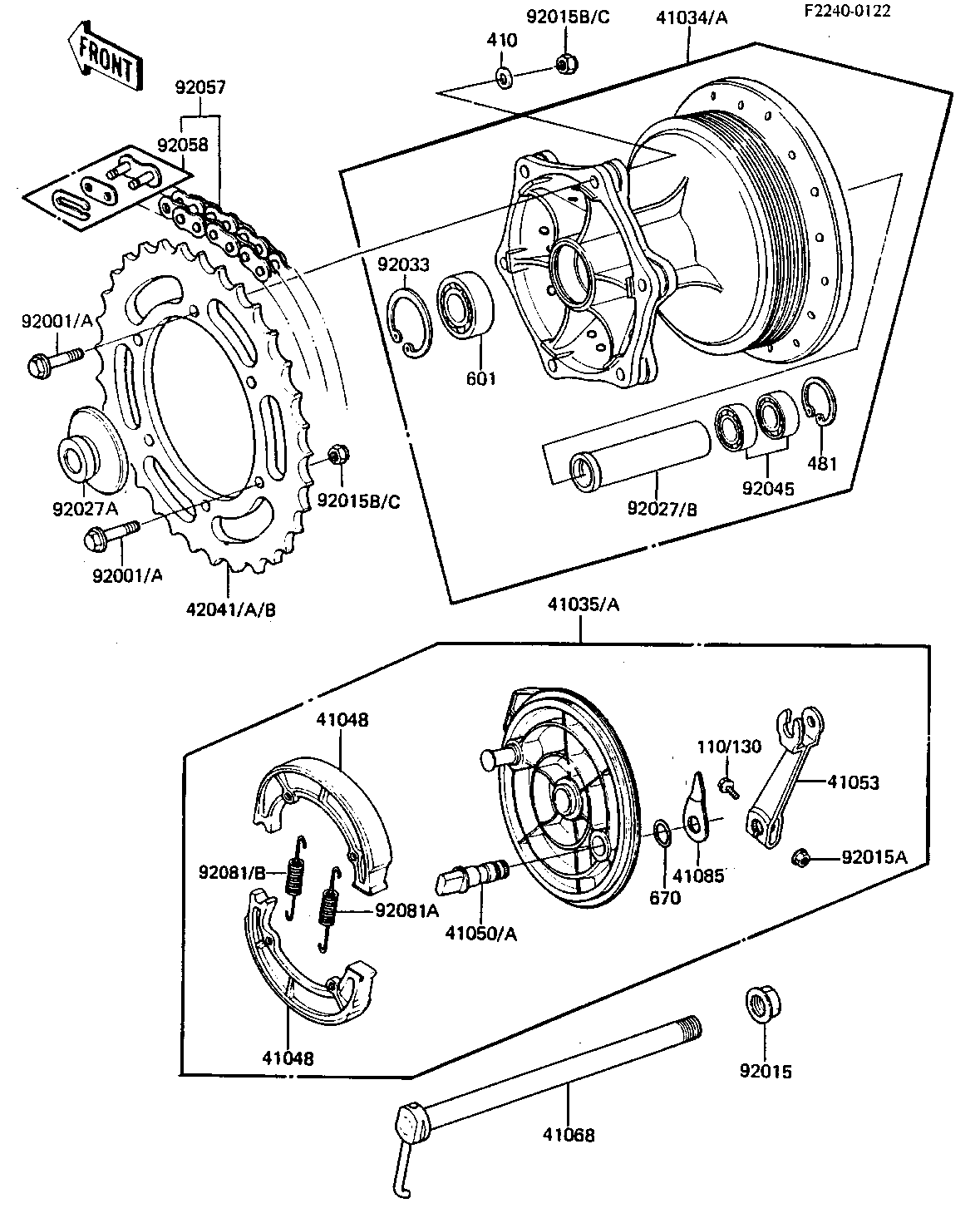

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DRUM-ASSY,RR | 41034A | 41034-1102 | 1 | ||
| PANEL-ASSY-BRAKE,RR | 41035A | 41035-1120 | 1 | ||
| SHOE,BRAKE | 41048 | 42019-010 | 2 | ||
| CAM-BRAKE,RR | 41050A | 41050-1034 | 1 | ||
| LEVER-BRAKE CAM,RR | 41053 | 41053-1038 | 1 | ||
| AXLE,RR | 41068 | 41068-1074 | 1 | ||
| INDICATOR,FRONT BRAKE | 41085 | 41085-001 | 1 | ||
| SPROCKET-HUB,51T | 42041 | 42041-1079 | 1 | (OPTION) | |
| SPROCKET-HUB,50T | 42041A | 42041-1132 | 1 | ||
| SPROCKET-HUB,49T | 42041B | 42041-1183 | 1 | (OPTION) | |
| BOLT,HEX HEAD,8X32 | 92001 | 92001-1040 | 6 | ||
| NUT,16M/M | 92015 | 92015-1015 | 1 | ||
| NUT-6MM | 92015A | 92015-1078 | 1 | ||
| NUT-8MM | 92015C | 92015-1143 | 6 | ||
| COLLAR,L=23.5 | 92027A | 92027-1543 | 1 | ||
| COLLAR,L=99 | 92027B | 92027-1748 | 1 | ||
| RING, SNAP,43.5M/M | 92033 | 92033-1040 | 1 | ||
| BEARING-BALL,#6003UC3 | 92045 | 601B6003U | 2 | ||
| CHAIN,D1D520K 116L | 92057 | 92057-1079 | 1 | ||
| JOINT-CHAIN | 92058 | 92058-1051 | 1 | ||
| SPRING,BRAKE SHOE | 92081A | 92081-1550 | 1 | ||
| SPRING,BRAKE SHOE | 92081B | 92081-1766 | 1 | ||
| BOLT-UPSET | 110 | 112G0630 | 1 | ||
| CIRCLIP,35MM | 481 | 481J3500 | 1 | ||
| BEARING BALL | 601 | 601B6203U | 1 | ||
| "O" RING,15MM | 670 | 670B2015 | 1 |
