Parts Diagrams |

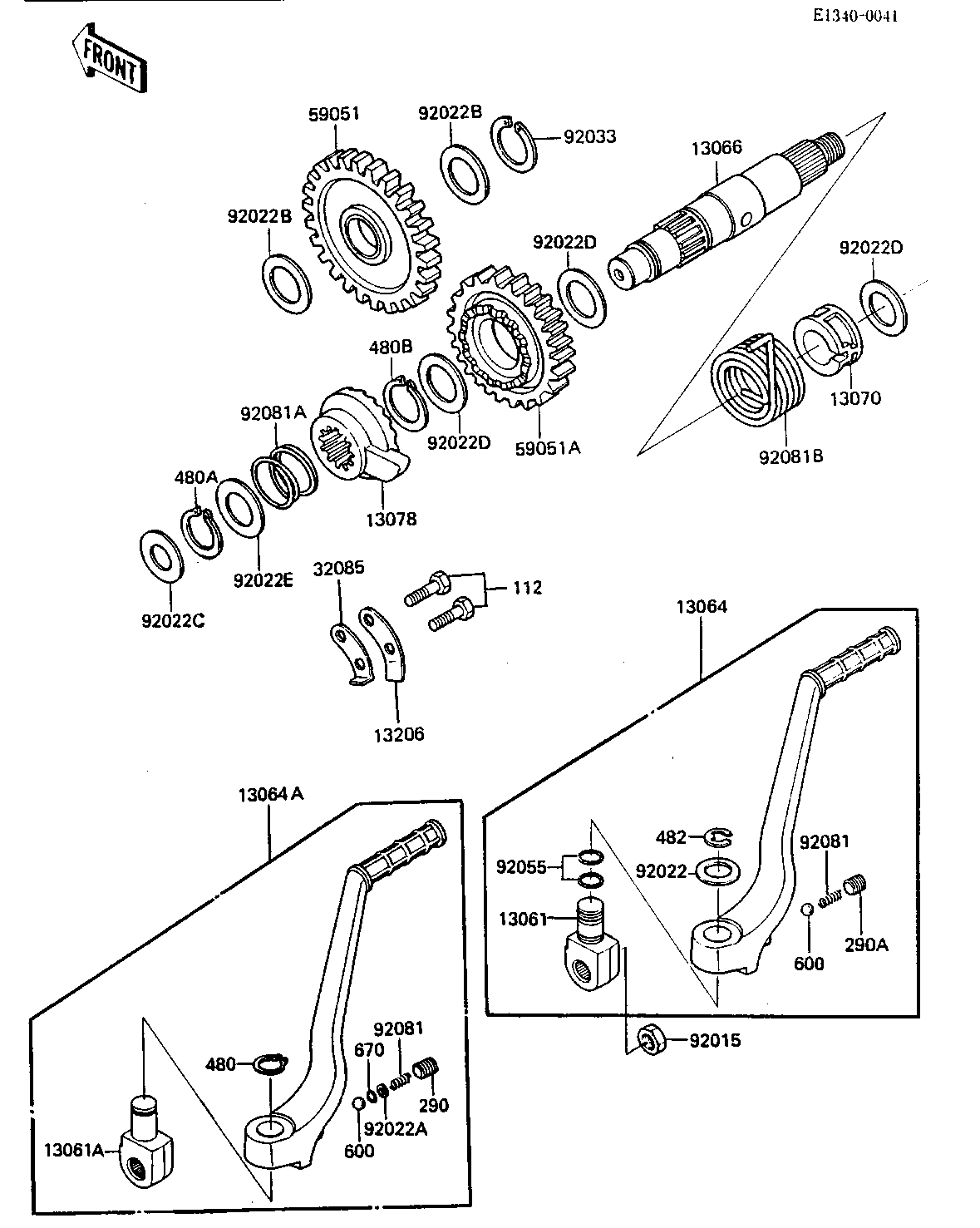

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOSS,KICK PEDAL | 13061A | 13061-1107 | 1 | ||
| LEVER-ASSY-KICK,PEDAL | 13064A | 13064-1103 | 1 | ||
| SHAFT-KICK | 13066 | 13066-1026 | 1 | ||
| GUIDE,KICK SPRING | 13070 | 13070-1063 | 1 | ||
| RATCHET | 13078 | 13078-1061 | 1 | ||
| GUIDE-KICK | 13206 | 13206-1059 | 1 | ||
| STOPPER,KICKSTARTER | 32085 | 32085-1016 | 1 | ||
| IDLE GEAR, KICKSTRTER | 59051 | 59051-1022 | 1 | ||
| GEAR-SPUR,KICKSTARTER | 59051A | 59051-1051 | 1 | ||
| NUT,12MM | 92015 | 92015-1001 | 1 | ||
| WASHER,3X6,5X0.8 | 92022A | 92022-1481 | 1 | ||
| WASHER | 92022B | 92022-252 | 2 | ||
| WASHER,PLAIN | 92022C | 92022-269 | 1 | ||
| WASHER,PLAIN | 92022D | 92022-271 | 3 | ||
| WASHER,PLAIN | 92022E | 92022-315 | 1 | ||
| CIRCLIP,18MM | 92033 | 92033-029 | 1 | ||
| SPRING KICK PEDAL | 92081 | 92081-020 | 1 | ||
| SPRING,RATCHET | 92081A | 92081-122 | 1 | ||
| SPRING,KICKSTARTER | 92081B | 92081-1253 | 1 | ||
| BOLT-UPSET | 112 | 112G0618 | 2 | ||
| SCREW-SET-SOCKET | 290 | 290Q0814 | 1 | ||
| CIRCLIP 15MM | 480 | 480J1500 | 1 | ||
| CIRCLIP 16MM | 480A | 480J1600 | 1 | ||
| CIRCLIP 18MM | 480B | 480J1800 | 1 | ||
| BALL STEEL 1/4' | 600 | 600A0800 | 1 | ||
| "O" RING,4MM | 670 | 670B1504 | 1 |
| BOSS,KICK PEDAL | |
| REF # | 13061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-ASSY-KICK,PEDAL | |
| REF # | 13064A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-KICK | |
| REF # | 13066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,KICK SPRING | |
| REF # | 13070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RATCHET | |
| REF # | 13078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-KICK | |
| REF # | 13206 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STOPPER,KICKSTARTER | |
| REF # | 32085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| IDLE GEAR, KICKSTRTER | |
| REF # | 59051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPUR,KICKSTARTER | |
| REF # | 59051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,12MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,3X6,5X0.8 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 92022C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 92022D |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 92022E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,18MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING KICK PEDAL | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,RATCHET | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,KICKSTARTER | |
| REF # | 92081B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 112 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-SET-SOCKET | |
| REF # | 290 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP 15MM | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP 16MM | |
| REF # | 480A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP 18MM | |
| REF # | 480B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BALL STEEL 1/4' | |
| REF # | 600 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING,4MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
