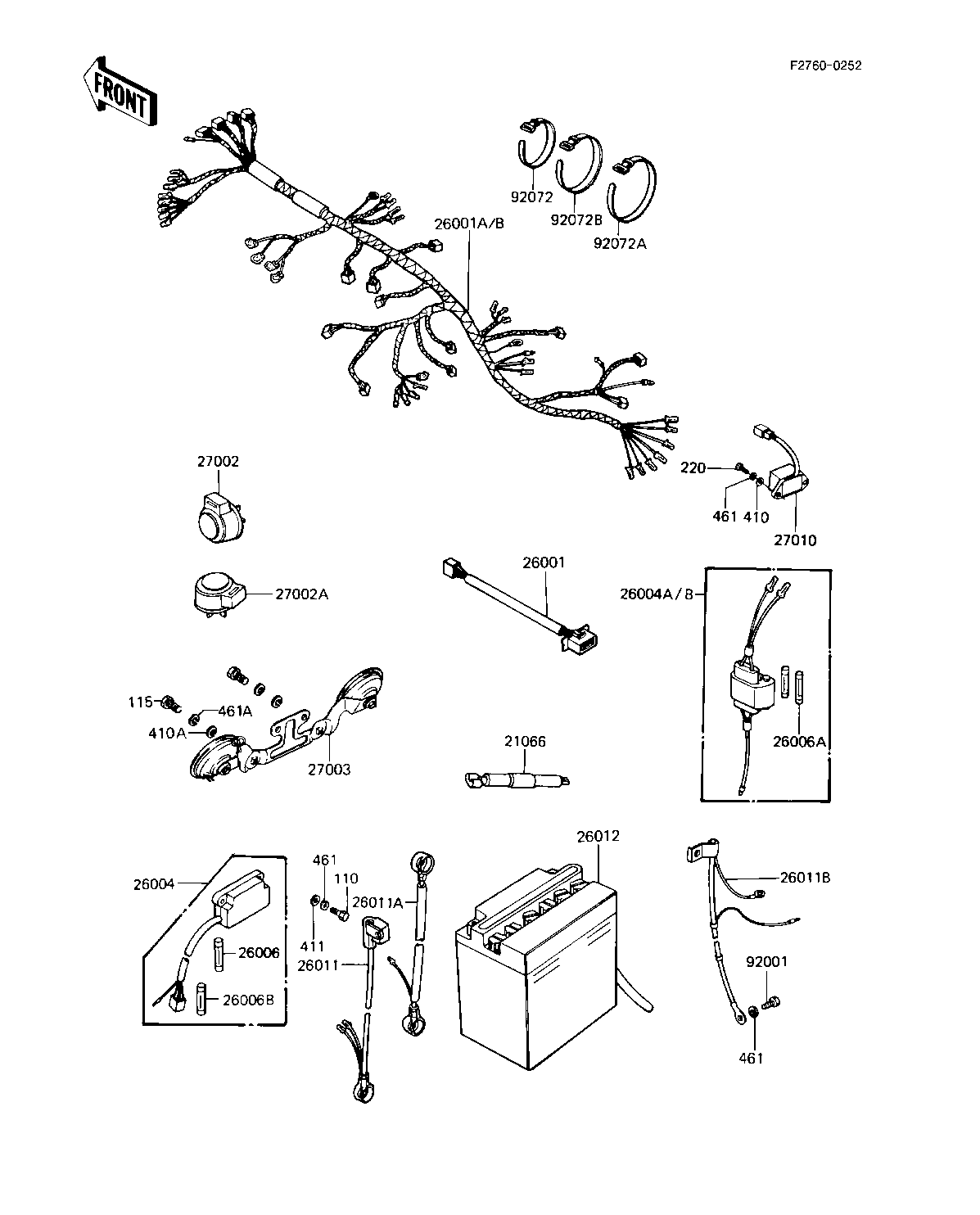

1982 Eddie Lawson Replica - CHASSIS ELECTRICAL EQUIPMENT
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| REGULATOR | 21066 | 21066-026 | 1 | ||
| HARNESS,RESERVE LIGHT | 26001 | 26001-1248 | 1 | ||
| HARNESS,MAIN | 26001A | 26001-1390 | 1 | ||
| FUSE-ASSY | 26004 | 26004-1011 | 1 | ||
| FUSE-ASSY,ACCESSORY | 26004A | 26004-1014 | 1 | ||
| FUSE 10A | 26006 | 26006-003 | 5 | ||
| FUSE,10A,L=30M/M | 26006A | 26006-1002 | 3 | ||
| FUSE,30A,L=25M/M | 26006B | 26006-1005 | 2 | ||
| WIRE-LEAD | 26011 | 26011-1118 | 1 | ||
| WIRE-LEAD,BATTERY,(-) | 26011B | 26011-1124 | 1 | ||
| YUA BAT YB18L-A | 26012 | 26012-1039 | 1 | ||
| RELAY-TURN SIGNAL | 27002 | 27002-011 | 1 | ||
| RELAY,TURN SIGNAL | 27002A | 27002-016 | 1 | ||
| HORN,DOUBLE | 27003 | 27003-1143 | 1 | ||
| SWITCH,RESERVE LIGHTI | 27010 | 27010-1024 | 1 | ||
| BOLT,HEX HEAD,6MM | 92001 | 92001-137 | 1 | ||
| BAND,MIDDLE | 92072 | 92072-031 | 7 | ||
| BAND,LONG | 92072A | 92072-032 | 2 | ||
| BAND,WIRING HARNESS | 92072B | 92072-056 | 2 | ||
| BOLT 6X22 | 110 | 112B0622 | 2 | ||
| BOLT-SMALL,8X16,BLACK | 115 | 115C0816 | 2 | ||
| SCREW PAN HEAD 6X20 | 220 | 220B0620 | 2 | ||
| WASHER PLAIN 6MM | 410 | 410B0600 | 2 | ||
| WASHER,PLAIN,8MM | 410A | 92022-1554 | 2 | ||
| WASHER PLAIN 6MM | 411 | 411B0600 | 2 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 5 | ||
| WASHER-SPRING,8MM,BLA | 461A | 461K0800 | 2 |
