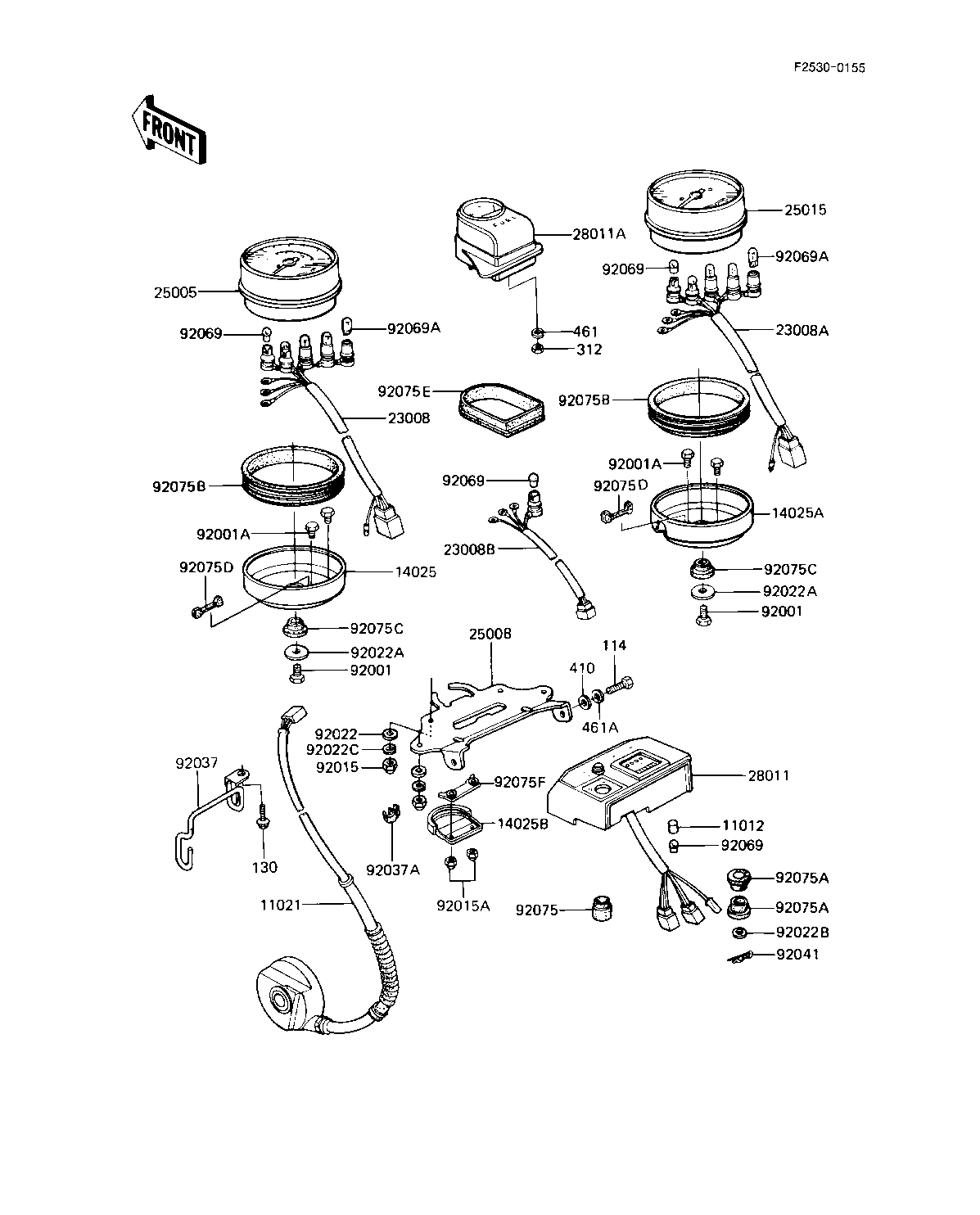

1982 Eddie Lawson Replica - METERS (KZ1000-R1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,BULB,GREEN 11012 11012-1172 1
CASE-ASSY 11021 11021-1011 1
COVER,SPEEDOMETER 14025 14025-1344 1
COVER,TACHOMETER 14025A 14025-1345 1
COVER,FUEL METER 14025B 14025-1347 1
SOCKET-ASSY,SPEEDOMET 23008 23008-1090 1
SOCKET-ASSY,TACHOMETE 23008A 23008-1091 1
SOCKET-ASSY,FUEL METE 23008B 23008-1092 1
SPEEDOMETER,MPH 25005 25005-1106 1
BRACKET-METER 25008 25008-1034 1
TACHOMETER 25015 25015-1082 1
METER,TOTAL & TRIP 28011 28011-1011 1
METER,FUEL 28011A 28011-1025 1
BOLT,6X8 92001 92001-1442 2
BOLT,HEX HEAD,6X14 92001A 92003-204 4
NUT-CAP,6MM,BLACK 92015 322C0600 4
NUT,CAP,4MM 92015A 92015-1144 2
WASHER PLAIN 92022 411F0600 4
WASHER,6.2X26X1 92022A 92022-1248 2
WASHER,PLAIN,6MM 92022B 92022-263 2
WASHER-SPRING,6MM,BLA 92022C 461K0600 4
CLAMP,CASE ASSY,WIRE 92037 92037-1249 3
CLAMP,CALIPER HOLDER 92037A 92037-1358 1
PIN,COTER 92041 92041-006 2
BULB 12V 1.5W 92069 92069-017 6
BULB,12V3.4W 92069A 92069-1007 6
DAMPER 92075 92075-1286 1
DAMPER,TRIP METER 92075A 92075-1300 4
DAMPER,METER 92075B 92075-1315 2
DAMPER 92075C 92075-1316 2
DAMPER 92075D 92075-1317 2
DAMPER,FUEL METER 92075E 92075-1318 1
DAMPER 92075F 92075-1319 1
BOLT-SMALL-UPSET,8X18 114 115G0818 2
BOLT,FLANGED,6X8 130 130B0608 1
NUT-HEX 312 312B0300A 3
WASHER PLAIN 8MM 410 410B0800 2
WASHER SPRING 3MM 461 461F0300 3
WASHER SPRING 8MM 461A 461F0800 2
