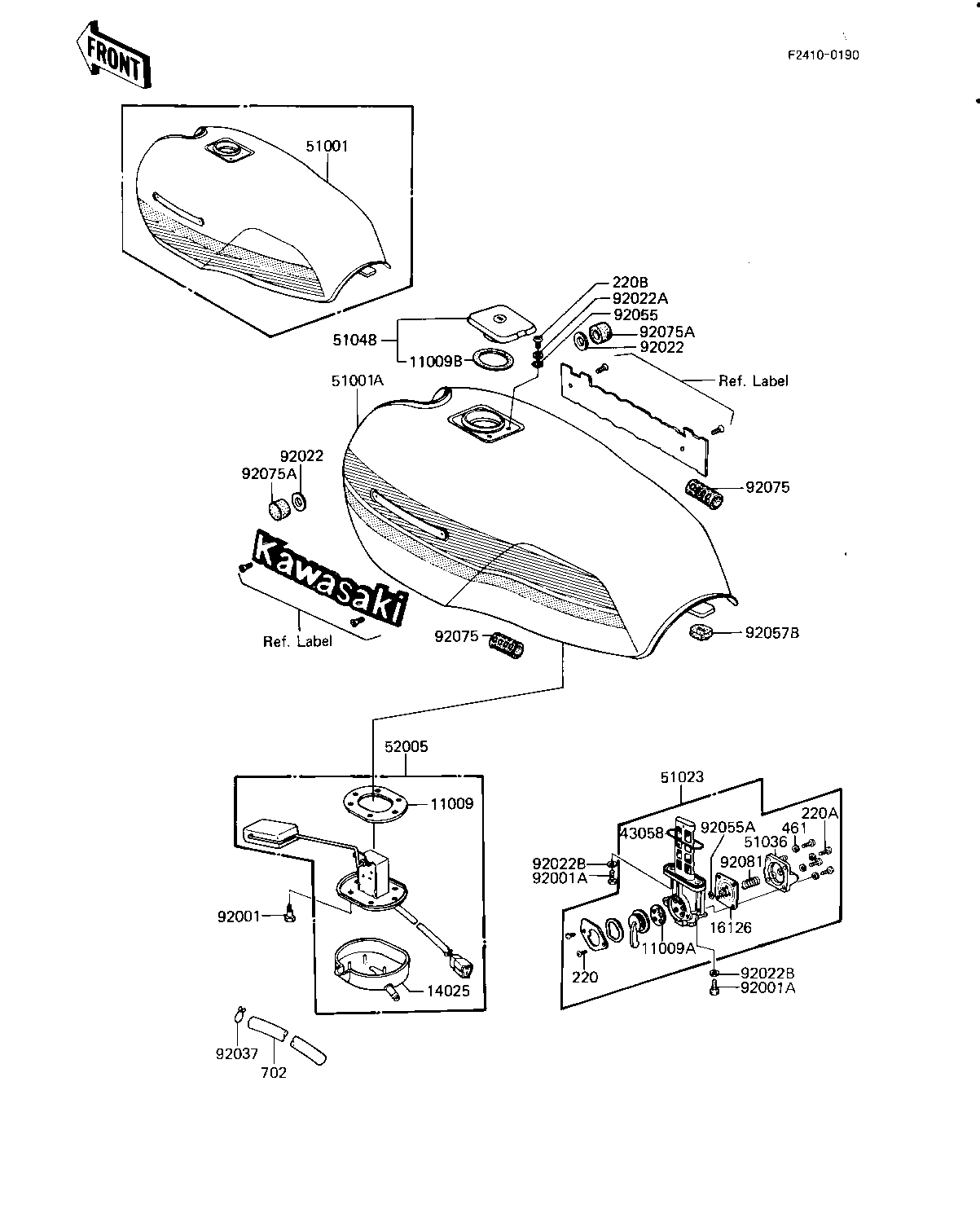

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET | 11009 | 11009-1037 | 1 | ||
| GASKET,FUEL TAP | 11009A | 11009-1044 | 1 | ||
| GASKET,FUEL TANK CAP | 11009B | 11009-1051 | 1 | ||
| COVER,FUEL GAUGE | 14025 | 14024-1434 | 1 | ||
| VALVE,DIAPHRAM | 16126 | 16126-1038 | 1 | ||
| "0" RING | 43058 | 43058-1001 | 1 | ||
| TANK-FUEL,L.GREEN | 51001 | 51001-1092-7F | 1 | ||
| TAP-ASSY,FUEL | 51023 | 51023-1174 | 1 | ||
| COVER ASSY,FUEL TAP | 51036 | 51036-1001 | 1 | ||
| CAP-ASSY-TANK,FUEL | 51048 | 51048-1015 | 1 | ||
| GAUGE,FUEL | 52005 | 52005-1026 | 1 | ||
| BOLT,FUEL GAUGE FIT | 92001 | 92001-1069 | 6 | ||
| BOLT,6X20,FUEL TAP | 92001A | 92001-1091 | 2 | ||
| WASHER-PL-10.5X26X2.3 | 92022 | 92022-044 | 2 | ||
| WASHER,PLAIN | 92022A | 92022-1038 | 2 | ||
| WASHER-PLAIN | 92022B | 92022-183 | 2 | ||
| CLAMP,CHAIN OILER | 92037 | 92037-147 | 1 | ||
| "0" RING | 92055 | 92055-1023 | 2 | ||
| "0" RING,DIAPHRAGM | 92055A | 92055-1068 | 1 | ||
| DAMPER RUBBER | 92075 | 92075-084 | 2 | ||
| DAMPER RUBBER,FL TANK | 92075A | 92075-125 | 2 | ||
| DAMPER RUBBER FUEL TA | 92075B | 92075-295 | 1 | ||
| SPRING,DIAPHRAGM | 92081 | 92081-1054 | 1 | ||
| SCREW PAN HEAD 4X8 | 220 | 220B0408 | 2 | ||
| SCREW-PAN-CRSOSS,4X12 | 220A | 220B0412 | 4 | ||
| SCREW PAN HEAD 5X10 | 220B | 220B0510 | 2 | ||
| WASHER SPRING 4MM | 461 | 461F0400 | 4 | ||
| TUBE-BREATHER (BULK) | 702 | 702A071000 | 1 |
