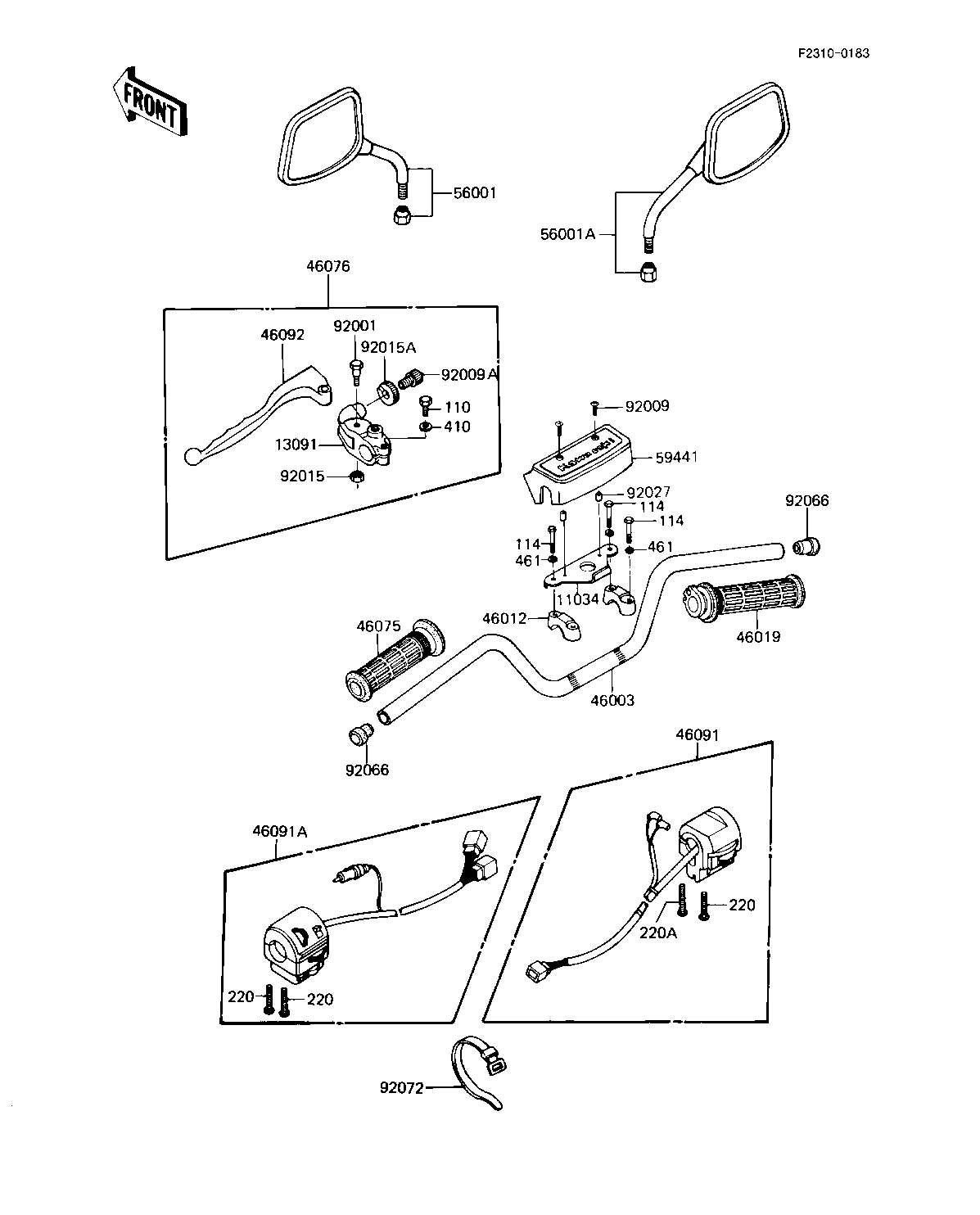

1982 Eddie Lawson Replica - HANDLEBAR (KZ1000-R1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,HANDLE COVER | 11034 | 11034-1899 | 1 | ||
| HOLDER,CLUTCH LEVER | 13091 | 13091-1046 | 1 | ||
| HANDLEBAR | 46003 | 46003-1107 | 1 | ||
| HOLDER-HANDLE | 46012 | 46012-1011 | 2 | ||
| GRIP-ASSY,THROTTLE | 46019 | 46019-1021 | 1 | ||
| GRIP,LH | 46075 | 46075-1028 | 1 | ||
| LEVER-ASSY-GRIP,CLUTC | 46076 | 46076-1026 | 1 | ||
| HOUSING-ASSY-CNTRL,RH | 46091 | 46091-1214 | 1 | ||
| HOUSING-ASSY-CNTRL,LH | 46091A | 46091-1228 | 1 | ||
| LEVER-GRIP,CLUTCH | 46092 | 46092-1024 | 1 | ||
| MIRROR-ASSY,LH | 56001 | 56001-1352 | 1 | ||
| MIRROR-ASSY,RH | 56001A | 56001-1353 | 1 | ||
| COVER-HANDLE | 59441 | 59441-1001 | 1 | ||
| BOLT,CLUTCH LEVER,BLA | 92001 | 92001-1548 | 1 | ||
| SCREW,4X16 | 92009 | 92009-1108 | 2 | ||
| SCREW,CABLE ADJUST,8 | 92009A | 92009-1134 | 1 | ||
| NUT,LOCK,6MM,BLACK | 92015 | 92015-1191 | 1 | ||
| NUT,CABLE ADJUST LOCK | 92015A | 92015-1197 | 1 | ||
| COLLAR,4.5X6.5X9.3 | 92027 | 92027-1313 | 2 | ||
| PLUG,HANDLE END | 92066 | 92066-1113 | 2 | ||
| BAND,SHORT | 92072 | 92072-030 | 4 | ||
| BOLT,6X22,BLACK | 110 | 110C0622 | 1 | ||
| BOLT,SMALL UPSET | 114 | 115G0835 | 4 | ||
| SCREW-PAN-CROS | 220 | 220B0535 | 3 | ||
| SCREW-PAN-CROS | 220A | 220B0540 | 1 | ||
| WASHER PLAIN | 410 | 410F0600 | 1 | ||
| WASHER SPRING 8MM | 461 | 461F0800 | 4 |
