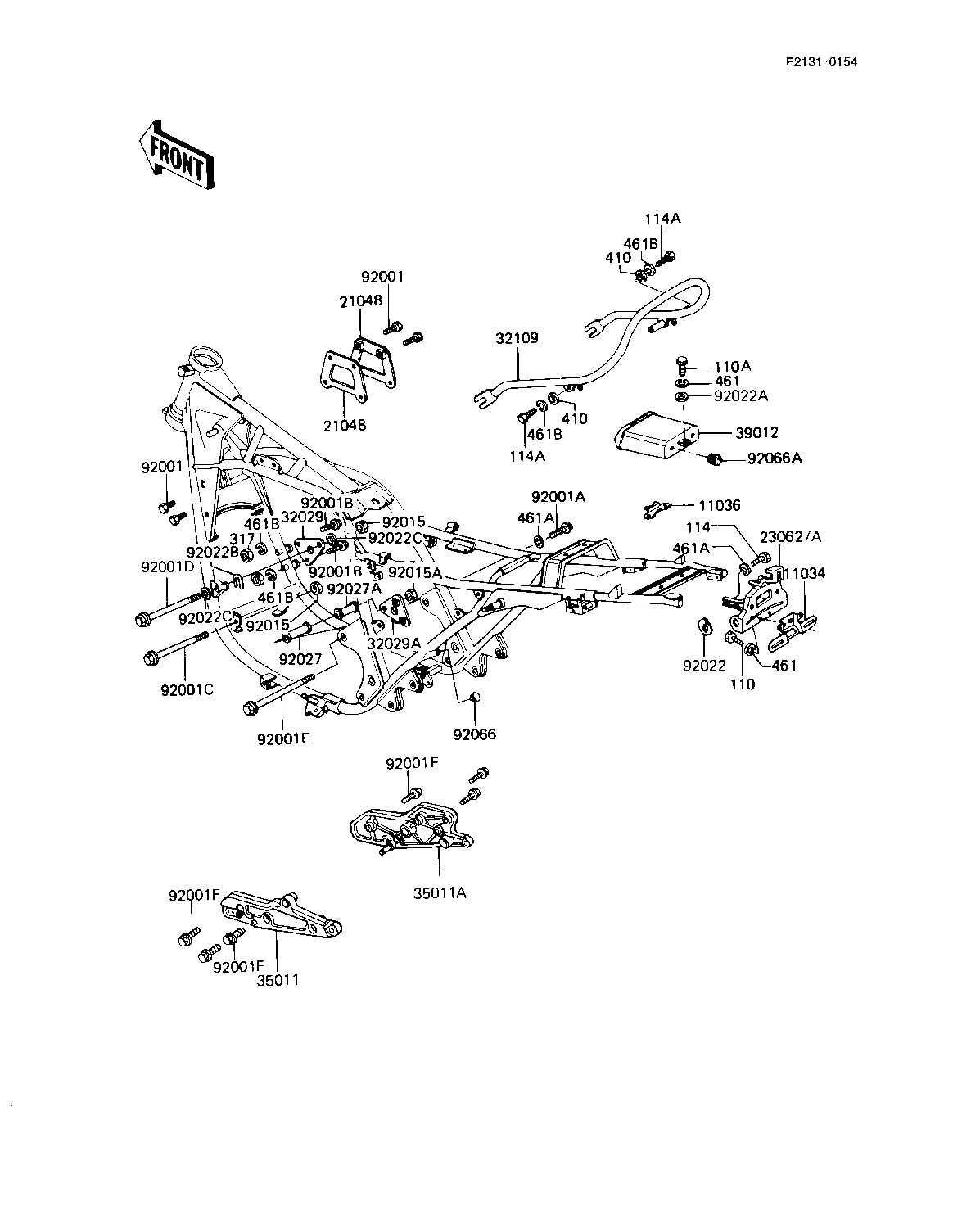

1982 Eddie Lawson Replica - FRAME FITTINGS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11034 11034-1922 1
BRACKET-A,STORAGE 11036 11036-1070 1
PLATE,IGNITION COIL 21048 21048-1001 2
BRACKET-COMP,TL LAMP 23062 23062-1032 1
BRACKET-ENGINE 32029 32029-1142 1
BRACKET-ENGINE 32029A 32029-1143 1
GRIP-FRAME 32109 32109-1029 1
STAY,MUFFLER,LH 35011 35011-1207 1
STAY,MUFFLER,RH 35011A 35011-1208 1
CASE-STORAGE 39012 39012-1014 1
BOLT,HEX HEAD,6MM 92001 92001-137 4
BOLT,FLANGED,8X40,BLA 92001A 92001-1612 2
BOLT,FLANGED,8X65,BLA 92001B 92001-1616 2
BOLT,FLANGED,10X155,B 92001C 92001-1620 1
BOLT,FLANGED,10X320,B 92001D 92001-1624 1
BOLT,FLANGED,12X285 92001E 92001-1655 1
BOLT-FLANGED,8X35,BLA 92001F 131J0835 6
NUT,LOCK,10MM,BLACK 92015 92015-1189 2
NUT,LOCK,12MM,BLACK 92015A 92015-1190 1
WASHER,SIGNAL LAMP BR 92022 92022-1230 2
WASHER 6.5X20X1.6T 92022A 92022-125 1
WASHER,U FORMED 92022B 92022-1259 1
WASHER,PLAIN 92022C 92022-1022 2
COLLAR,13X25X54 92027 92027-1310 1
COLLAR,13X25X29.5 92027A 92027-1311 1
PLUG,FRAME END 92066 92066-1034 1
RUBBER PLUG 92066A 92074-038 2
BOLT-UPSET,6X12 110 112G0612 2
BOLT-UPSET,6X16 110A 112G0616 1
BOLT-SMALL-UPSET,8X16 114 115G0816 4
BOLT-SMALL,8X70,BLACK 114A 115C0870 2
NUT-HEX-SMALL,8MM,BLA 317 317C0800 2
WASHER,PLAIN,8MM 410 92022-1554 2
WASHER SPRING 6MM 461 461F0600 3
WASHER SPRING 8MM 461A 461F0800 4
WASHER-SPRING,8MM,BLA 461B 461K0800 4
