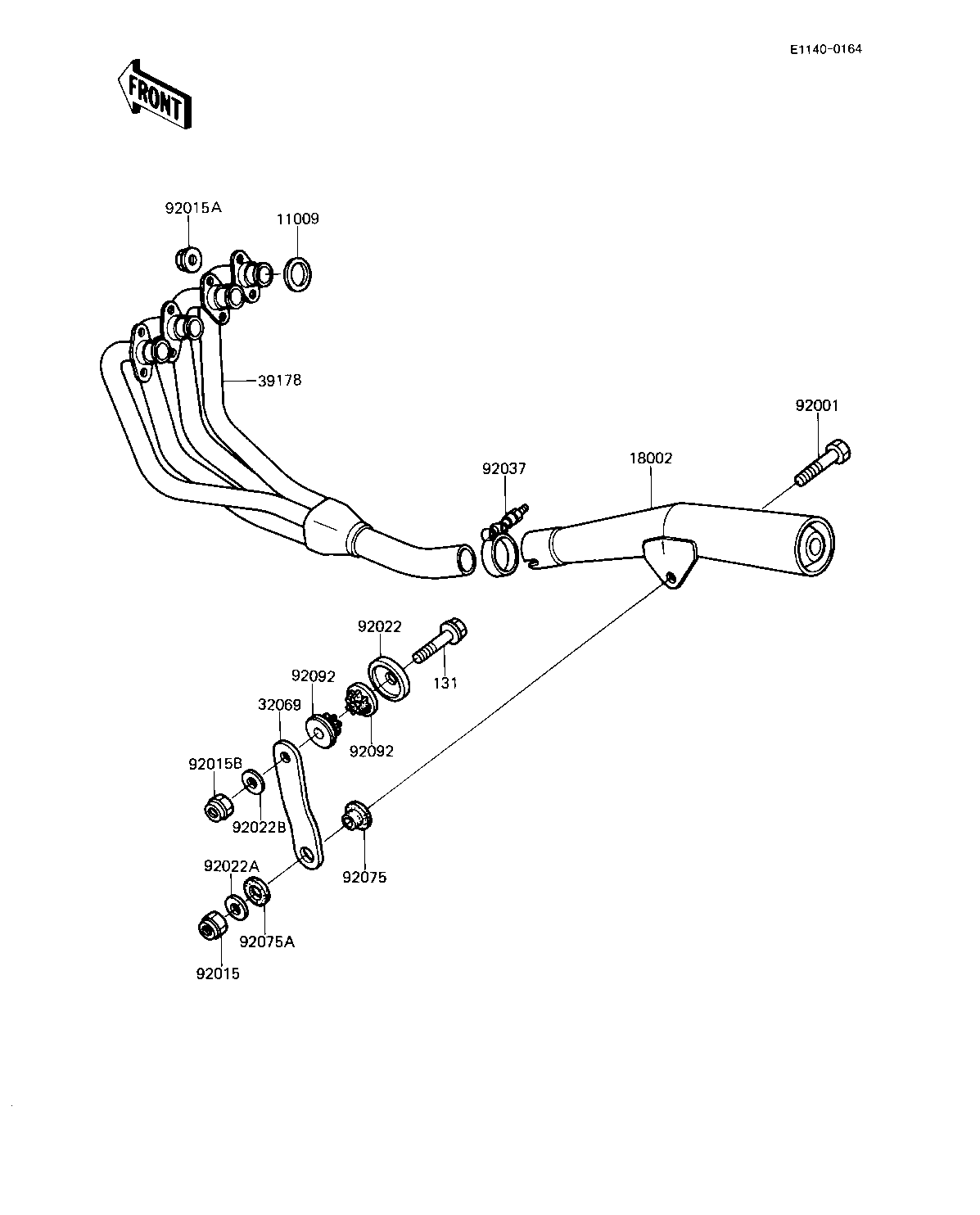

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,EXHAUST PIPE H | 11009 | 11009-1906 | 4 | ||
| BODY-COMP-MUF 6064 | 18002 | 18002-1284 | 1 | ||
| BRACKET-MUF 440-53-45 | 32069 | 32069-1119 | 1 | ||
| MANIFOLD-COMP-5472 | 39178 | 39178-1016 | 1 | ||
| BOLT 16X24 031-09-17 | 92001 | 92001-1713 | 1 | ||
| NUT 5/16 050-05-05 | 92015 | 92015-1225 | 1 | ||
| NUT,LOCK,8MM,BLACK | 92015A | 92015-1302 | 8 | ||
| NUT,LOCK,10MM | 92015B | 92019-021 | 1 | ||
| WASHER,CUP TYPE,BLACK | 92022 | 92022-1313 | 1 | ||
| WASHER 5/16 041-13-10 | 92022A | 92022-1363 | 1 | ||
| WASHER 3/8 041-15-15 | 92022B | 92022-1364 | 1 | ||
| CLAMP-MUF 440-50-05 | 92037 | 92037-1354 | 1 | ||
| DAMPER-MUF 440-50-06 | 92075 | 92075-1406 | 1 | ||
| DAMPER-MUF 440-50-07 | 92075A | 92075-1407 | 1 | ||
| BUSHING-RUBBER | 92092 | 92092-1013 | 2 | ||
| BOLT-FLANGED,10X55 | 131 | 131J1055 | 1 |
| GASKET,EXHAUST PIPE H | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BODY-COMP-MUF 6064 | |
| REF # | 18002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-MUF 440-53-45 | |
| REF # | 32069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MANIFOLD-COMP-5472 | |
| REF # | 39178 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT 16X24 031-09-17 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 5/16 050-05-05 | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,8MM,BLACK | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,10MM | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,CUP TYPE,BLACK | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER 5/16 041-13-10 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER 3/8 041-15-15 | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP-MUF 440-50-05 | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER-MUF 440-50-06 | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER-MUF 440-50-07 | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING-RUBBER | |
| REF # | 92092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X55 | |
| REF # | 131 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
