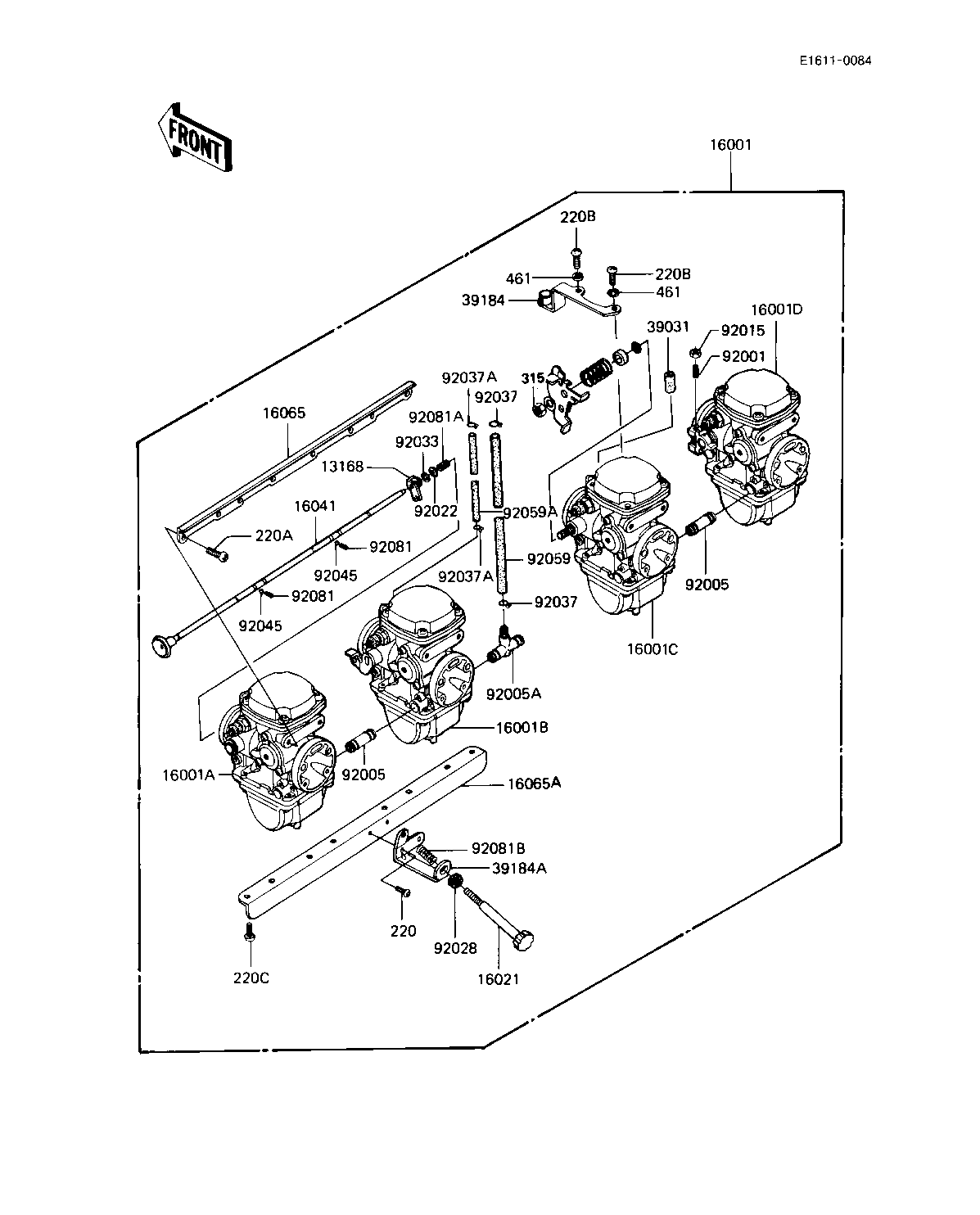

1982 Eddie Lawson Replica - CARBURETOR ASSY (KZ1000-R1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER,CHOCK 13168 13168-1091 4
CARBURETOR 16001 16001-1587 1
CARBURETOR,LH,OUTSIDE 16001A 16001-1588 1
CARBURETOR,LH,INSIDE 16001B 16001-1589 1
CARBURETOR,RH,INSIDE 16001C 16001-1590 1
CARBURETOR,RH,OUTSIDE 16001D 16001-1591 1
SCREW-THROTTLE STOP 16021 16021-1035 1
SHAFT-CARBURETOR,CHOC 16041 16041-1024 1
HOLDER-CARBURETOR,UPP 16065 16065-1044 1
HOLDER-CARBURETOR,LWR 16065A 16065-1065 1
CAP-END 39031 39031-1009 1
BRACKET-ASSY,THROTTLE 39184 39184-1006 1
BRACKET-ASSY,IDLING A 39184A 39184-1007 1
BOLT,ADJUSTING 92001 92001-1447 3
FITTING,FUEL 92005 92005-1035 2
FITTING,FUEL 92005A 92005-1036 1
NUT,THROTTLE VLV ADST 92015 92015-1119 3
WASHER,SPRING 92022 92022-1255 4
BUSHING 92028 92028-1071 1
RING-SNAP,E 92033 92033-1066 4
CLAMP,HOSE 92037 92037-1184 2
CLAMP,BREATHER HOSE 92037A 92037-174 2
BALL,STEEL,1/8" 92045 600A0400 2
TUBE,7.5X12.5X250 92059 92059-1187 1
TUBE,5X9X150 92059A 92059-1188 1
SPRING,FAST IDLE SHFT 92081 92081-1260 2
SPRING,CHOCK SHAFT 92081A 92081-1364 4
SPRING,IDLING ADJUST 92081B 92081-1377 1
SCREW PAN HEAD 5X8 220 220B0508 1
SCREW-PAN-CROS 220A 220C0510 8
SCREW-PAN-CROS,5X18,B 220B 220C0518A 2
SCREW-PAN-CROS, 6X14 220C 220C0614 8
NUT,8 M/M 315 315G0800 1
WASHER-SPRING,5MM,BLA 461 461K0500 2
