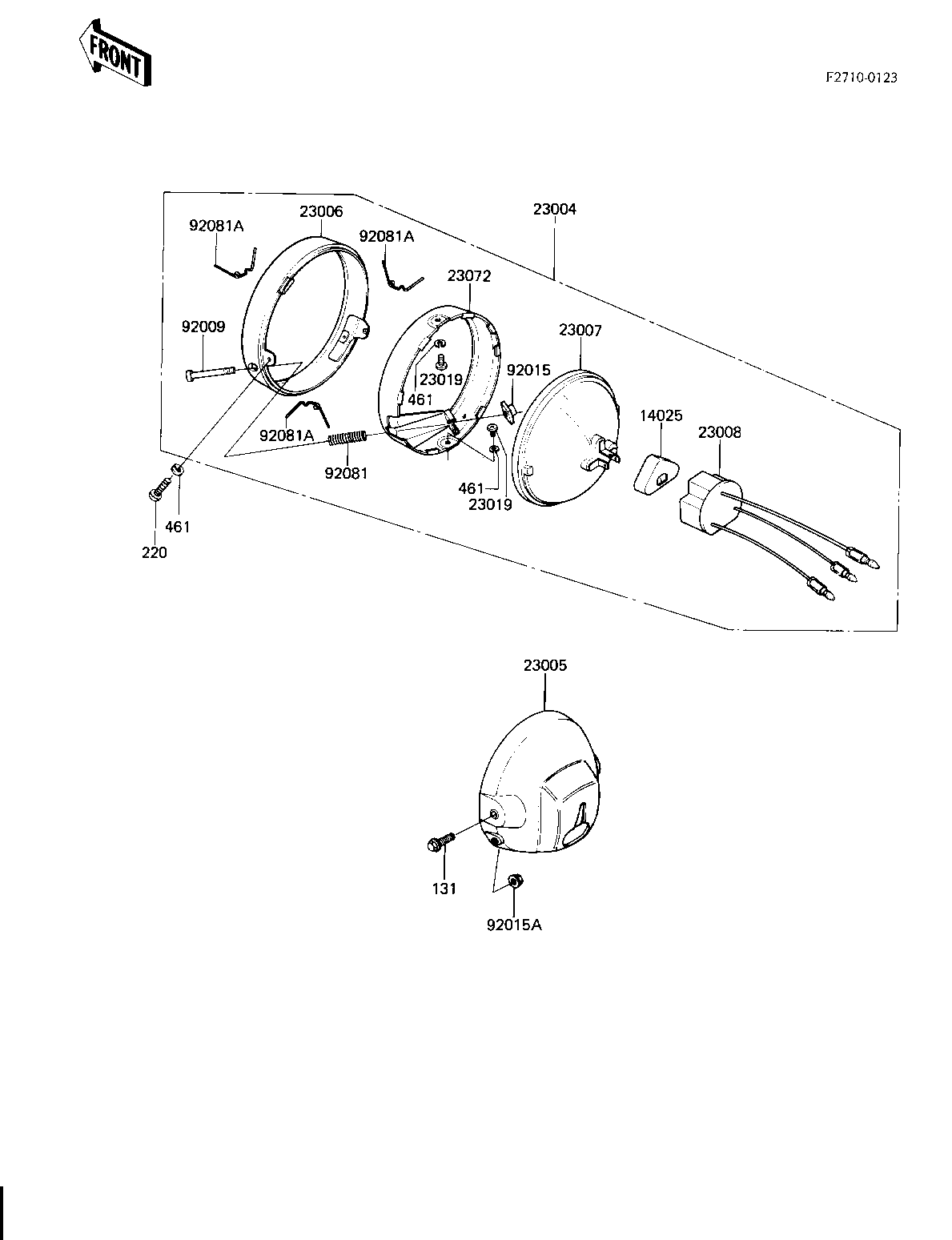

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,HD LAMP SOCKET | 14025 | 23081-001 | 1 | ||
| LAMP-HEAD | 23004 | 23004-1078 | 1 | ||
| BODY-COMP-HEAD LAMP,B | 23005 | 23005-1017-6Z | 1 | ||
| RIM-LAMP,HEAD | 23006 | 23006-1018 | 1 | ||
| SEALED BEAM UNIT | 23007 | 23007-055 | 1 | ||
| SOCKET-ASSY | 23008 | 23008-1125 | 1 | ||
| SCREW,LENS FITTING | 23019 | 23019-031 | 2 | ||
| RETAINER,HEAD LAMP | 23072 | 23072-005 | 1 | ||
| SCREW,FOCUS ADJUST | 92009 | 23019-027 | 1 | ||
| NUT ADJUST | 92015 | 23020-012 | 1 | ||
| NUT,8M/M | 92015A | 92015-1014 | 2 | ||
| SPRING,FOCUS ADJUST | 92081 | 23014-012 | 1 | ||
| SPRING,HEAD LAMP LENS | 92081A | 92081-1144 | 3 | ||
| BOLT-FLANGED,8X20 | 131 | 131B0820 | 2 | ||
| SCREW PAN HEAD 5X12 | 220 | 220B0512 | 2 | ||
| WASHER SPRING 5MM | 461 | 461F0500 | 4 |
| COVER,HD LAMP SOCKET | |
| REF # | 14025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LAMP-HEAD | |
| REF # | 23004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY-COMP-HEAD LAMP,B | |
| REF # | 23005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM-LAMP,HEAD | |
| REF # | 23006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEALED BEAM UNIT | |
| REF # | 23007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-ASSY | |
| REF # | 23008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,LENS FITTING | |
| REF # | 23019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RETAINER,HEAD LAMP | |
| REF # | 23072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,FOCUS ADJUST | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT ADJUST | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8M/M | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,FOCUS ADJUST | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,HEAD LAMP LENS | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X20 | |
| REF # | 131 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 5X12 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 5MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
