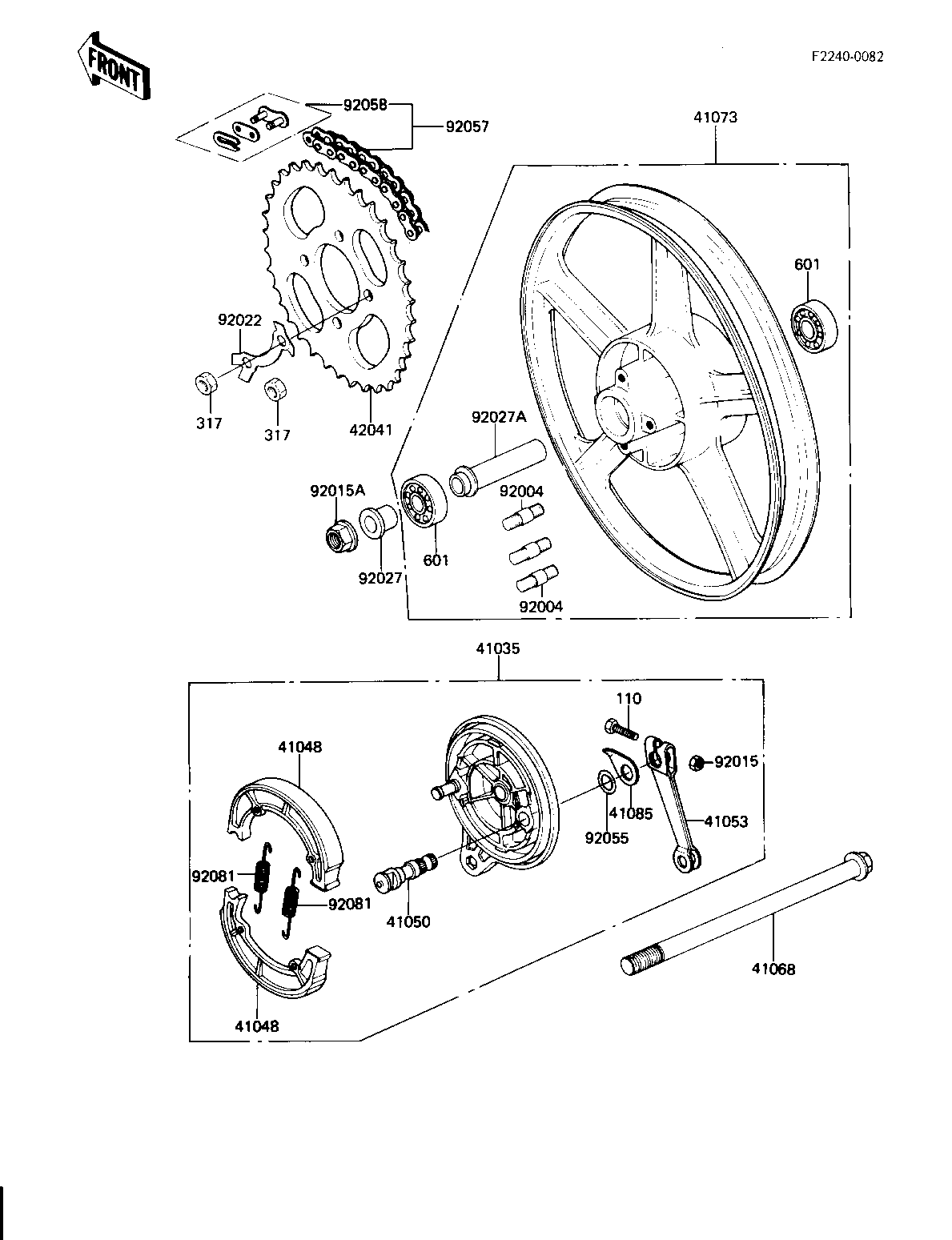

1982 AR80-A1 - REAR WHEEL/HUB/BRAKE/CHAIN
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PANEL-ASY,RR BRK | 41035 | 41035-1048 | 1 | ||
| SHOE-BRAKE | 41048 | 41048-1085 | 2 | ||
| CAM SHAFT,FRONT BRAKE | 41050 | 41050-012 | 1 | ||
| LEVER-BRAKE CAM | 41053 | 41053-1002 | 1 | ||
| AXLE,RR,L=200 | 41068 | 41068-1093 | 1 | ||
| WHEEL-ASSY,SOLID | 41073 | 41073-1133 | 1 | ||
| INDICATOR,BKSHOE | 41085 | 41085-003 | 1 | ||
| SPROCKET-HUB,43T | 42041 | 42041-1062 | 1 | ||
| STUD,8X15 | 92004 | 92004-1014 | 4 | ||
| NUT,6MM | 92015 | 41072-007 | 1 | ||
| NUT-12MM | 92015A | 92015-1156 | 1 | ||
| WASHER | 92022 | 92022-1291 | 2 | ||
| COLLAR,12.1X22X20 | 92027 | 92027-1317 | 2 | ||
| COLLAR,L=85 | 92027A | 92027-1319 | 1 | ||
| "0" RING,11MM | 92055 | 92055-004 | 1 | ||
| CHAIN,DRIVE,EK420RX11 | 92057 | 92057-1335 | 1 | ||
| JOINT-CHAIN | 92058 | 92058-1019 | 1 | ||
| SPRING,BRAKE SHOE | 92081 | 92081-1766 | 2 | ||
| BOLT-UPSET | 110 | 112G0630 | 1 | ||
| NUT,8M/M | 317 | 317B0800 | 4 | ||
| BEARING BALL #6301Z | 601 | 601B6301Z | 2 |
| PANEL-ASY,RR BRK | |
| REF # | 41035 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHOE-BRAKE | |
| REF # | 41048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAM SHAFT,FRONT BRAKE | |
| REF # | 41050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-BRAKE CAM | |
| REF # | 41053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE,RR,L=200 | |
| REF # | 41068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WHEEL-ASSY,SOLID | |
| REF # | 41073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INDICATOR,BKSHOE | |
| REF # | 41085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-HUB,43T | |
| REF # | 42041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STUD,8X15 | |
| REF # | 92004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT-12MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,12.1X22X20 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=85 | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,11MM | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAIN,DRIVE,EK420RX11 | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT-CHAIN | |
| REF # | 92058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE SHOE | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8M/M | |
| REF # | 317 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6301Z | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
