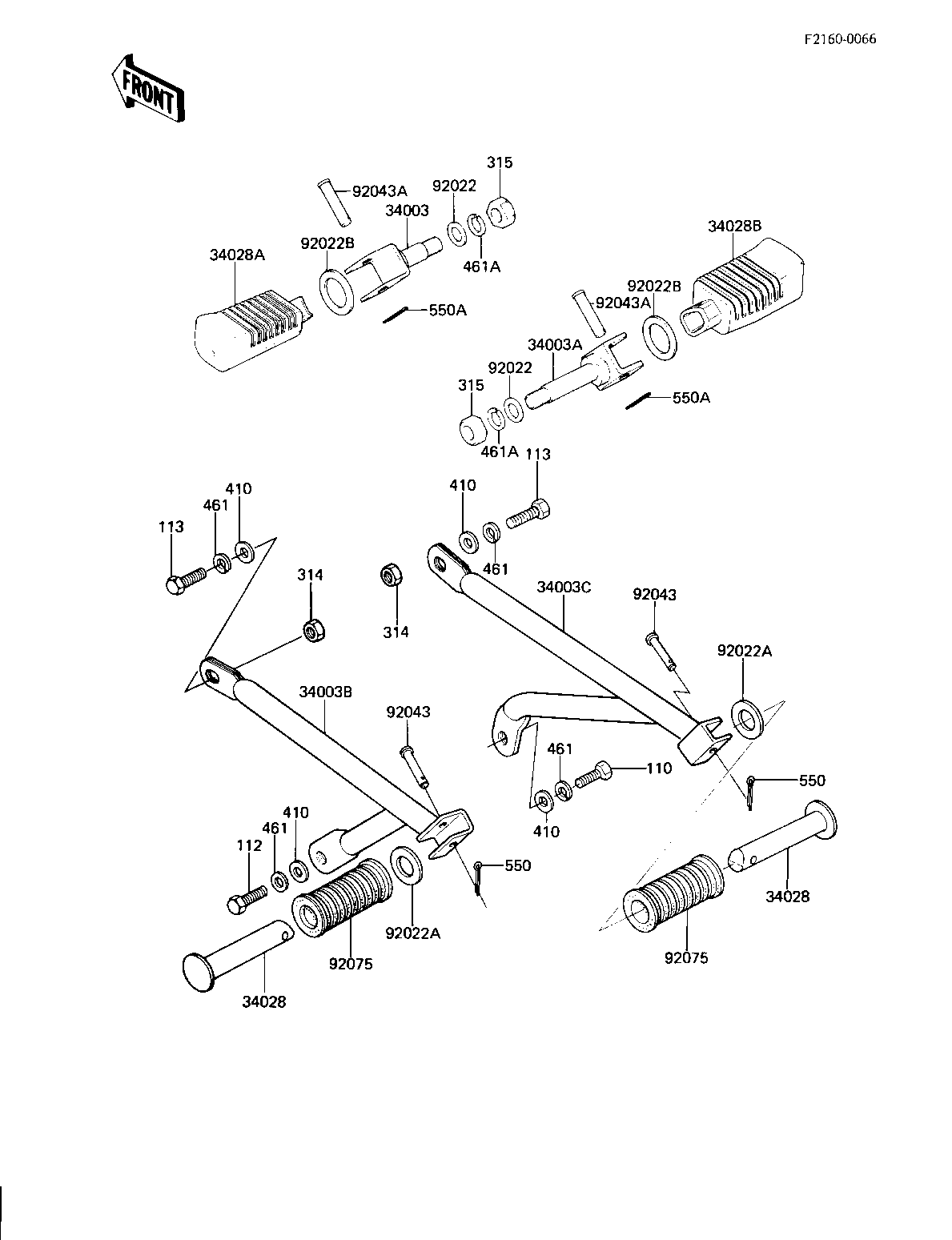

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER-STEP,FR,LH | 34003 | 34003-1138 | 1 | ||
| HOLDER-STEP,FR,RH | 34003A | 34003-1139 | 1 | ||
| HOLDER-STEP,RR,LH | 34003B | 34003-1140 | 1 | ||
| HOLDER-STEP,RR,RH | 34003C | 34003-1141 | 1 | ||
| BAR-RR FOOTREST (OPT) | 34028 | 34028-009 | 2 | ||
| STEP-ASSY,FR,LH | 34028A | 34027-1114 | 1 | ||
| STEP-ASSY,FR,RH | 34028B | 34027-1115 | 1 | ||
| WASHER,12.5X28X3.0 | 92022 | 92022-1228 | 2 | ||
| WASHER-PLAIN (OPT) | 92022A | 92022-199 | 2 | ||
| WASHER,PLAIN | 92022B | 92022-250 | 2 | ||
| PIN | 92043 | 92043-1464 | 2 | ||
| PIN-FOOTREST BAR FIT | 92043A | 92043-080 | 2 | ||
| RUBBER,REAR FOOTREST | 92075 | 92076-024 | 2 | ||
| BOLT HEX HEAD 10X25 | 110 | 110B1025 | 1 | ||
| BOLT-UPSET,10X22 | 112 | 112B1022 | 1 | ||
| BOLT,HEX HEAD,10X25 | 113 | 113G1025 | 2 | ||
| NUT,10MM | 314 | 314B1000 | 2 | ||
| NUT-HEX-FINE,12MM | 315 | 315B1200 | 2 | ||
| WASHER PLAIN 10MM | 410 | 410B1000 | 4 | ||
| WASHER SPRING 10MM | 461 | 461F1000 | 4 | ||
| WASHER SPRING 12MM | 461A | 461F1200 | 2 | ||
| PIN COTTER 2.0X15 | 550 | 550D2015 | 2 | ||
| PIN,COTTER,2.5X15 | 550A | 550D2515 | 2 |
