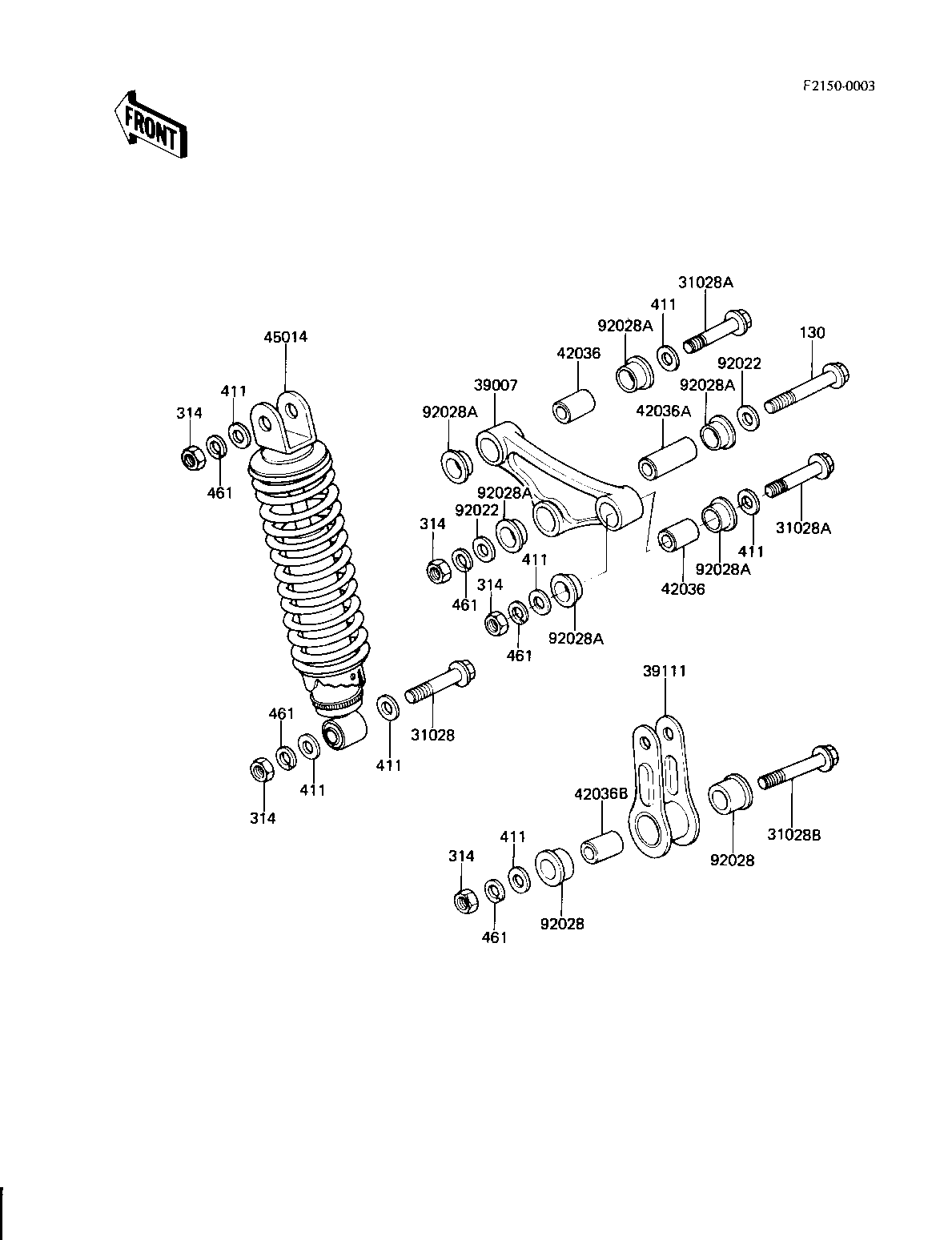

1982 AR80-A1 - REAR SUSPENSION/SHOCK ABSORBER
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-SHOCKABSORBER,1 | 31028 | 31028-1002 | 1 | ||
| SHAFT-SHOCKABSORBER,1 | 31028A | 31028-1003 | 2 | ||
| SHAFT-SHOCKABSORBER,1 | 31028B | 31028-1004 | 1 | ||
| ARM-SUSP,UNITRAK | 39007 | 39007-1005 | 1 | ||
| ROD-TIE,UNITRAK | 39111 | 39111-1008 | 1 | ||
| SLEEVE,10.1X17X26 | 42036 | 42036-1041 | 2 | ||
| SLEEVE,11X17X46 | 42036A | 42036-1044 | 1 | ||
| SLEEVE,11X17X35 | 42036B | 42036-1047 | 1 | ||
| SHOCK ABSBR RR | 45014 | 45014-1085 | 1 | ||
| WASHER-PLN,10X22X3.2 | 92022 | 92022-176 | 2 | ||
| BUSHING,RR SHOCKABSOR | 92028 | 92028-1129 | 2 | ||
| BUSHING,SUSPENSION | 92028A | 92028-1130 | 6 | ||
| BOLT-FLANGED,10X65 | 130 | 130G1065 | 1 | ||
| NUT,10MM | 314 | 314B1000 | 5 | ||
| WASHER PLAIN 10MM | 411 | 411B1000 | 7 | ||
| WASHER SPRING 10MM | 461 | 461F1000 | 5 |
