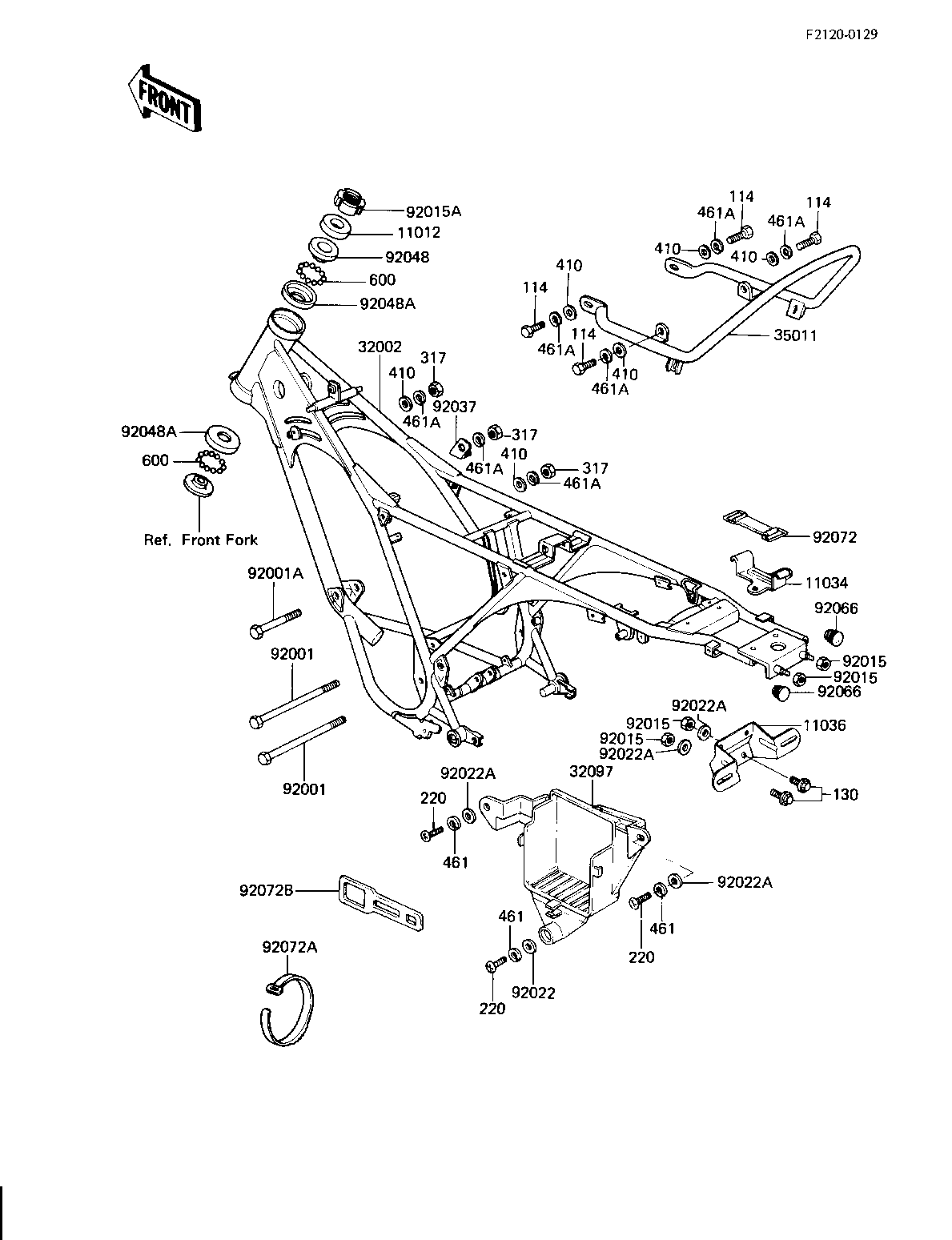

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP STEERING STEM | 11012 | 46098-004 | 1 | ||
| BRACKET,TOOL KIT | 11034 | 11034-1991 | 1 | ||
| BRACKET,NUMBER PLATE | 11036 | 11036-1509 | 1 | ||
| FRAME-COMP | 32002 | 32002-1489 | 1 | ||
| CASE-BATTERY | 32097 | 32097-1032 | 1 | ||
| STAY,REAR | 35011 | 35011-1134 | 1 | ||
| BOLT,8X130 | 92001 | 92001-1370 | 2 | ||
| BOLT,8X70 | 92001A | 92001-1389 | 1 | ||
| NUT,LOCK 6MM | 92015 | 92017-014 | 4 | ||
| NUT STEERING STEM LCK | 92015A | 92090-006 | 1 | ||
| WASHER PLAIN | 92022 | 92022-024 | 1 | ||
| WASHER 6.5X20X1.6T | 92022A | 92022-125 | 4 | ||
| GUIDE,HOSE | 92037 | 13070-1232 | 1 | ||
| CONE,STRG STM BRG,UP | 92048 | 92047-014 | 1 | ||
| RACE,STRG STM BEARING | 92048A | 92048-009 | 2 | ||
| PLUG,18X3 | 92066 | 32112-009 | 2 | ||
| BAND TOOL | 92072 | 92072-012 | 1 | ||
| BAND,SHORT | 92072A | 92072-030 | 1 | ||
| BAND,BATTERY | 92072B | 92072-1050 | 1 | ||
| BOLT-SMALL-UPSET,8X22 | 114 | 115B0822 | 4 | ||
| BOLT | 130 | 130B0612 | 2 | ||
| SCREW PAN HEAD 6X14 | 220 | 220B0614 | 3 | ||
| NUT,8M/M | 317 | 317B0800 | 3 | ||
| WASHER PLAIN 8MM | 410 | 410B0800 | 6 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 3 | ||
| WASHER SPRING 8MM | 461A | 461F0800 | 7 | ||
| BALL STEEL 3/16' | 600 | 600A0600 | 46 |
| CAP STEERING STEM | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,TOOL KIT | |
| REF # | 11034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,NUMBER PLATE | |
| REF # | 11036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME-COMP | |
| REF # | 32002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-BATTERY | |
| REF # | 32097 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,REAR | |
| REF # | 35011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X130 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X70 | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK 6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT STEERING STEM LCK | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GUIDE,HOSE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONE,STRG STM BRG,UP | |
| REF # | 92048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RACE,STRG STM BEARING | |
| REF # | 92048A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLUG,18X3 | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND TOOL | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,SHORT | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,BATTERY | |
| REF # | 92072B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SMALL-UPSET,8X22 | |
| REF # | 114 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X14 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| NUT,8M/M | |
| REF # | 317 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 8MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 461A |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| BALL STEEL 3/16' | |
| REF # | 600 |
|---|---|
| PART NUMBER | |
| QUANTITY | 46 |
| DESTINATION | |
| REMARKS | |
