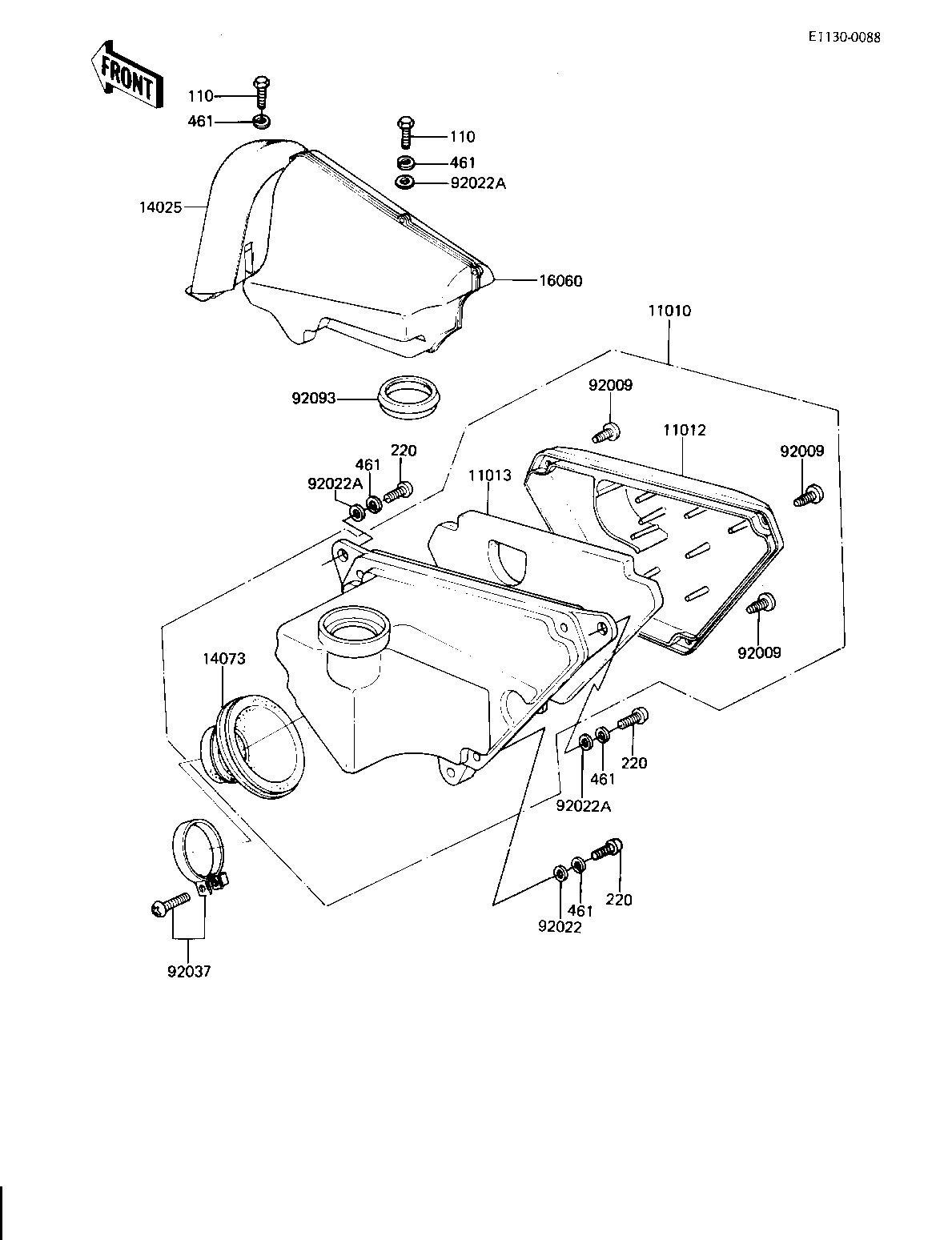

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER-ASSY-AIR | 11010 | 11010-1146 | 1 | ||
| CAP,AIR FILTER | 11012 | 11012-1255 | 1 | ||
| ELEMENT,AIR CLNR | 11013 | 11013-1038 | 1 | ||
| COVER,INTAKE PIPE | 14025 | 14025-1504 | 1 | ||
| DUCT,AIR FILTER | 14073 | 14073-1081 | 1 | ||
| PIPE-INTAKE,SILENCER" | 16060 | 16060-1006 | 1 | ||
| SCREW,TAPPING | 92009 | 92009-1113 | 3 | ||
| WASHER,SPLINE | 92022 | 92022-1113 | 3 | ||
| WASHER 6.5X20X1.6T | 92022A | 92022-125 | 3 | ||
| CLAMP,CARBURETOR,40MM | 92037 | 92037-1129 | 1 | ||
| SEAL,AIR FILTER SILEN | 92093 | 92093-1050 | 1 | ||
| BOLT-UPSET,6X16 | 110 | 112G0616 | 2 | ||
| SCREW PAN HEAD 6X16 | 220 | 220B0616 | 3 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 5 |
| FILTER-ASSY-AIR | |
| REF # | 11010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,AIR FILTER | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELEMENT,AIR CLNR | |
| REF # | 11013 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,INTAKE PIPE | |
| REF # | 14025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,AIR FILTER | |
| REF # | 14073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-INTAKE,SILENCER" | |
| REF # | 16060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER,SPLINE | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CLAMP,CARBURETOR,40MM | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL,AIR FILTER SILEN | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X16 | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X16 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
