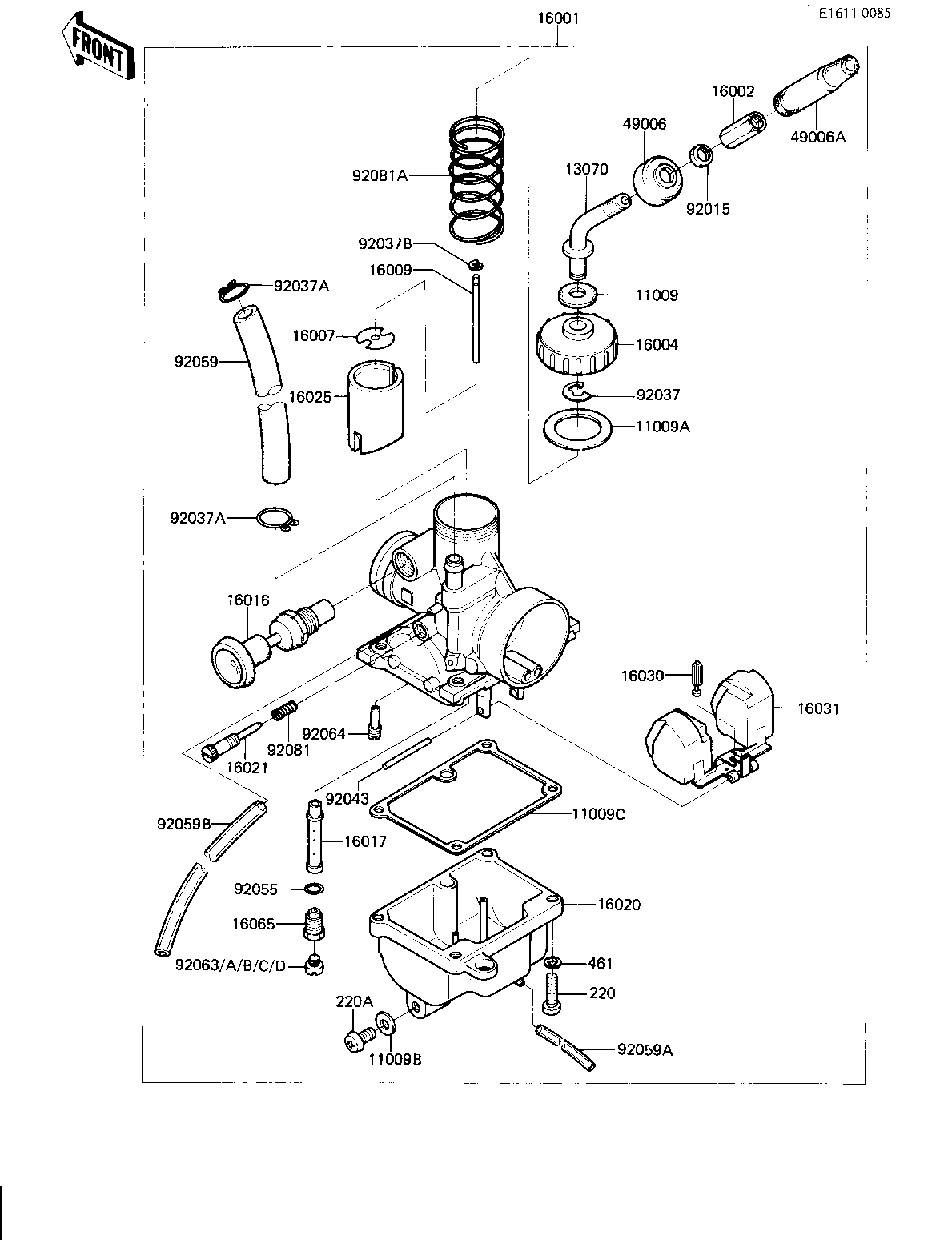

1982 AR80-A1 - CARBURETOR 1/2

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CABLE GUIDE 11009 11009-1074 1
GASKET,MIXING CHAMBER 11009A 11009-1295 1
GASKET,DRAIN PLUG 11009B 11009-1296 1
GASKET,FLOAT CHAMBER 11009C 11009-1297 1
GUIDE,THROTTLE CABLE 13070 13070-1068 1
CARBURETOR 16001 16001-1585 1
ADJUSTER-CABLE 16002 16002-1011 1
CAP-CHAMBER,MIXING 16004 16004-1016 1
SEAT-SPRING 16007 16007-1044 1
NEEDLE-JET,4D44 16009 16009-1124 1
PLUNGER,STARTER 16016 16016-1025 1
JET-NEEDLE,O-5 16017 16017-1115 1
CHAMBER-FLOAT 16020 16020-1006 1
SCREW-THROTTLE STOP 16021 16021-1036 1
VALVE-THROTTLE,CA1.5 16025 16025-1076 1
VALVE-FLOAT 16030 16030-1026 1
FLOAT 16031 16031-1020 1
HOLDER,NEEDLE JET 16065 16065-1062 1
BOOT,MIXING CHAMBER C 49006 49006-1083 1
BOOT,CABLE ADJUSTER 49006A 49006-1084 1
NUT CABLE ADJUST LOCK 92015 16003-004 1
CIRCLIP,CABLE GUIDE 92037 16008-011 1
CLAMP-PIPE 92037A 92037-072 2
CLAMP 92037B 92037-1272 1
PIN,FLOAT 92043 92043-1126 1
"0" RING 92055 92055-044 1
HOSE,FUEL TAP DIAPHRA 92059 92059-1023 1
TUBE,3X5X250,BLACK 92059A 92059-1308 1
TUBE,3X5X85 92059B 92059-1244 1
JET-MAIN,#A60R 92063 92063-1124 1
JET-MAIN,#A62.5R 92063A 92063-1125 1
JET-MAIN,#A65R 92063B 92063-1126 1
JET-MAIN,#A57.5R 92063C 92063-1127 1
JET-MAIN,#A67.5R 92063D 92063-1128 1
JET-PILOT,#A25 92064 92064-1059 1
SPRING,AIR SCREW 92081 92081-1153 1
SPRING,THROTTLE VALVE 92081A 92081-1490 1
SCREW PAN HEAD 4X16 220 220B0416 4
SCREW PAN HEAD 5X8 220A 220B0508 1
WASHER SPRING 4MM 461 461F0400 4
