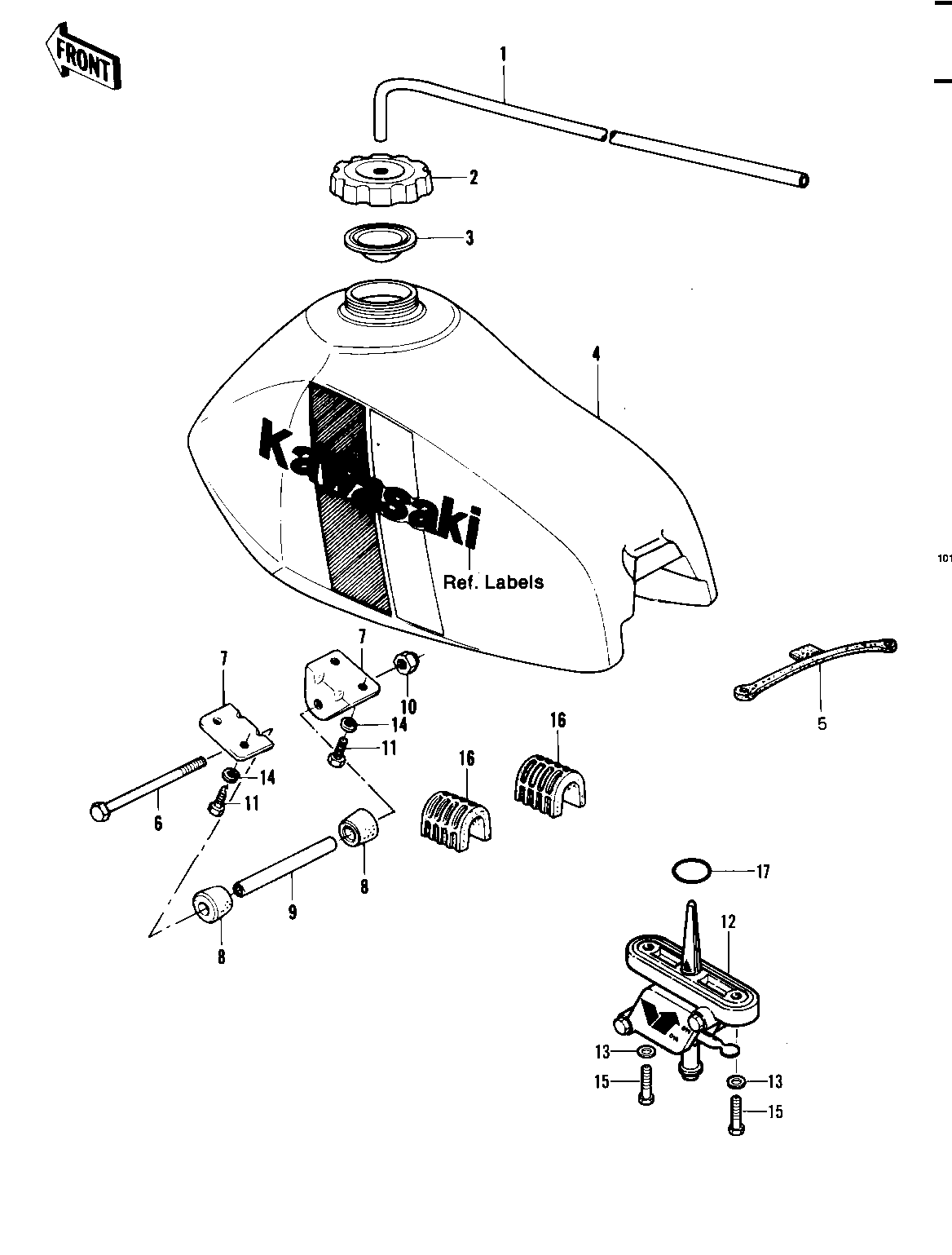

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TUBE,5X7X500 1 92059-4001 1
CAP-TANK,FUEL 2 51049-1060 1
GASKET,FUEL TANK CAP 3 11009-4001 1
TANK-FUEL,GREEN 4 51001-4004-6W 1
BAND,FUEL TANK 5 92072-042 1
BOLT-UPSET,6X105 6 112G06105 1
BRACKET,TANK 7 32052-1031 2
DAMPER,FUEL TANK FITT 8 92075-1220 2
COLLAR,FUEL TANK FITT 9 92027-1228 1
NUT 10 92019-008 1
BOLT-UPSET,6X12 11 112G0612 4
COCK ASSY,FUEL 12 51023-4002 1
WASHER-PLAIN 13 92022-183 2
WASHER SPRING 6MM 14 461F0600 4
BOLT-HEX HEAD,6X16 15 92001-114 2
DAMPER,FUEL TANK 16 92075-1221 2
"0" RING,31MM 17 92055-049 1
