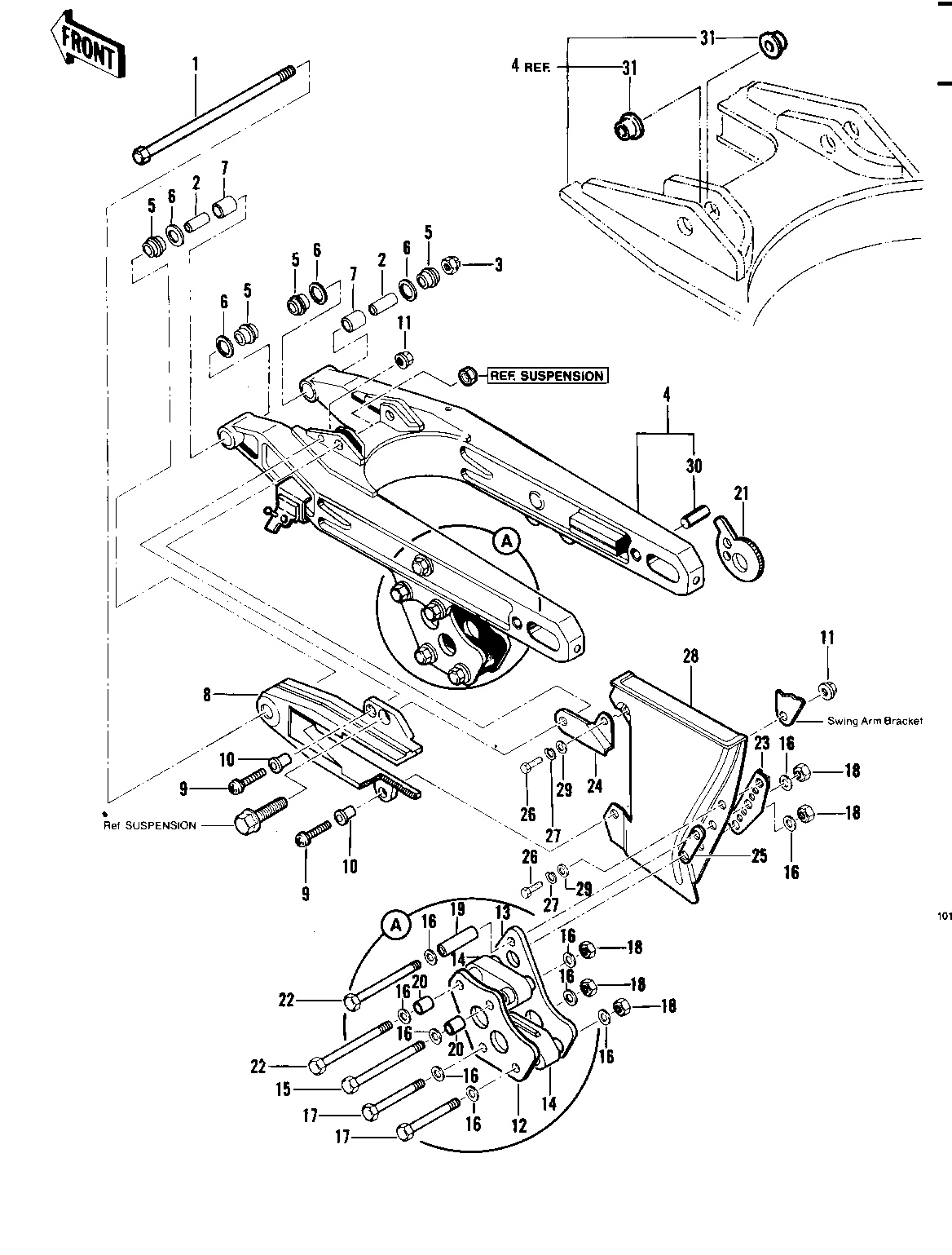

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-SWING ARM | 1 | 33032-1020 | 1 | ||
| SLEEVE,SWING ARM | 2 | 42036-1031 | 2 | ||
| NUT-LOCK,14MM | 3 | 92019-011 | 1 | ||
| SWING ARM | 4 | 33001-4004 | 1 | FORGED | |
| CAP,SWING ARM | 5 | 11012-1099 | 4 | ||
| SHIM,SWING ARM | 6 | 92025-1116 | 4 | ||
| BUSHING | 7 | 92028-1072 | 2 | ||
| GUIDE,CHAIN | 8 | 12053-4001 | 1 | ||
| SCREW,6X20 | 9 | 92009-1289 | 2 | ||
| COLLAR | 10 | 92027-1260 | 2 | L=3.5 MM | |
| NUT-6MM | 11 | 92015-1078 | 2 | ||
| GUARD,CHAIN | 12 | 55020-4009 | 1 | ||
| GUARD,CHAIN | 13 | 55020-4010 | 1 | ||
| GUIDE,CHAIN | 14 | 12053-1015 | 2 | ||
| BOLT-UPSET | 15 | 112G0660 | 1 | ||
| WASHER PLAIN 6MM | 16 | 411B0600 | 10 | ||
| BOLT-UPSET | 17 | 112G0645 | 2 | ||
| NUT | 18 | 92019-008 | 5 | ||
| COLLAR | 19 | 92027-4016 | 1 | ||
| COLLAR | 20 | 92027-4017 | 2 | ||
| ADJUSTER-CHAIN,LH | 21 | 33040-1060 | 2 | ||
| BOLT,6X70 | 22 | 110G0670 | 2 | ||
| BRACKET,CHAIN CASE,F | 23 | 11034-1841 | 1 | ||
| BRACKET,CHAIN CASE | 24 | 11034-4076 | 1 | ||
| BRACKET,CHAIN CASE | 25 | 11034-4077 | 1 | ||
| BOLT-UPSET 6X14 | 26 | 112B0614 | 2 | ||
| WASHER SPRING 6MM | 27 | 461F0600 | 2 | ||
| CASE-CHAIN | 28 | 36014-4005 | 1 | ||
| WASHER 6.5X20X1.6T | 29 | 92022-125 | 2 | ||
| PIN,DOWEL,8X25 | 30 | 551A0825 | 2 | ||
| COLLAR-SWING ARM | 31 | 92027-1229 | 4 |
