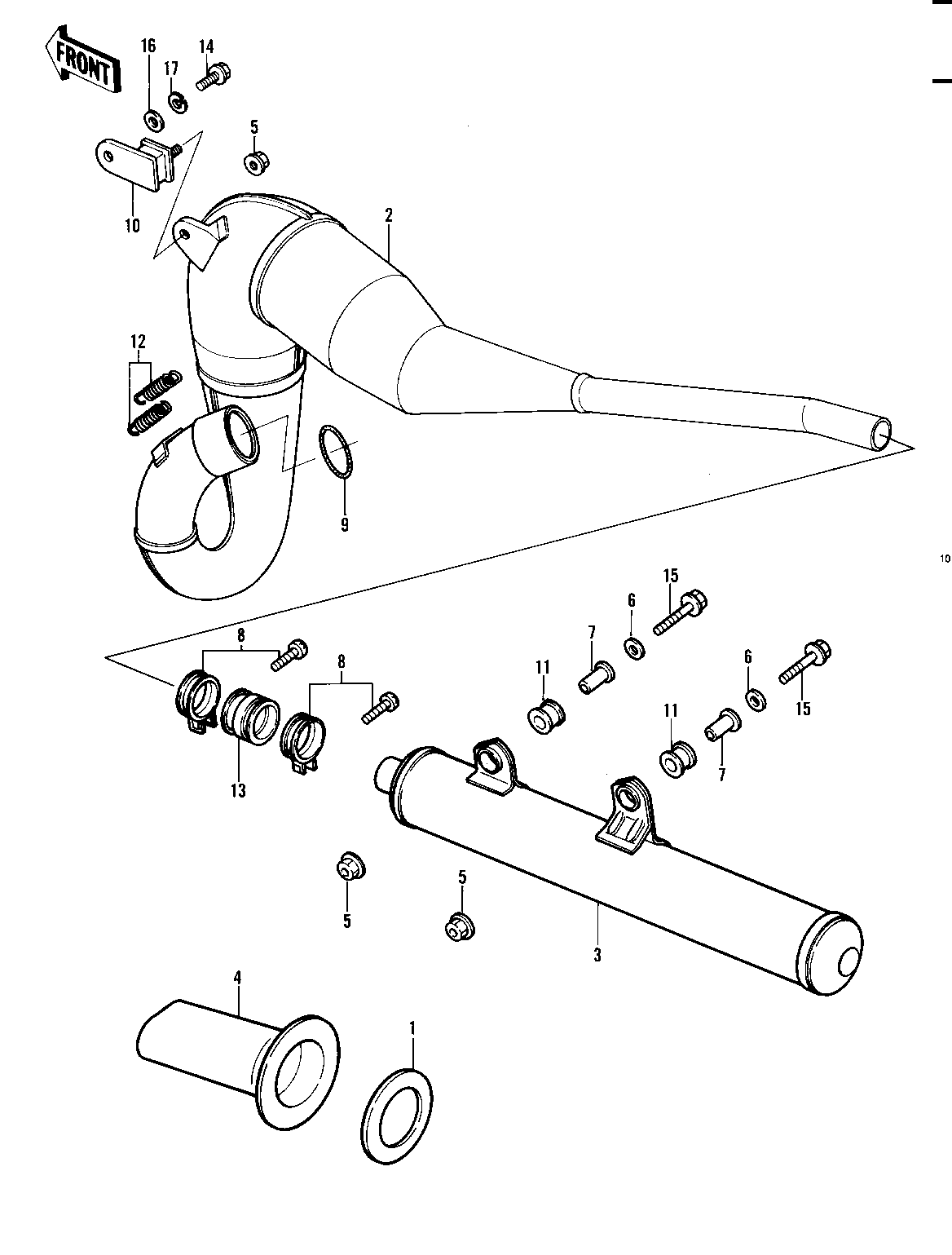

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CHOKE PLATE | 1 | 13169-4008 | 1 | OPTION | |
| BODY-COMP-MUFFLER | 2 | 18002-1191 | 1 | ||
| BODY-COMP-MUFFLER | 3 | 18002-1192 | 1 | ||
| CHOKE PIPE | 4 | 32032-4015 | 1 | OPTION | |
| NUT,LOCK,8MM | 5 | 92015-1124 | 3 | ||
| WASHER,PLAIN | 6 | 92022-298 | 2 | ||
| COLLAR,FUEL TANK FITT | 7 | 92027-1134 | 2 | ||
| CLAMP,MUFFLER | 8 | 92037-177 | 2 | ||
| "0" RING,55MM,MUFFLER | 9 | 92055-1057 | 1 | ||
| DAMPER,MUFFLER FITING | 10 | 92075-1060 | 1 | ||
| DAMPER,MUFFLER | 11 | 92075-1196 | 2 | ||
| SPRING-CONNECTOR | 12 | 18071-003 | 2 | ||
| DUST SHIELD,MUFFLER | 13 | 92093-1014 | 1 | ||
| BOLT-SMALL-UPSET 8X25 | 14 | 115G0825 | 1 | ||
| BOLT,FLANGED,8X30 | 15 | 130G0830 | 2 | ||
| WASHER PLAIN 8MM | 16 | 410B0800 | 1 | ||
| WASHER SPRING 8MM | 17 | 461F0800 | 1 |
