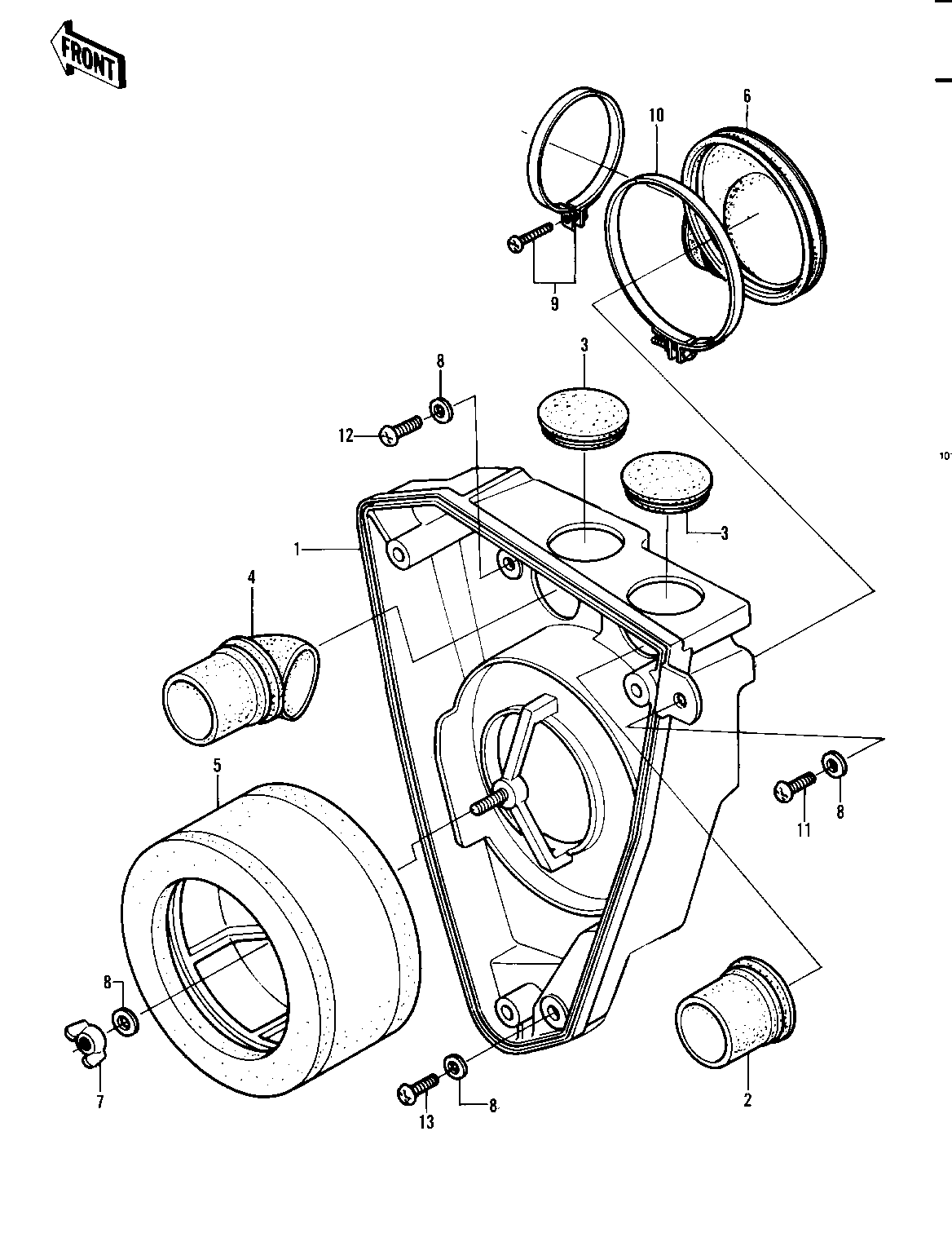

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE AIR FILTER 1 11011-1082 1
CAP,AIR CLEANER 2 11012-1109 1
CAP,AIR CLEANER 3 11012-1111 2
CAP,AIR CLEANER 4 11012-1123 1
ELEMENT,AIR CLNR 5 11013-1036 1
DUCT,AIR CLEANER 6 14073-1038 1
NUT,AIR CLEANER CAP 7 92016-062 1
WASHER 6.5X20X1.6T 8 92022-125 4
CLAMP-AIR CLEANER 9 92037-068 1
CLAMP,AIR CLANER DUCT 10 92037-1186 1
SCREW PAN HEAD 6X12 11 220B0612 1
SCREW PAN HEAD 6X18 12 220B0618 1
SCREW PAN HEAD 6X22 13 220B0622 1
