Part Item Information

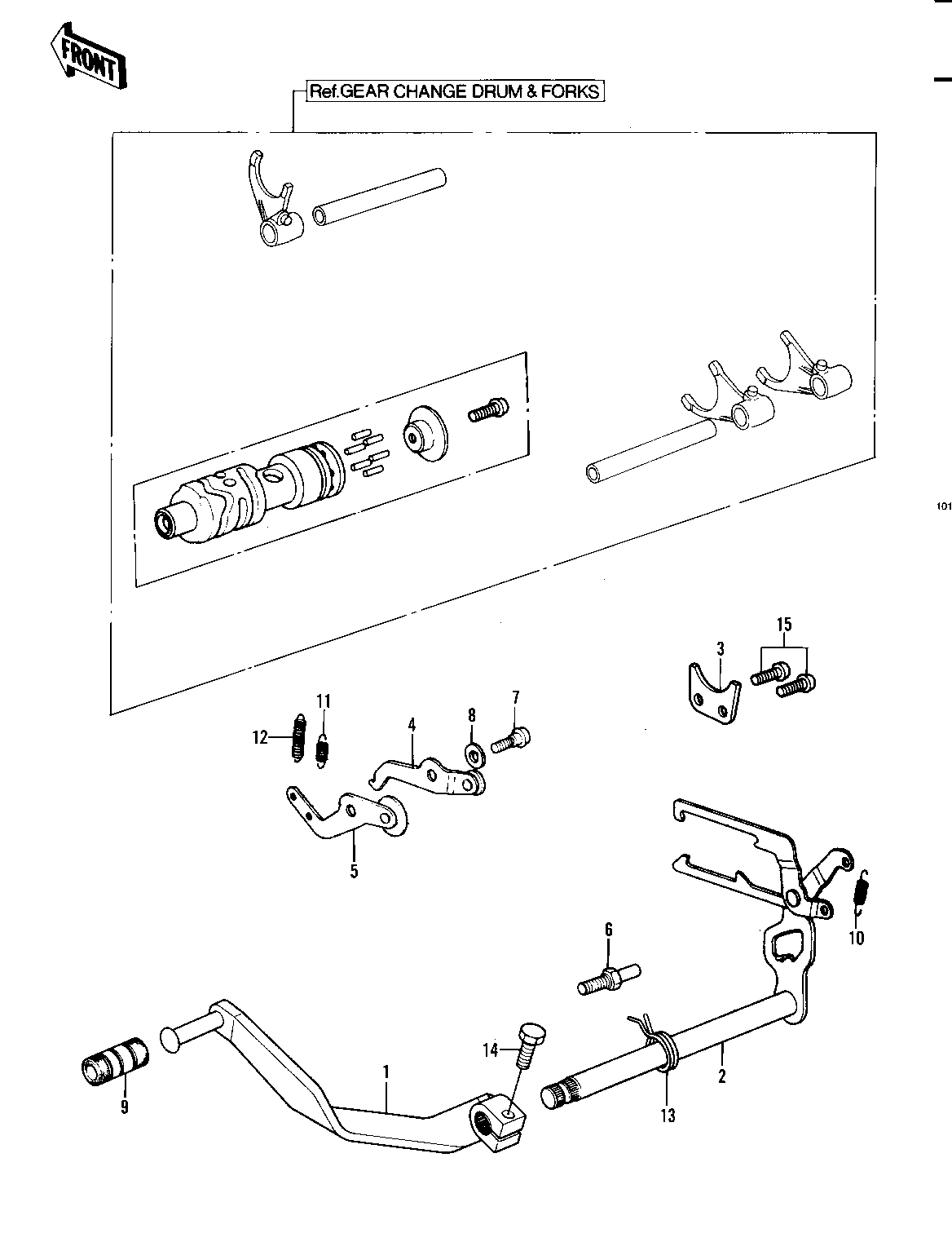

ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-CHANGE 1 13156-1075 1
LEVER ASSY,GEAR CHANG 2 13161-1012 1
PLATE,CHANGE DRUM 3 13169-1267 1
LEVER ASSY,GEAR CHANG 4 13236-007 1
LEVER, GEAR SET 5 13236-1013 1
BOLT,RETURN SPRING 6 92001-1401 1
SCREW-PAN HEAD 7 92011-023 1
WASHER 8 92022-1215 1
DAMPER,CHANGE PEDAL 9 92160-1108 1
SPRING-CHANGE LEVER 10 92081-076 1
SPRING-COIL 11 92081-077 1
SPRING 12 92081-119 1
SPRING,CHG PEDL RTRN 13 92083-028 1
BOLT-UPSET,6X20 14 112G0620 1
