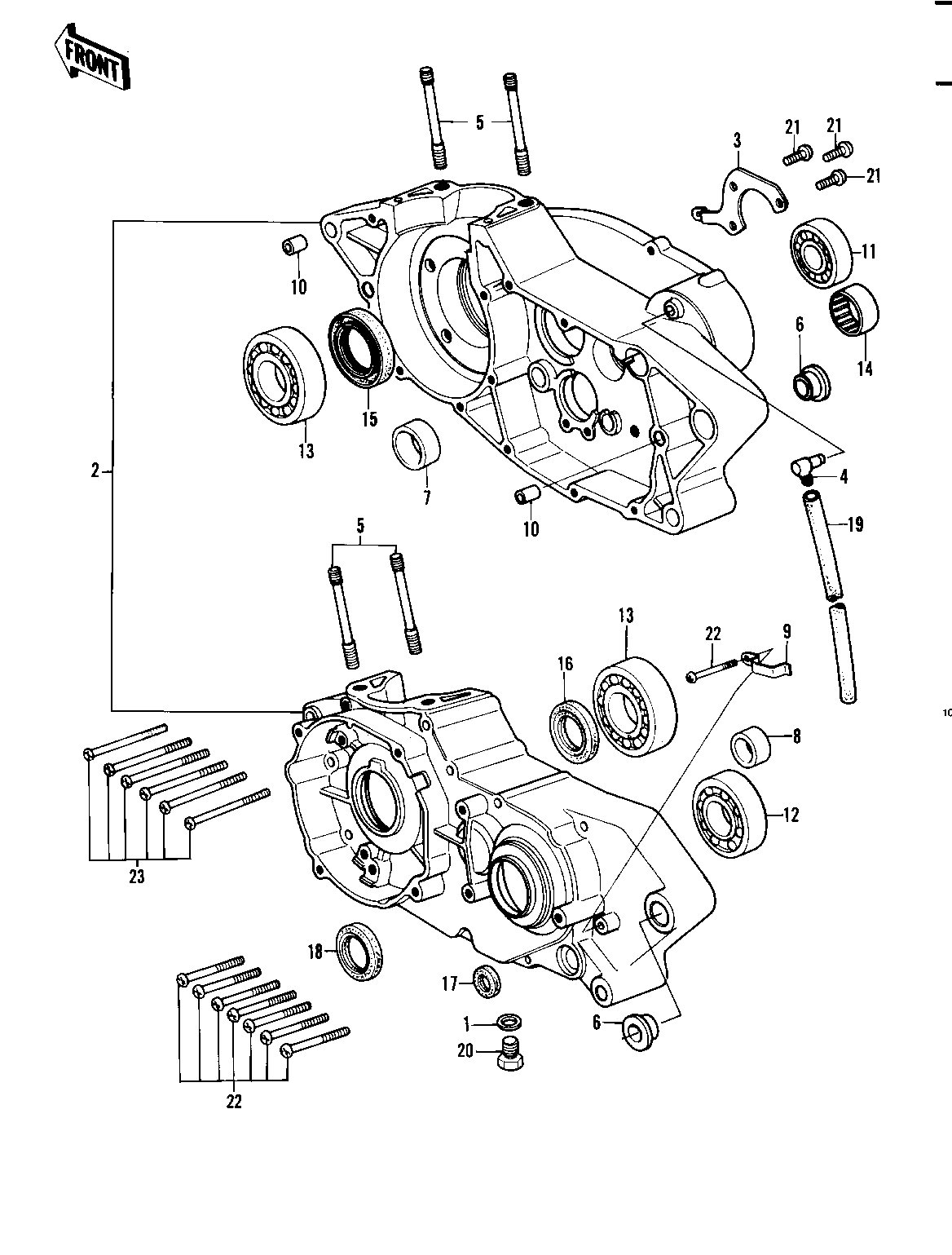

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET CHECK VALVE | 1 | 92065-058 | 1 | ||
| SET-CRANKCASE | 2 | 14001-5106 | 1 | ||
| PLATE,POSITION,DRIVE | 3 | 14014-1012 | 1 | ||
| BREATHER | 4 | 14069-003 | 1 | ||
| STUD,10X72 | 5 | 92004-1023 | 4 | ||
| BUSHING,CASE PIVOT | 6 | 92028-1123 | 2 | ||
| BUSHING | 7 | 92028-131 | 1 | ||
| BUSHING | 8 | 92028-132 | 1 | ||
| CLAMP | 9 | 92037-1073 | 1 | ||
| PIN,DOWEL,10X8.2X14 | 10 | 92043-1037 | 2 | ||
| BEARING,BALL | 11 | 92045-1006 | 1 | ||
| BEARING,BALL,#6305 | 12 | 92045-1011 | 1 | ||
| BEARING,B,6306SH2-9TC | 13 | 92045-1027 | 2 | ||
| BEARING,NEEDLE,344012 | 14 | 92046-040 | 1 | ||
| OIL SEAL,ACJ386210 | 15 | 92049-1046 | 1 | ||
| OIL SEAL,TB30508 | 16 | 92050-057 | 1 | ||
| OIL SEAL,CHANGE SHAFT | 17 | 92050-082 | 1 | ||
| SEAL-OIL,TC32457 | 18 | 92049-1159 | 1 | ||
| TUBE,6X9X500 | 19 | 92059-1125 | 1 | ||
| PLUG OIL DRAIN | 20 | 92067-001 | 1 | ||
| SCREW PAN HEAD 6X14 | 21 | 220B0614 | 3 | ||
| SCREW PAN HEAD 6X50 | 22 | 220B0650 | 8 | ||
| SCREW PAN HEAD 6X70 | 23 | 220B0670 | 6 |
