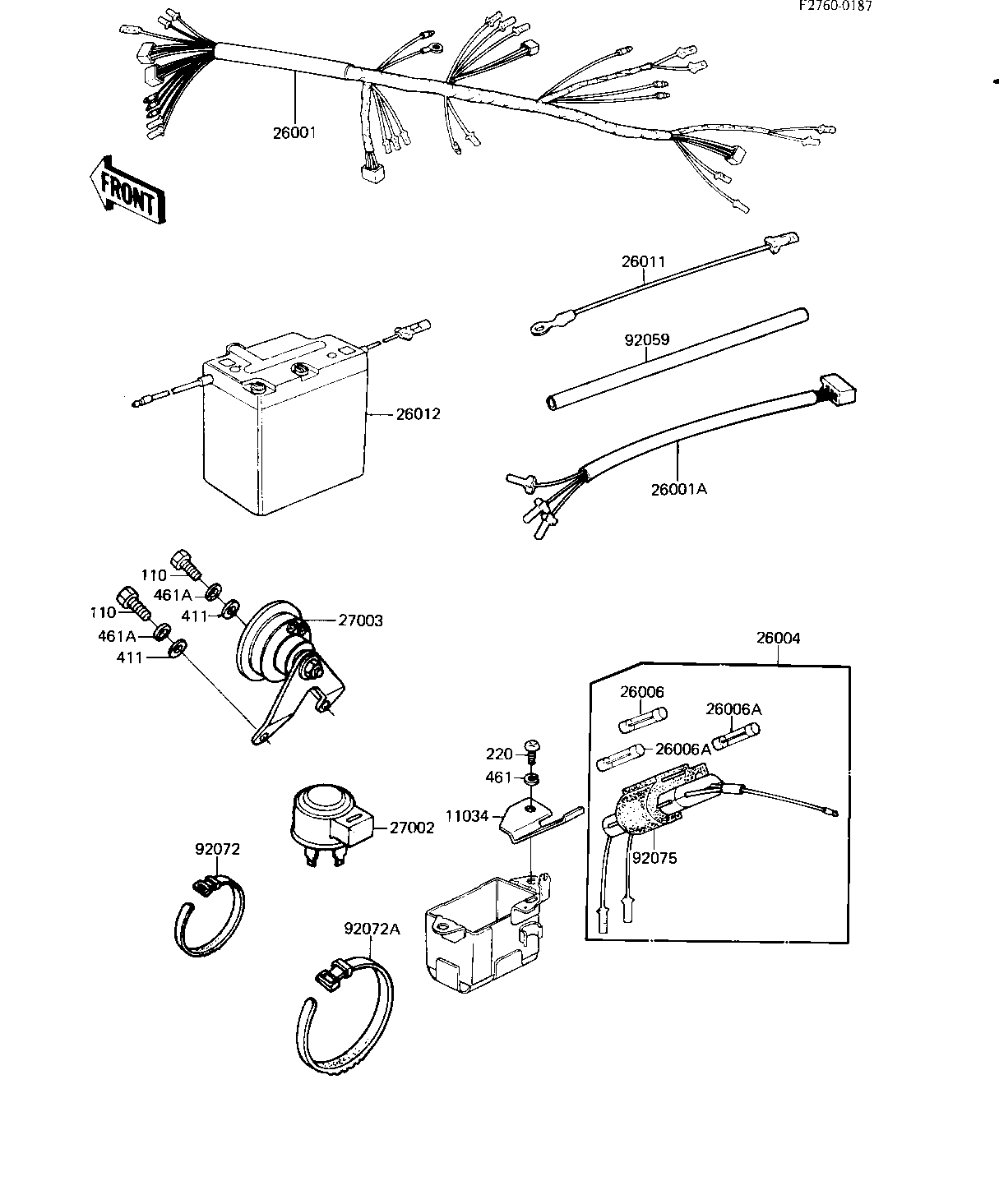

1983 KE125 - CHASSIS ELECTRICAL EQUIPMENT ('82-'83 A9
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,FUSE | 11034 | 11034-1368 | 1 | ||
| HARNESS,MAIN | 26001 | 26001-1225 | 1 | ||
| WIRING HARNESS,TL LMP | 26001A | 26002-046 | 1 | ||
| FUSE ASSY | 26004 | 26004-1010 | 1 | ||
| FUSE,10A,L=30M/M | 26006 | 26006-1002 | 1 | ||
| FUSE,15A,L=30M/M | 26006A | 26006-1003 | 2 | ||
| WIRE,LEAD | 26011 | 26011-093 | 1 | ||
| YUA BAT 6N6-1D-2 | 26012 | K26012-034 | 1 | ||
| RELAY-TURN SIGNAL | 27002 | 27002-013 | 1 | ||
| HORN | 27003 | 27003-1008 | 1 | ||
| TUBE,6X7X380 | 92059 | 92059-1143 | 2 | ||
| BAND,SHORT | 92072 | 92072-030 | 6 | ||
| BAND,LONG | 92072A | 92072-032 | 3 | ||
| DAMPER RUBBER | 92075 | 92075-1044 | 1 | ||
| BOLT-UPSET,6X16 | 110 | 112G0616 | 2 | ||
| SCREW PAN HEAD 5X10 | 220 | 220B0510 | 1 | ||
| WASHER PLAIN 6MM | 411 | 411B0600 | 2 | ||
| WASHER SPRING 5MM | 461 | 461F0500 | 1 | ||
| WASHER SPRING 6MM | 461A | 461F0600 | 2 |
| BRACKET,FUSE | |
| REF # | 11034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HARNESS,MAIN | |
| REF # | 26001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRING HARNESS,TL LMP | |
| REF # | 26001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE ASSY | |
| REF # | 26004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE,10A,L=30M/M | |
| REF # | 26006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE,15A,L=30M/M | |
| REF # | 26006A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WIRE,LEAD | |
| REF # | 26011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| YUA BAT 6N6-1D-2 | |
| REF # | 26012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RELAY-TURN SIGNAL | |
| REF # | 27002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HORN | |
| REF # | 27003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,6X7X380 | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND,SHORT | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BAND,LONG | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X16 | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 5X10 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 5MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 461A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
