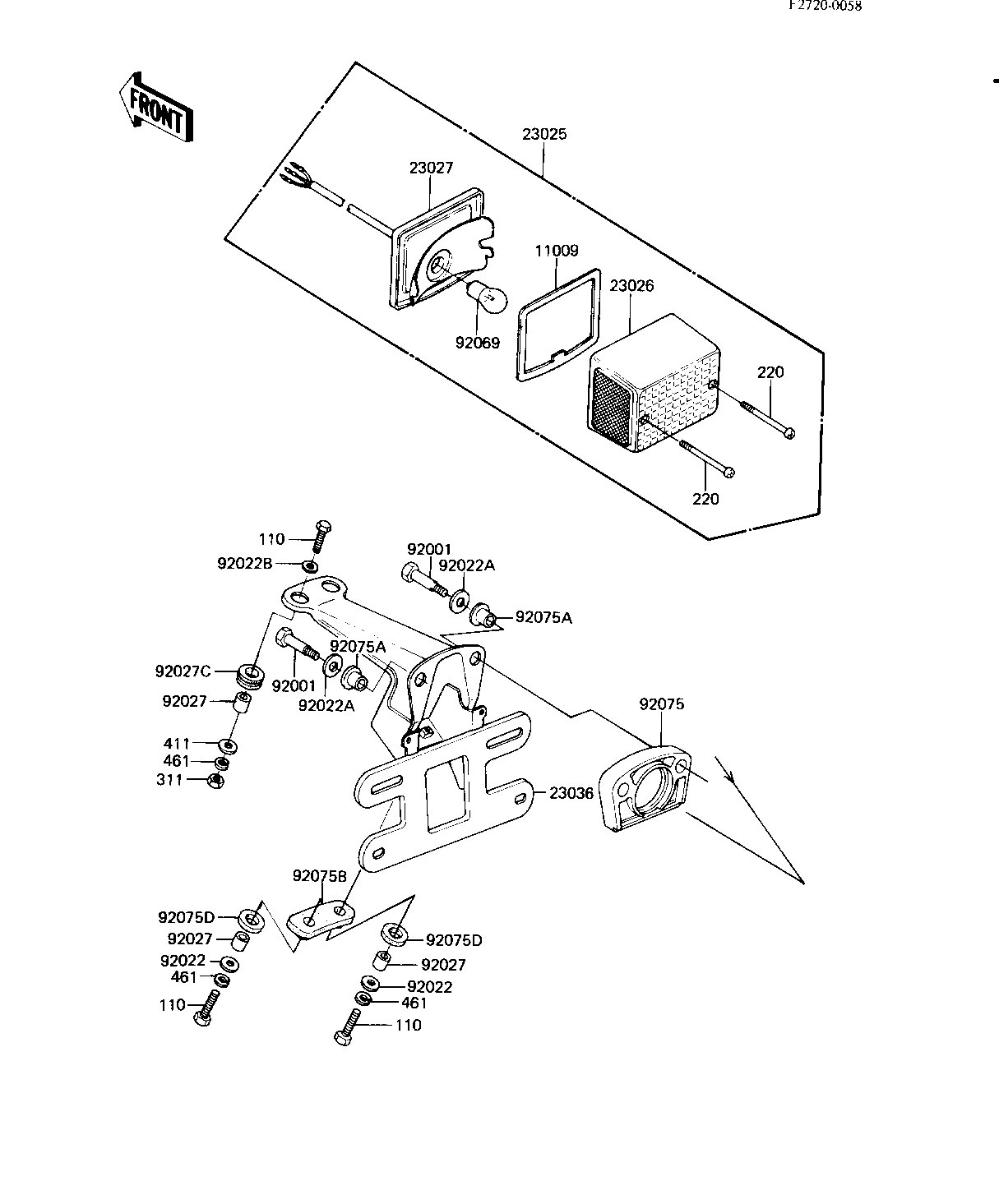

1983 KE125 - TAILLIGHT ('82-'83 A9/A10)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,TAIL LAMP LENS | 11009 | 11009-1078 | 1 | ||
| LAMP-TAIL | 23025 | 23025-1032 | 1 | ||
| LENS,TAIL LAMP | 23026 | 23026-1003 | 1 | ||
| CASE,TAIL LAMP | 23027 | 23027-1020 | 1 | ||
| BRACKET-TAIL LAMP | 23036 | 23036-1038 | 1 | ||
| BOLT,HEX HEAD | 92001 | 92001-1118 | 2 | ||
| WASHER 6.5X20X1.6T | 92022 | 92022-125 | 2 | ||
| WASHER,8.5X20X1.6 | 92022A | 92022-1561 | 2 | ||
| WASHER 6.5X22X1.6T | 92022B | 92022-237 | 2 | ||
| COLLAR,REAR FENDER | 92027 | 92027-162 | 4 | ||
| BULB,60-32/3CP | 92069 | 92069-074 | 1 | ||
| DAMPER RUBBER,TL LAMP | 92075 | 92075-1094 | 1 | ||
| DAMPER RUBBER | 92075A | 92075-1095 | 2 | ||
| DAMPER,RR FENDER | 92075B | 92075-1305 | 1 | ||
| DAMPER RUBBER,RR FENR | 92075C | 92075-209 | 2 | ||
| DAMPER RUBBER,SIGNAL | 92075D | 92075-310 | 2 | ||
| BOLT-UPSET | 110 | 112G0625 | 4 | ||
| SCREW-PAN-CROS,4X40 | 220 | 220R0440 | 2 | ||
| NUT 6MM | 311 | 311B0600 | 2 | ||
| WASHER PLAIN 6MM | 411 | 411B0600 | 2 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 4 |
| GASKET,TAIL LAMP LENS | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LAMP-TAIL | |
| REF # | 23025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LENS,TAIL LAMP | |
| REF # | 23026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE,TAIL LAMP | |
| REF # | 23027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-TAIL LAMP | |
| REF # | 23036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.5X20X1.6 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X22X1.6T | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,REAR FENDER | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BULB,60-32/3CP | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,TL LAMP | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,RR FENDER | |
| REF # | 92075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,RR FENR | |
| REF # | 92075C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,SIGNAL | |
| REF # | 92075D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,4X40 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT 6MM | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
