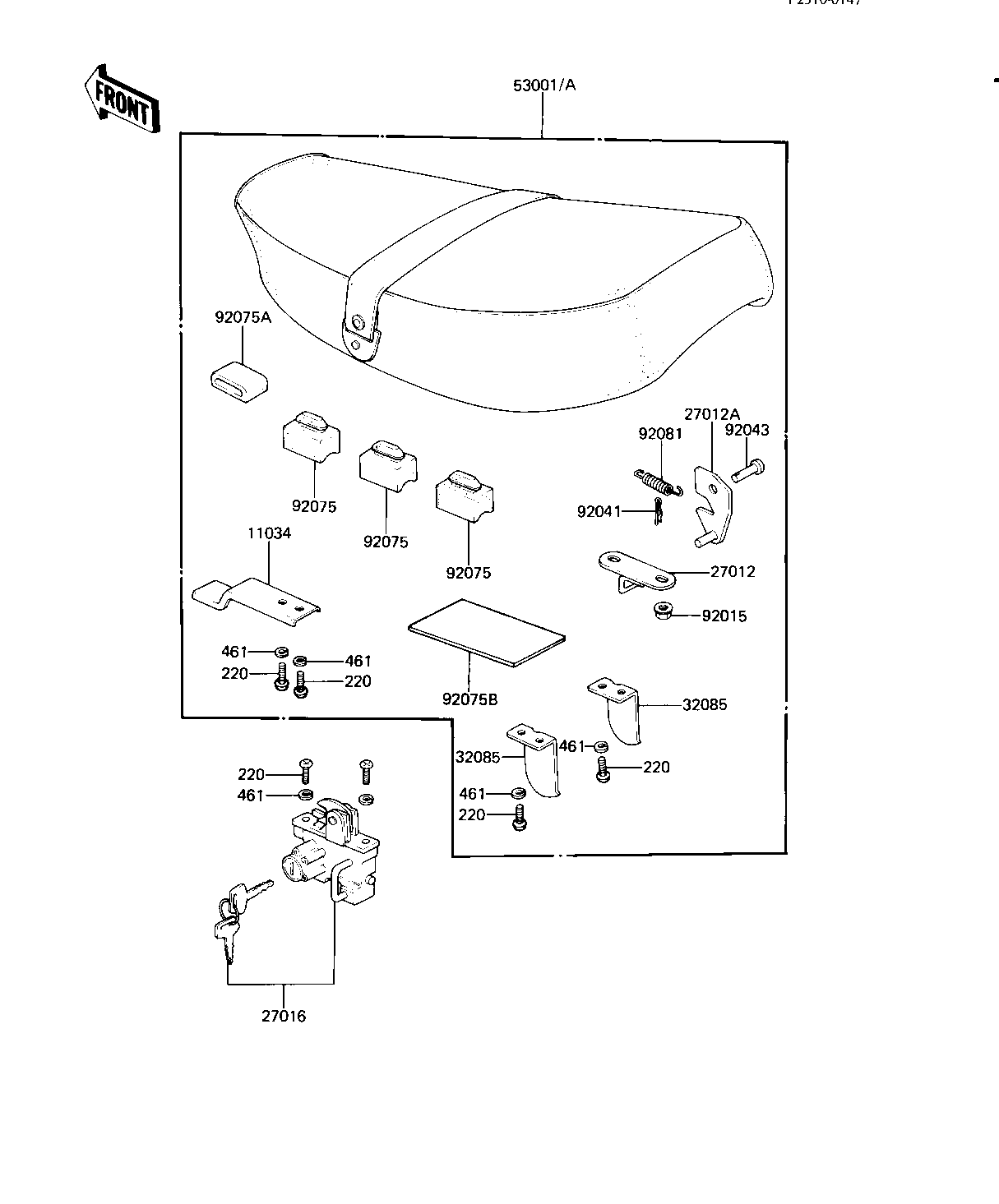

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,DUAL SEAT | 11034 | 53032-005 | 1 | ||
| HOOK,SEAT,LH | 27012 | 27012-1021 | 1 | ||
| HOOK,SEAT,R.H | 27012A | 53008-029 | 1 | ||
| LOCK-ASSY,SEAT | 27016 | 27016-5044 | 1 | ||
| STOPPER,SEAT | 32085 | 53059-001 | 2 | ||
| 53001-1374 (Canada) | 53001A | 53001-1247 | 1 | ||
| NUT-6MM | 92015 | 92015-1078 | 2 | ||
| COTTER PIN | 92041 | 92041-003 | 1 | ||
| PIN DUAL SEAT PIVOT | 92043 | 53011-001 | 1 | ||
| DAMPER RUBBER,SEAT | 92075 | 92075-216 | 6 | ||
| DAMPER RUBBER,SEAT | 92075A | 92075-219 | 1 | ||
| DAMPER RUBBER,BATERY | 92075B | 92075-224 | 1 | ||
| SPRING,HOOK | 92081 | 53012-013 | 1 | ||
| SCREW PAN HEAD 6X14 | 220 | 220B0614 | 8 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 8 |
