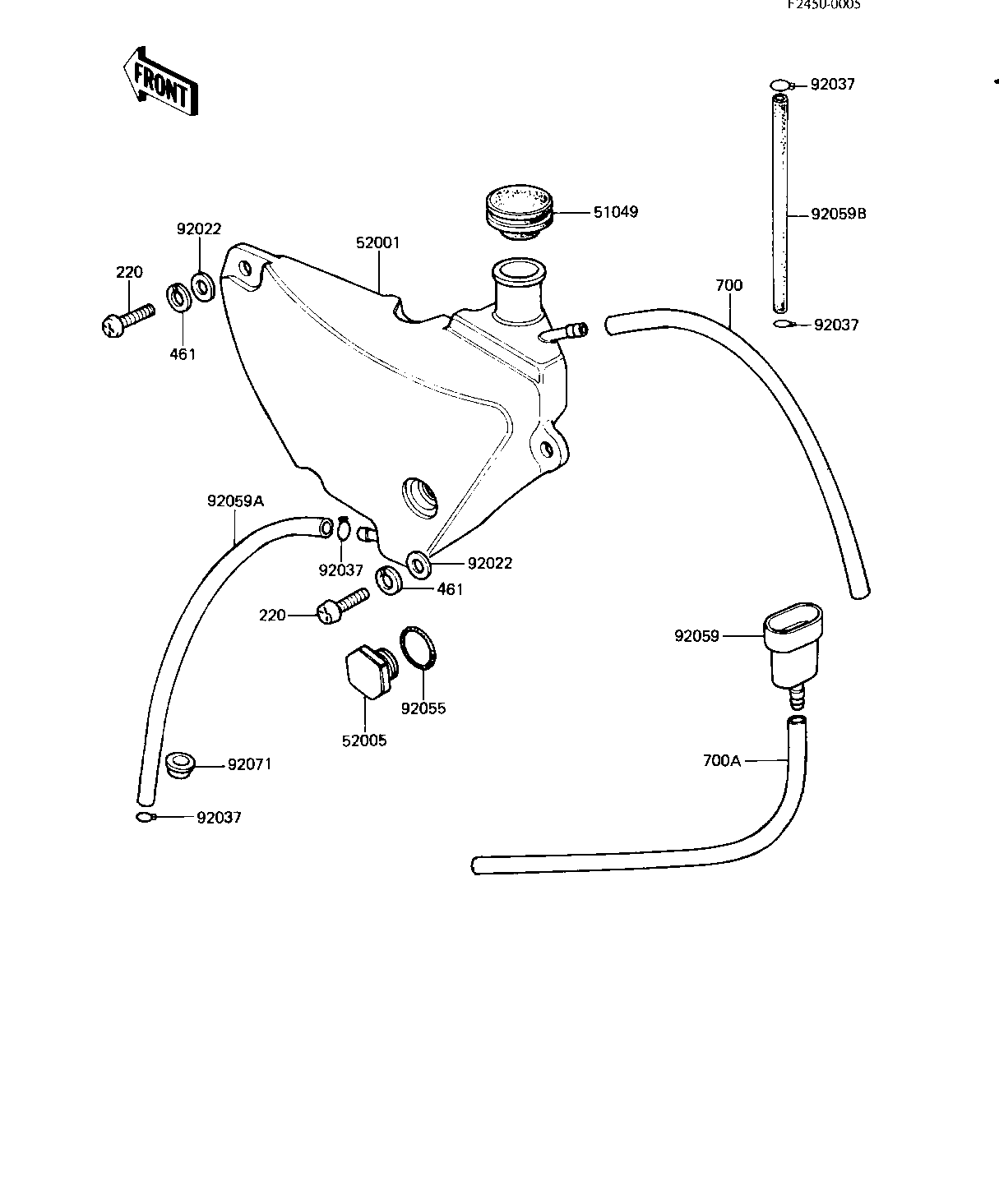

1983 KE125 - OIL TANK ('82-'83 A9/A10)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP-OIL TANK | 51049 | 51049-1004 | 1 | ||
| TANK,OIL | 52001 | 52001-041 | 1 | ||
| GUAGE-OIL LEVEL | 52005 | 52015-002 | 1 | ||
| WASHER 6.5X20X1.6T | 92022 | 92022-125 | 3 | ||
| CLAMP FUEL PIPE | 92037 | 92037-010 | 4 | ||
| "O" RING,20MM | 92055 | 92055-051 | 1 | ||
| CONNECTOR PIPE | 92059 | 92059-101 | 1 | ||
| PIPE,OIL | 92059A | 92059-106 | 1 | ||
| TUBE,BREATHER | 92059B | 92059-129 | 1 | ||
| GROMMET,OIL PIPE | 92071 | 92071-085 | 1 | ||
| SCREW PAN HEAD 6X14 | 220 | 220B0614 | 3 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 3 | ||
| TUBE-VINYL,5X400 | 700 | 700Q05400 | 1 | ||
| TUBE-PVC,7X450 | 700A | 700Q07450 | 1 |
