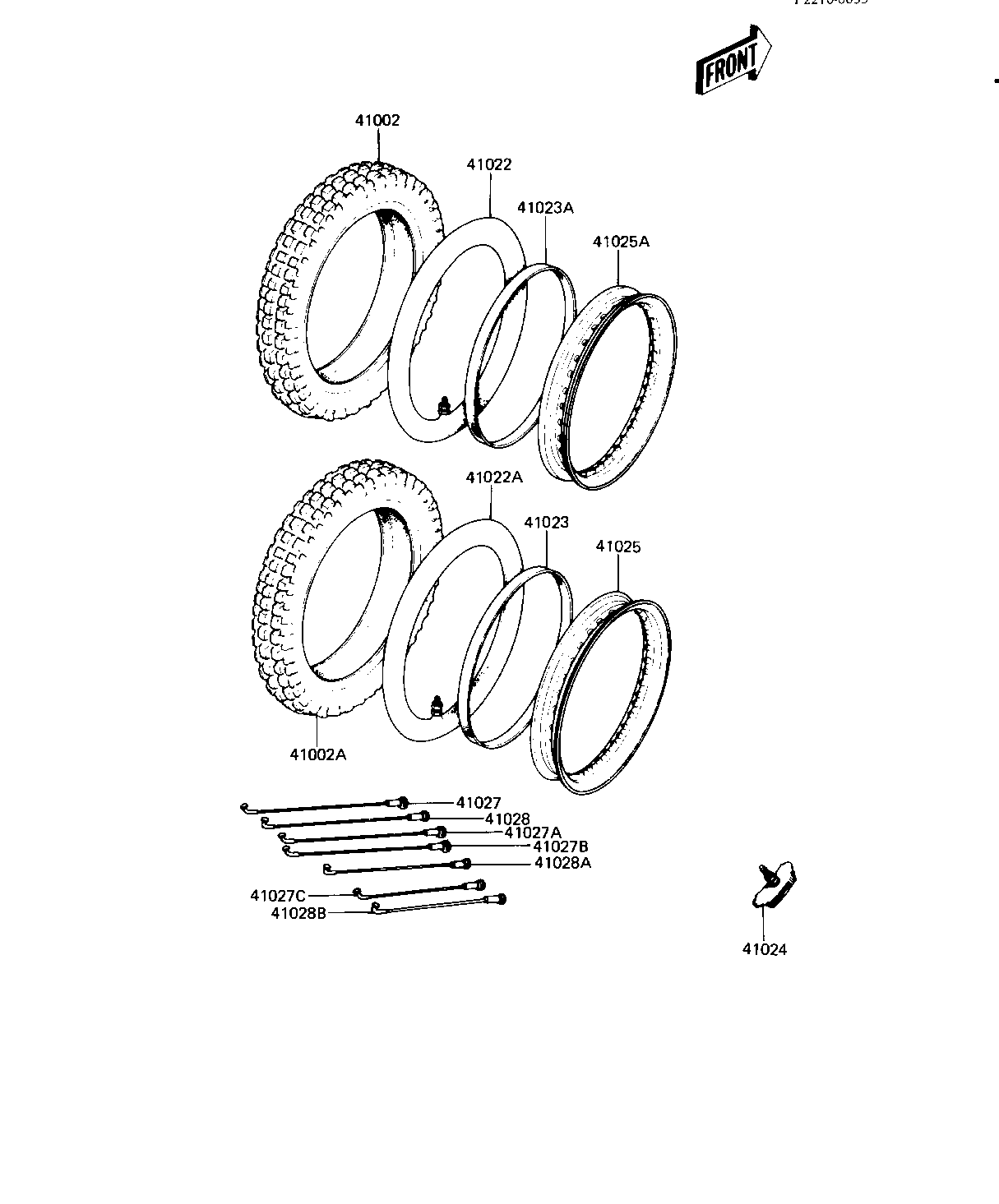

1983 KE125 - WHEELS/TIRES ('82-'83 A9/A10)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE 275-21 Y965 F | 41002 | 41002-1215 | 1 | ||
| TIRE 350-18 Y962 R | 41002A | 41002-1216 | 1 | ||
| TUBE,2.75/3.70-21 | 41022 | 41022-1021 | 1 | ||
| TUBE 350/375/410-18 | 41022A | 41022-031 | 1 | ||
| BAND RIM | 41023 | 41023-001 | 1 | ||
| BAND,RIM,3.00-21 | 41023A | 41023-1001 | 1 | ||
| PROTECTOR-BEAD 1.85B | 41024 | 41024-007 | 1 | ||
| RIM 1.85BX18W | 41025 | 41025-044 | 1 | ||
| RIM,1.60AX21 | 41025A | 41025-078 | 1 | ||
| SPOKE-ASY,FR INNER | 41027 | 41027-068 | 9 | ||
| SPOKE-ASY,FR | 41027A | 41027-069 | 18 | ||
| SPOKE-ASY,RR INNER L | 41027B | 41027-070 | 9 | ||
| SPOKE-ASY,RR INNER R | 41027C | 41027-071 | 9 | ||
| SPOKE-ASY FR OUTER | 41028 | 41028-068 | 9 | ||
| SPOKE-ASY RR OUTER L | 41028A | 41028-069 | 9 | ||
| SPOKE-ASY RR OUTER R | 41028B | 41028-070 | 9 |
