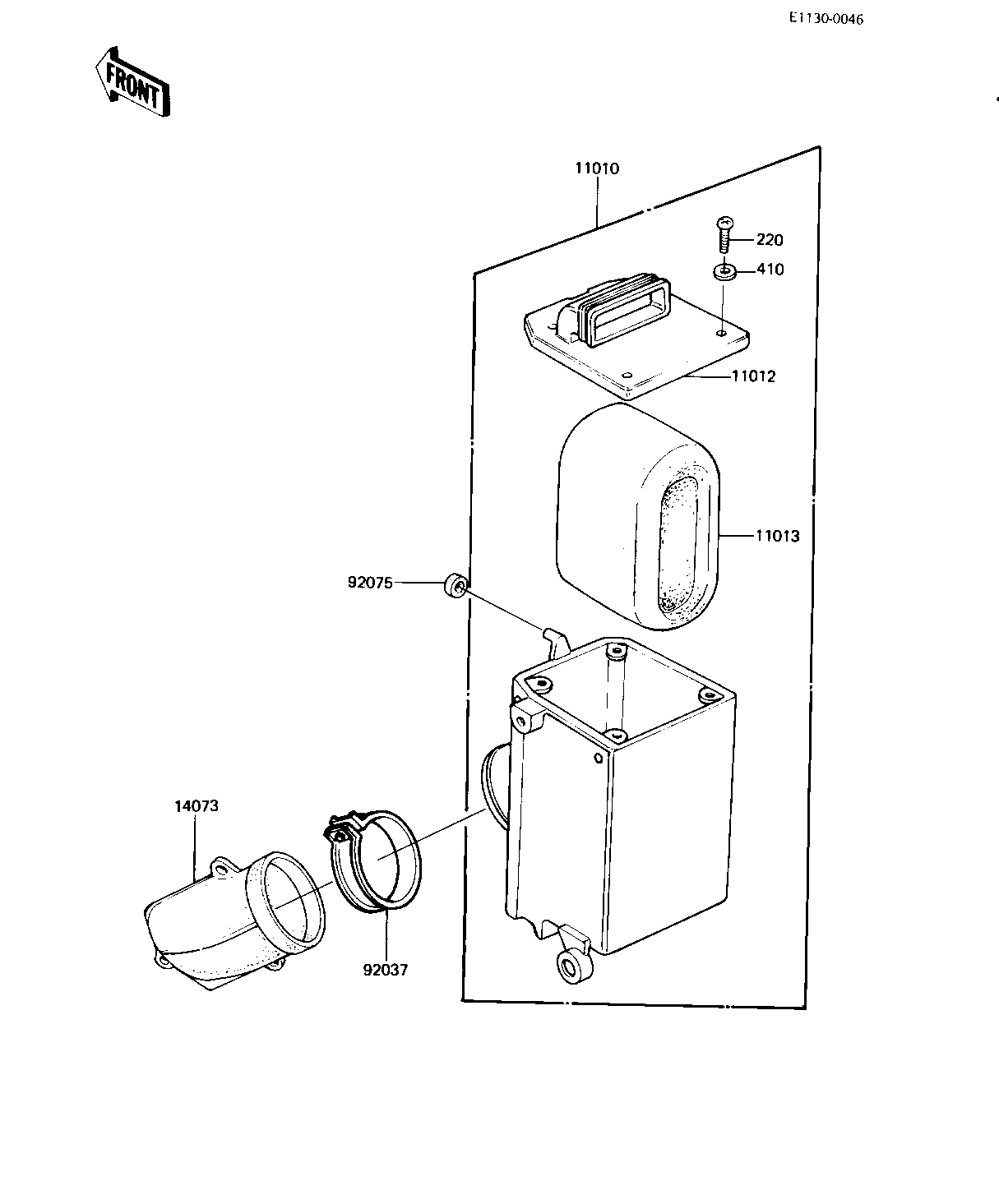

1983 KE125 - AIR CLEANER ('82-'83 A9/A10)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER-ASSY-AIR | 11010 | 11010-1126 | 1 | ||
| CAP,AIR FILTER | 11012 | 11012-1188 | 1 | ||
| ELEMENT,AIR CLNR | 11013 | 11013-1052 | 1 | ||
| CONNECTOR,AIR CLEANER | 14073 | 14073-1004 | 1 | ||
| CLAMP,AIR CLEANER | 92037 | 92037-129 | 1 | ||
| DAMPER RUBBER,CLENER | 92075 | 92075-217 | 1 | ||
| SCREW PAN HEAD 4X16 | 220 | 220B0416 | 4 | ||
| WASHER PLAIN 4MM | 410 | 410B0400 | 4 |
| FILTER-ASSY-AIR | |
| REF # | 11010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,AIR FILTER | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELEMENT,AIR CLNR | |
| REF # | 11013 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONNECTOR,AIR CLEANER | |
| REF # | 14073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,AIR CLEANER | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,CLENER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 4X16 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 4MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
