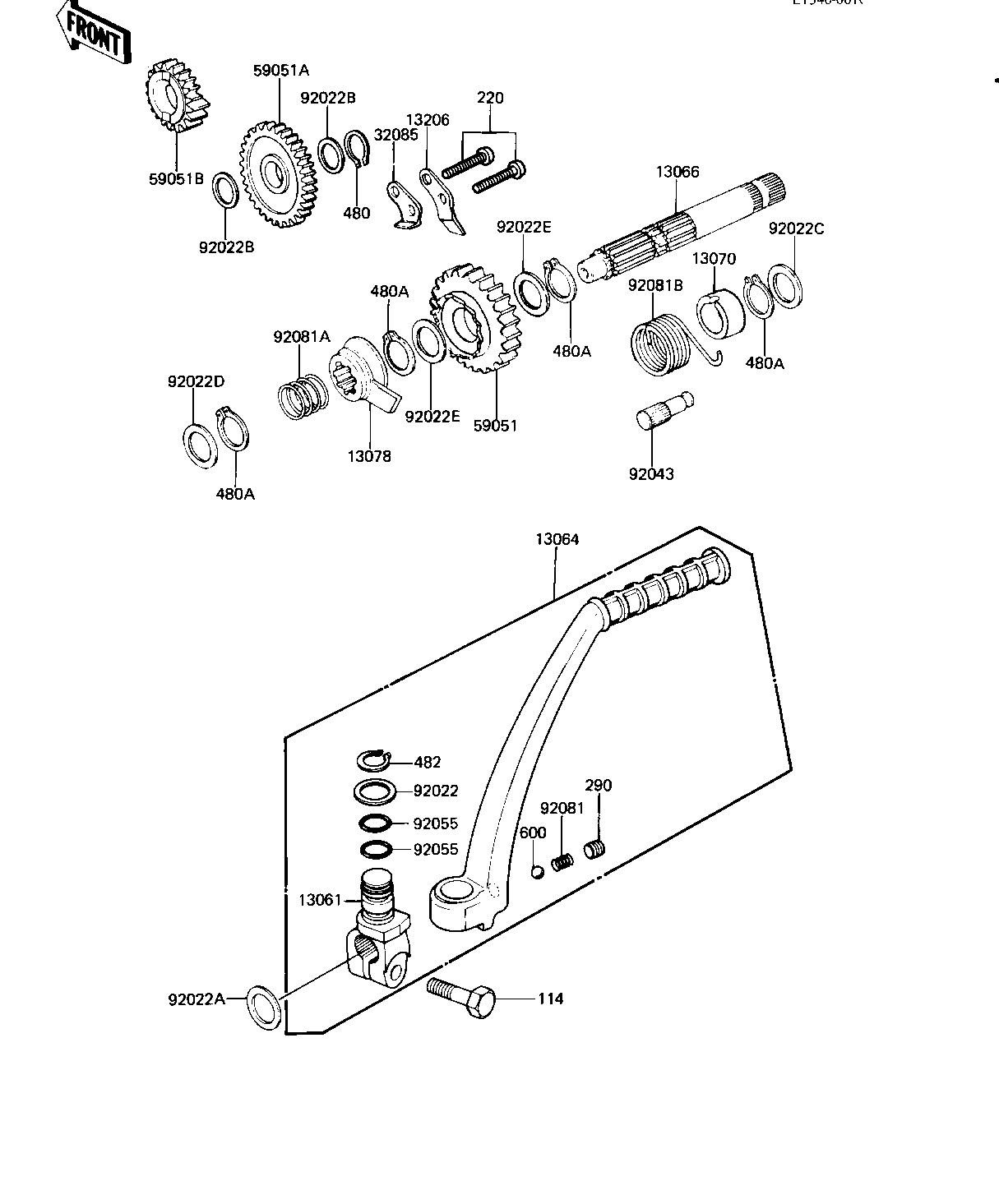

1983 KE125 - KICKSTARTER MECHANISM ('82-'83 A9/A10)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOSS,KICK PEDAL | 13061 | 13061-1045 | 1 | ||
| PEDAL ASSY,KICK | 13064 | 13064-1027 | 1 | ||
| SHAFT,KICKSTARTER | 13066 | 13066-1012 | 1 | ||
| GUIDE,KICKSPRING | 13070 | 13070-008 | 1 | ||
| RATCHET,KL250-D2 | 13078 | 13078-1052 | 1 | ||
| GUIDE,KICKSTARTER | 13206 | 13206-010 | 1 | ||
| STOPPER,KICKSTARTER | 32085 | 32085-1061 | 1 | ||
| GEAR,KICKSTARTER | 59051 | 13068-032 | 1 | ||
| IDLE GEAR,KICKSTARTER | 59051A | 13073-011 | 1 | ||
| PINION,KICKSTARTER | 59051B | 13075-010 | 1 | ||
| WASHER,PLAIN | 92022 | 92022-1019 | 1 | ||
| WASHER,16.3X24X1 | 92022A | 92022-1205 | 1 | ||
| WASHER,PLAIN | 92022B | 92022-267 | 2 | ||
| WASHER,PLAIN | 92022C | 92022-268 | 1 | ||
| WASHER,PLAIN | 92022D | 92022-269 | 1 | ||
| WASHER,PLAIN | 92022E | 92022-315 | 2 | ||
| PIN | 92043 | 92043-102 | 1 | ||
| "O" RING | 92055 | 92055-061 | 2 | ||
| SPRING KICK PEDAL | 92081 | 92081-020 | 1 | ||
| SPRING,RATCHET | 92081A | 92081-122 | 1 | ||
| SPRING,KICKSTARTER | 92081B | 92082-005 | 1 | ||
| BOLT-SMALL-UPSET 8X25 | 114 | 115G0825 | 1 | ||
| SCREW PAN HEAD 6X20 | 220 | 220B0620 | 1 | ||
| SCREW,8X8 | 290 | 290Q0808 | 1 | ||
| CIRCLIP,13MM | 480 | 480J1300 | 1 | ||
| CIRCLIP 16MM | 480A | 480J1600 | 4 | ||
| CIR CLIP | 482 | 482K0100 | 1 | ||
| BALL STEEL 1/4' | 600 | 600A0800 | 1 |
